Front Floor Console Front Compartment Replacement
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

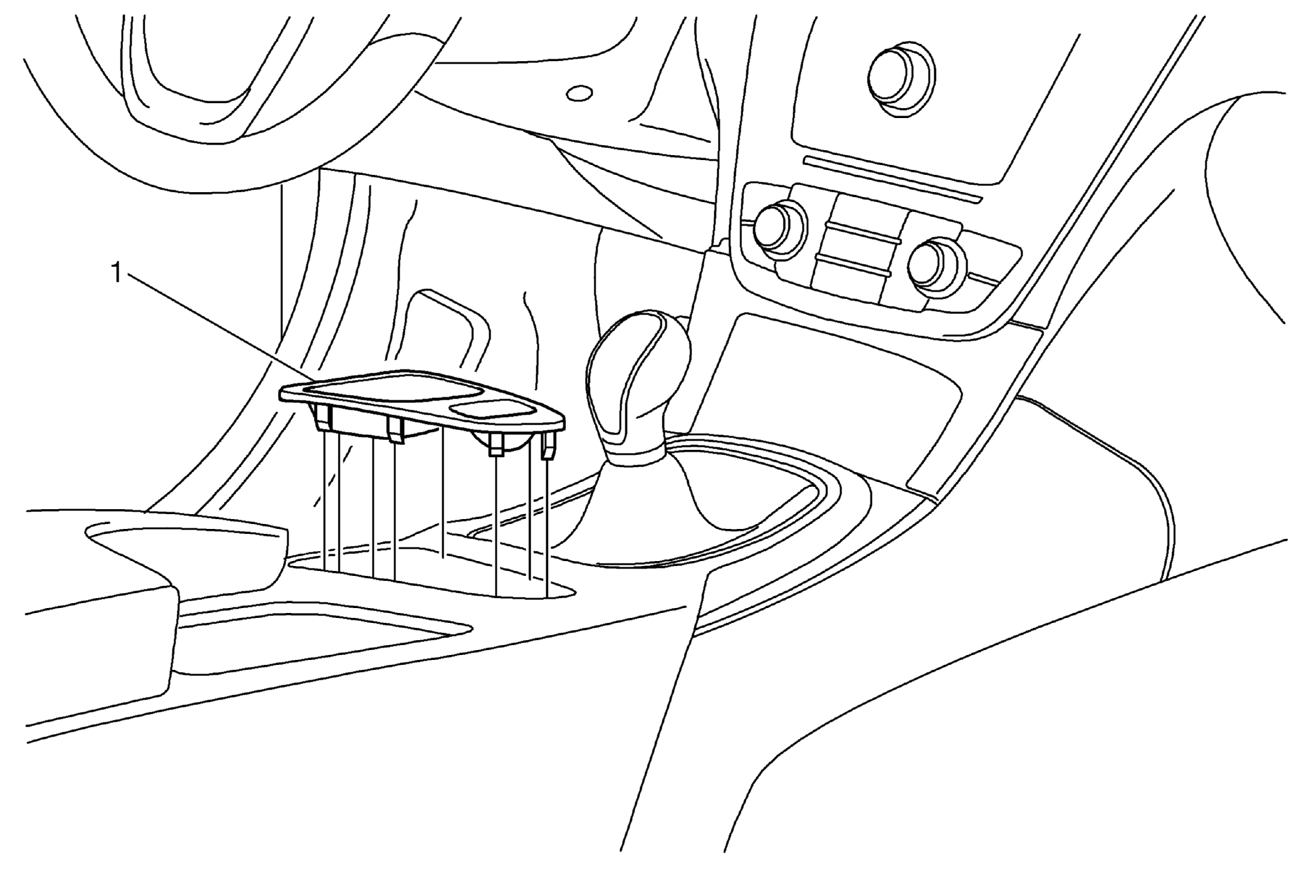

| Callout |
Component Name |
| 1 |
Front Floor Console Front Compartment
Tip:
Use a flat-bladed plastic trim tool in order to release the retaining clips securing the front floor console front compartment to the front floor console assembly. |
