Front Floor Flood Lamp Replacement
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

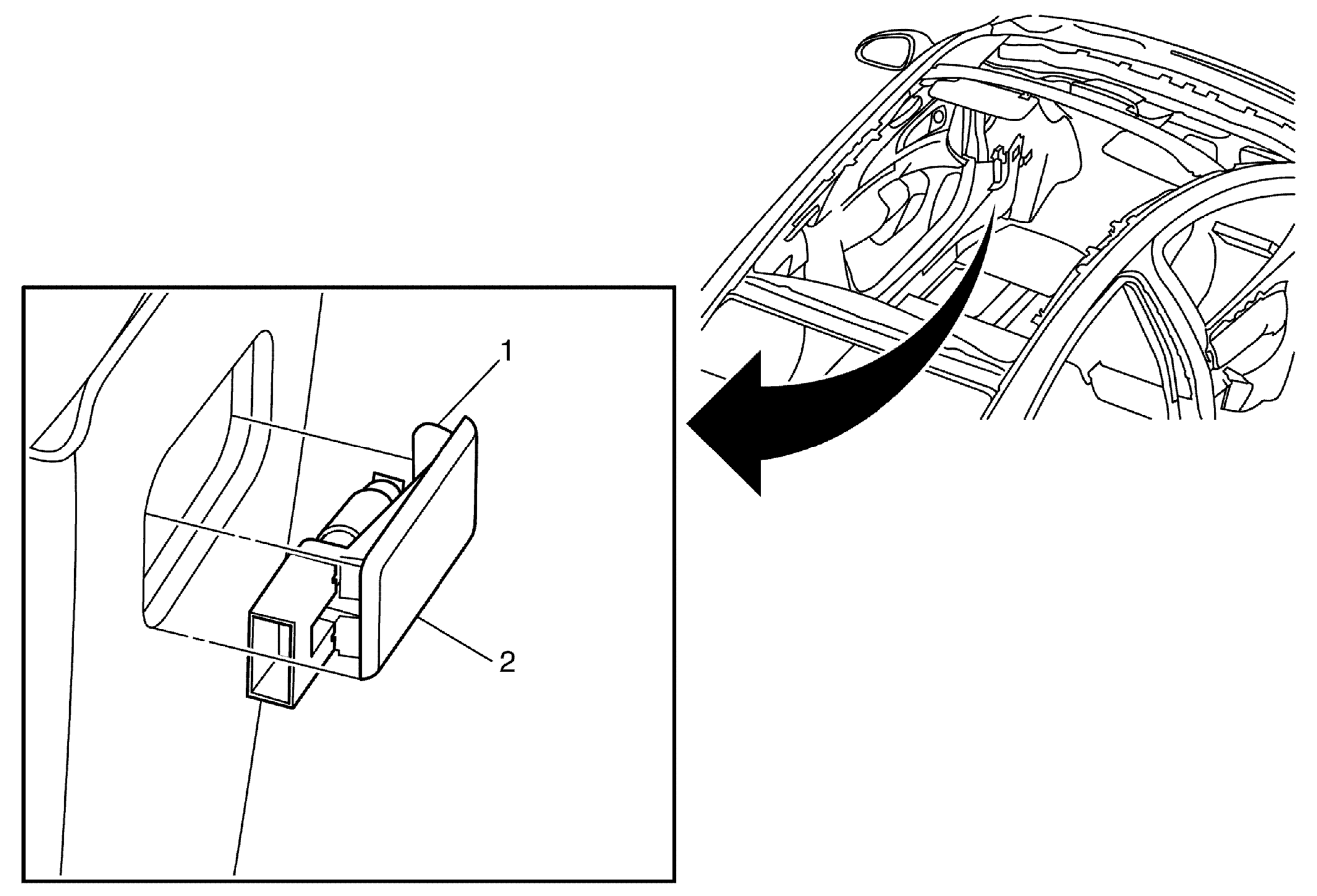

| Callout |
Component Name |
| 1 |
Front Floor Flood Lamp Retainer
Tip:
Use a small flat-bladed tool to pull the right side down out from the front and rear side door sill trim plate opening. |
| 2 |
Front Floor Flood Lamp
Procedure:
Disconnect the front floor flood lamp electrical connector. |
