Installation Procedure

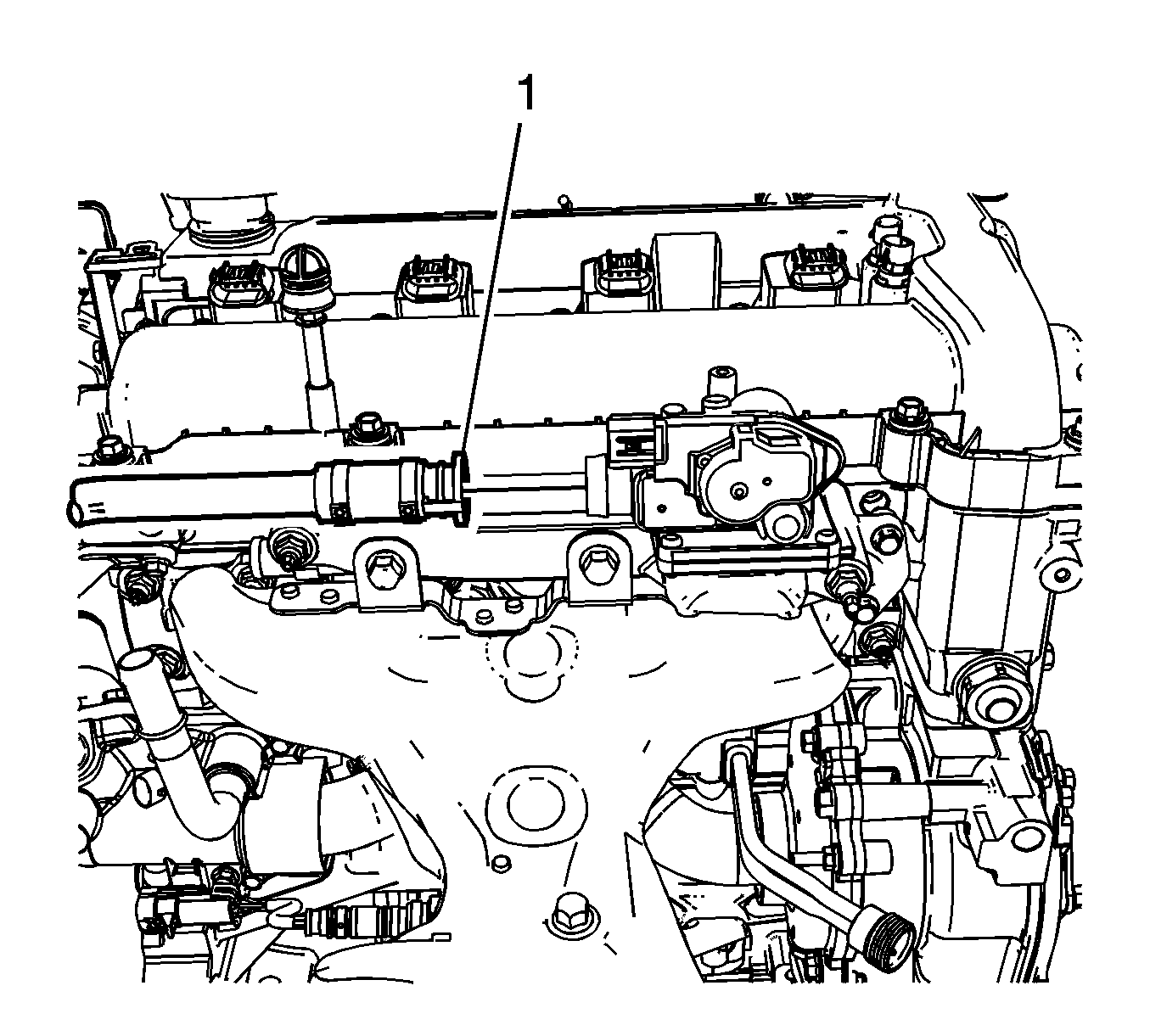

    Fig 1: Identifying Secondary Air Injection Pump Hose & Secondary Air Injection Check Valve
    GM2093739Courtesy of GENERAL MOTORS COMPANY
  1. Connect the secondary air injection pump hose (1) to the secondary air injection check valve.
  2. Install the secondary air injection pump hose to the vehicle.

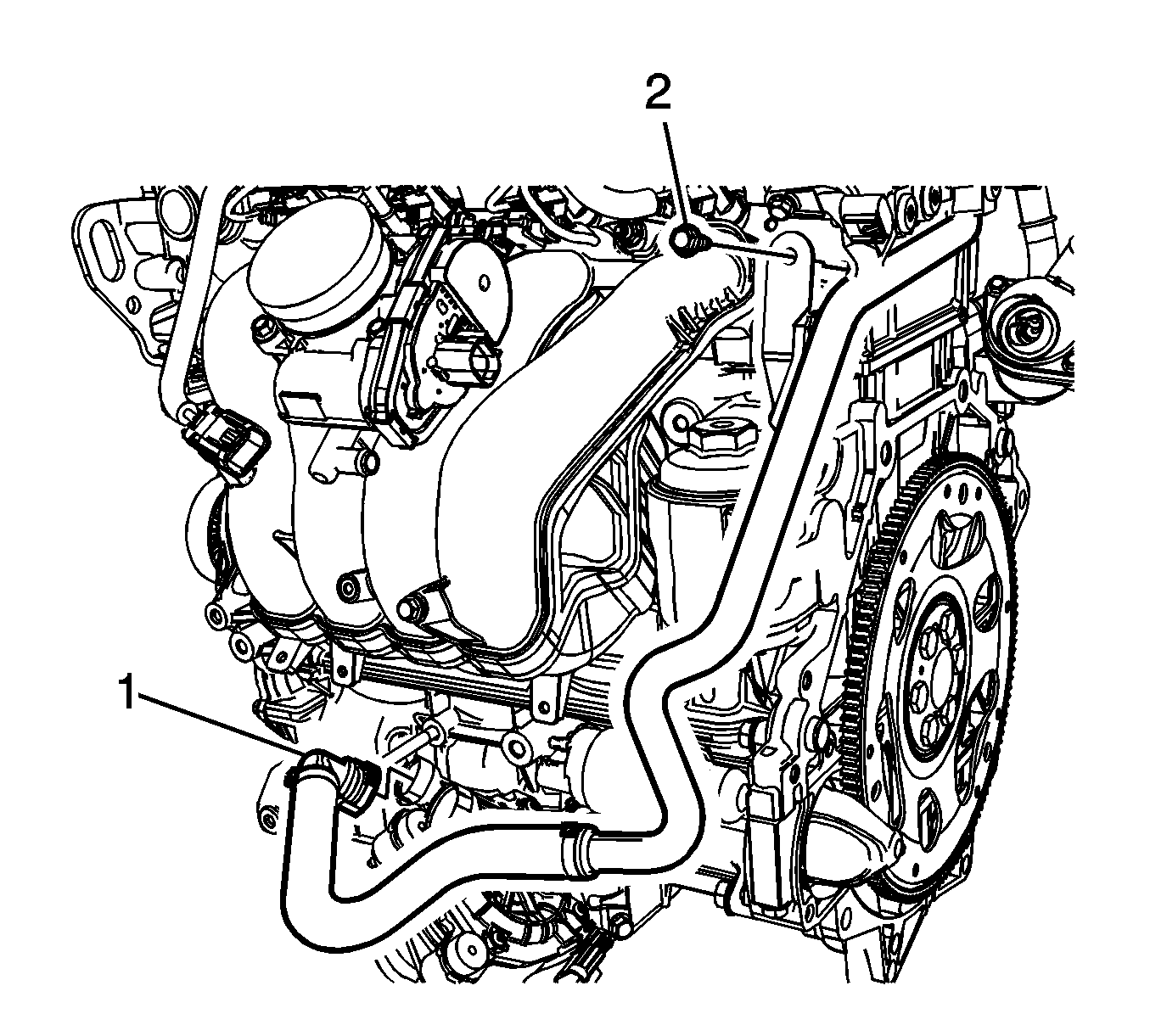

    3. Fig 2: Identifying Secondary Air Injection Pump Hose Replacement
    GM2093703Courtesy of GENERAL MOTORS COMPANY
  3. Connect the secondary air injection pump hose (1) to the secondary air injection pump.
