Secondary Air Injection Check Valve Pipe Replacement
Secondary Air Injection Check Valve Pipe Replacement

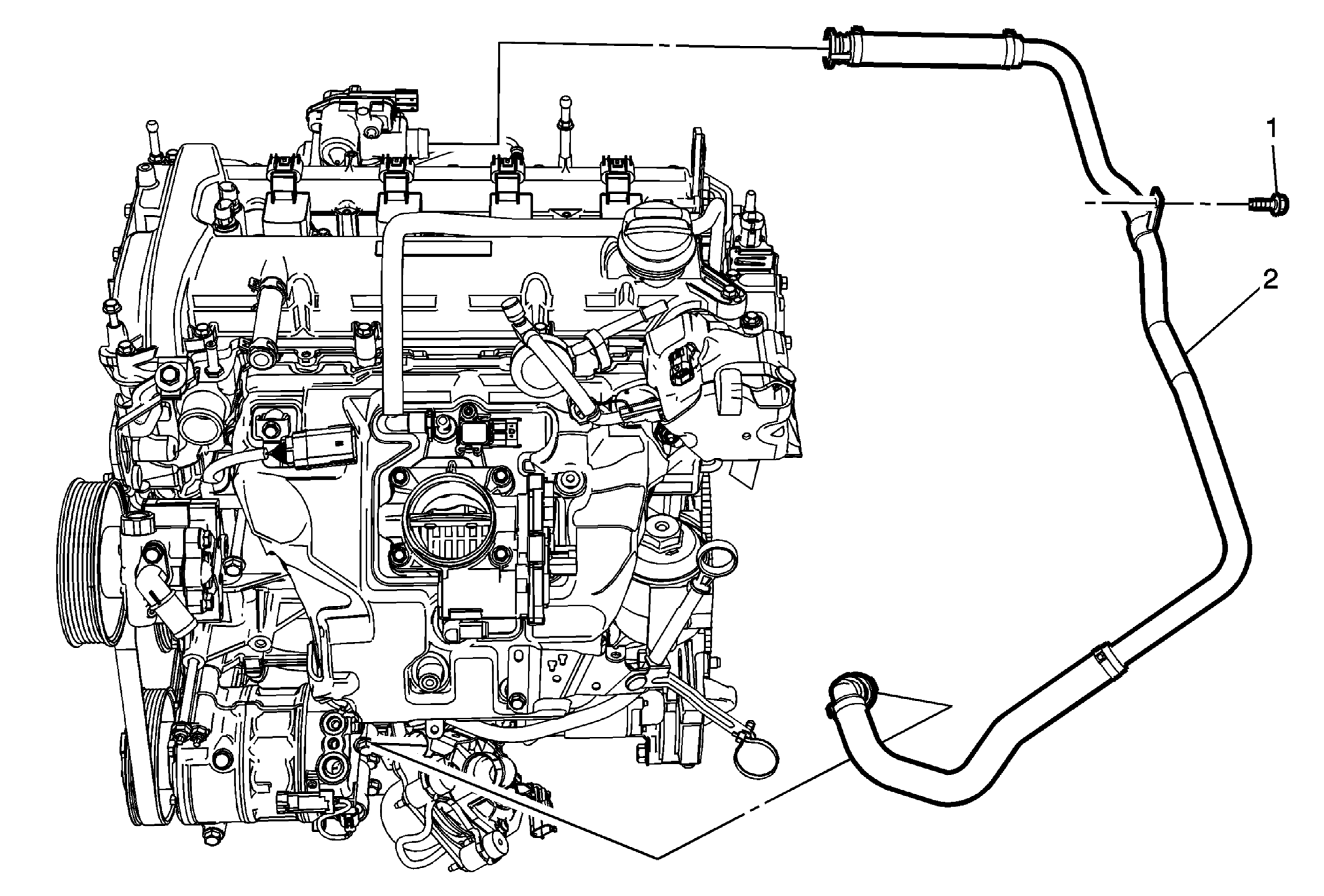

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . |
|
| 1 | Secondary Air Injection Check Valve Pipe Fastener
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m(16 lb ft). |
| 2 | Secondary Air Injection Check Valve Pipe Procedure Disconnect the quick connect fittings by squeezing both sides. |
