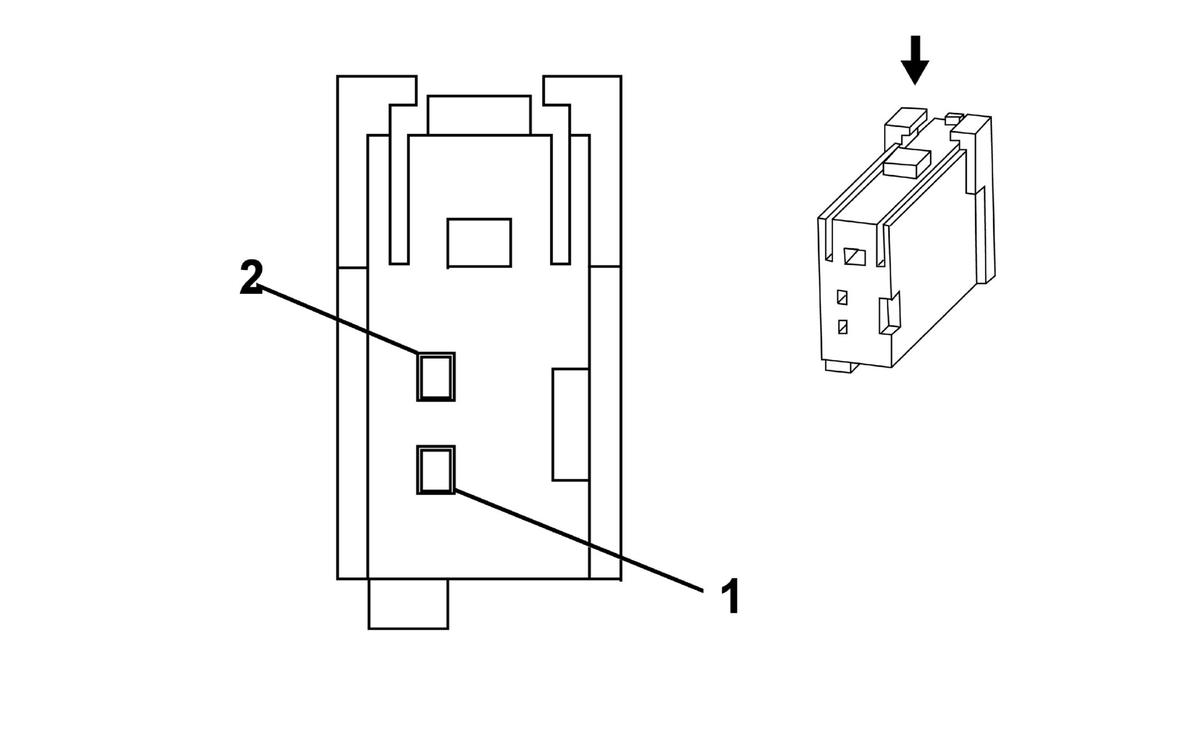

K46 Radio Antenna Module X1 CZ2
WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 13575867 | J-35616-64B (L-BU) | J-38125-215A |
K46 Radio Antenna Module X1 CZ2
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 | GN/YE | 7066 | Entertainment Remote Enable Signal | I | - |
