Generator Bracket Replacement (L4)

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

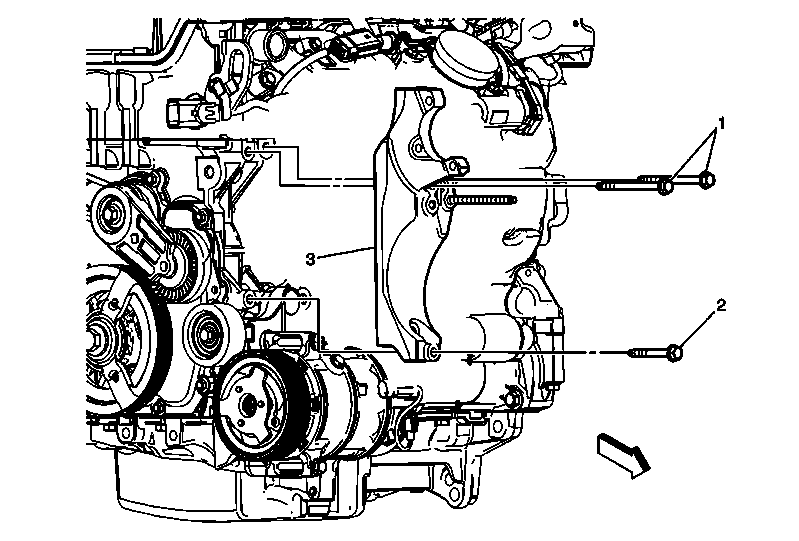

Fig 1: Generator Bracket (L4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the drive belt. Refer to Drive Belt Replacement Remove the power steering pump. Refer to Power Steering Pump Replacement (L4) .
1	Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure: Disconnect the generator electrical connector. Tighten: 22 N.m (16 lb ft)
2	Bolt (Qty: 1) Tighten: 22 N.m (16 lb ft)
3	Generator Bracket
