Battery Negative Cable Extension Cable Replacement (LAF)

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

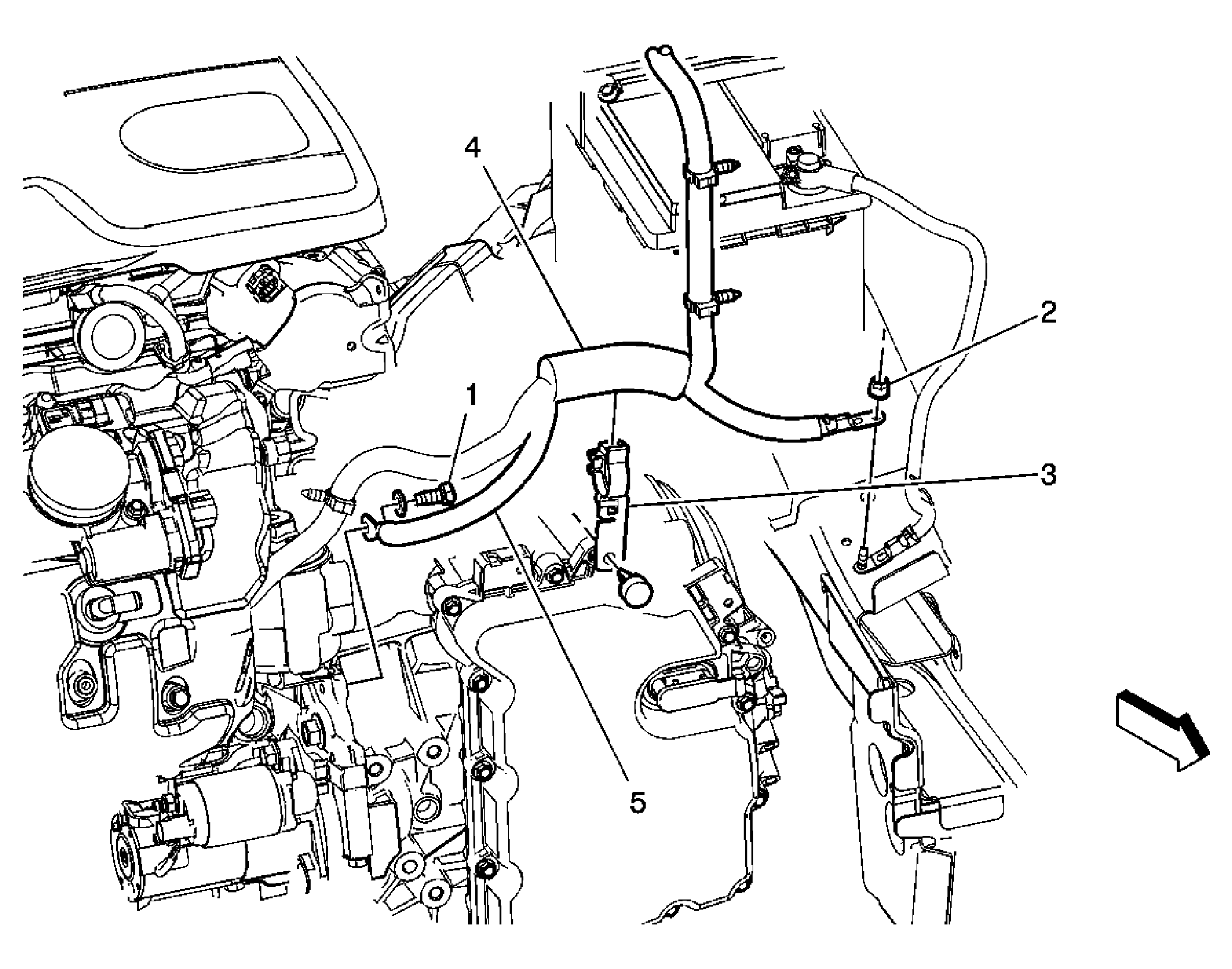

Fig 1: Battery Negative Cable Extension Cable (LAF)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
1	Engine Block Ground Bolt CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (18 lb ft).
2	Frame Ground Nut Tighten: 25 N.m (18 lb ft).
3	Battery Positive and Negative Cable Retainer Clip
4	Protective Insulation
5	Negative Battery Extension Cable Procedure Remove the positive and the negative cable from the retainer clip (3). Carefully cut the protective insulation (4) and separate the negative battery cable (5) from the battery positive cable.
