Sunroof Window Motor Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

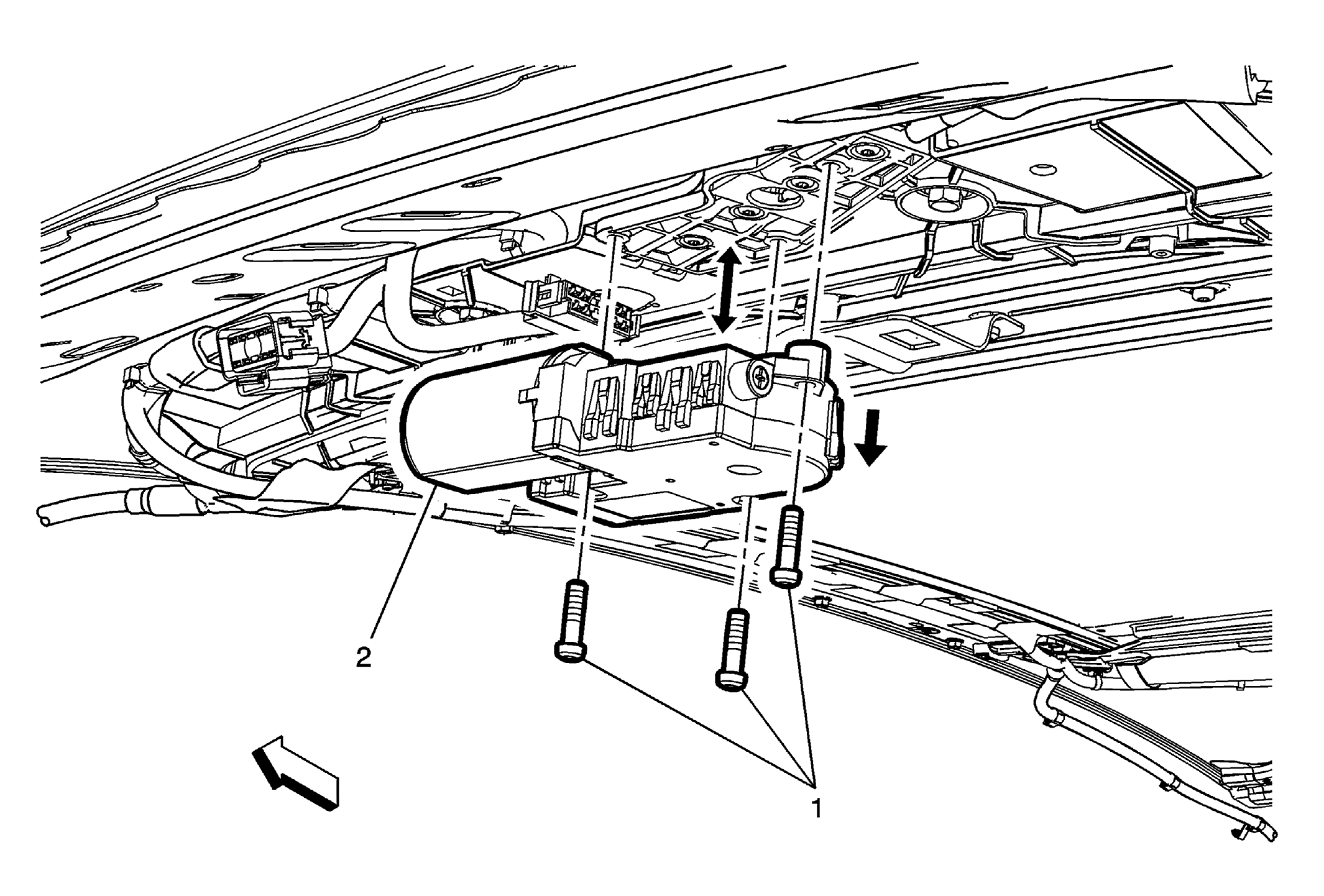

Fig 1: Sunroof Window Motor & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the roof console. Refer to Roof Console Replacement .
1	Sunroof Window Motor Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical wiring harness connector. Tighten 4 (35 lb in)
2	Sunroof Window Motor Procedure When replacing the sunroof motor, refer to Sunroof Motor/Actuator Initialization/Teach Process . Verify the operation of the sunroof before installing the headliner trim.

Callout

Component Name

Preliminary Procedure
Remove the roof console. Refer to Roof Console Replacement .

Sunroof Window Motor Fastener (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Procedure
Disconnect the electrical wiring harness connector.
Tighten
4 (35 lb in)

Sunroof Window Motor

Procedure

When replacing the sunroof motor, refer to Sunroof Motor/Actuator Initialization/Teach Process .
Verify the operation of the sunroof before installing the headliner trim.
