WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

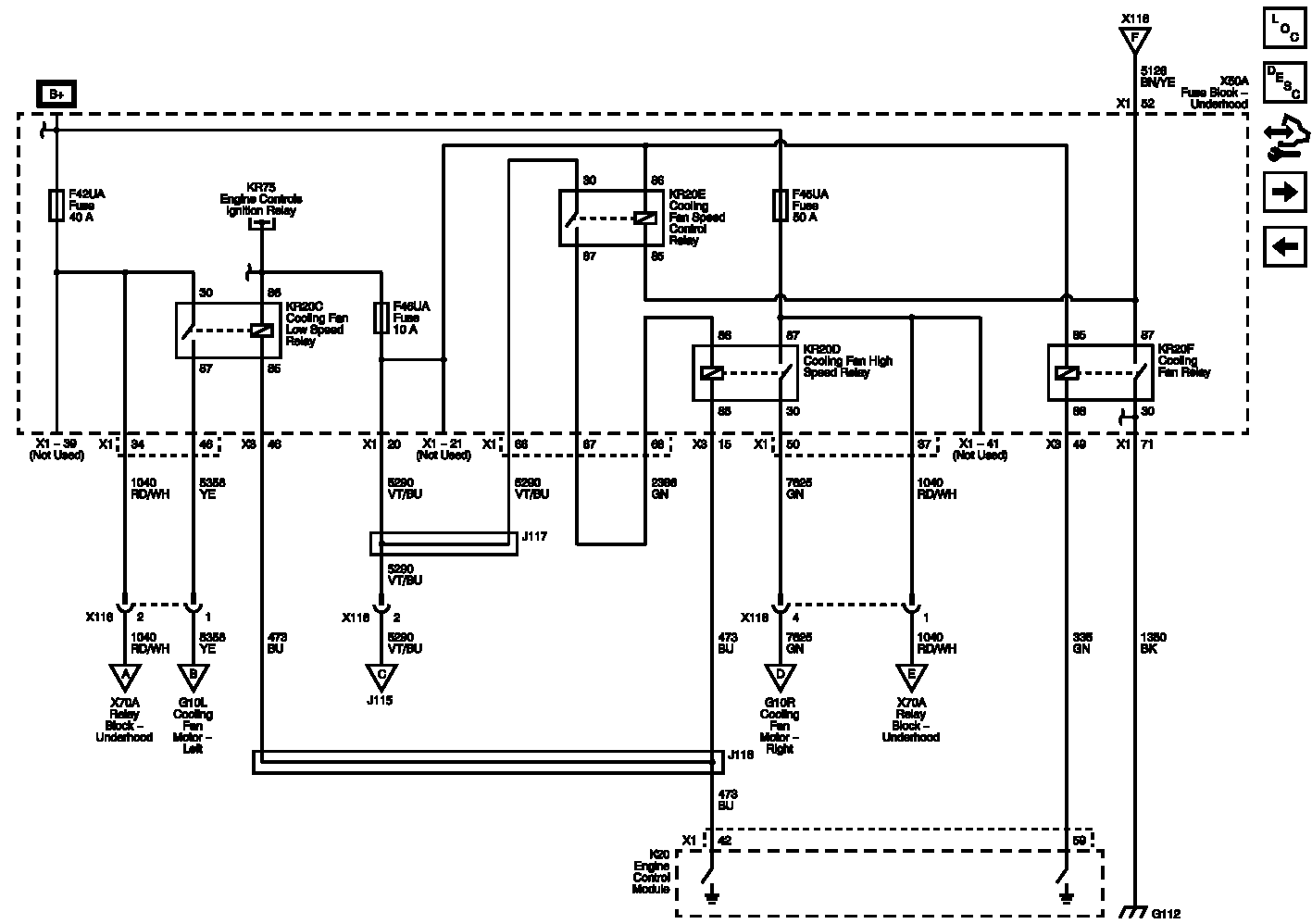

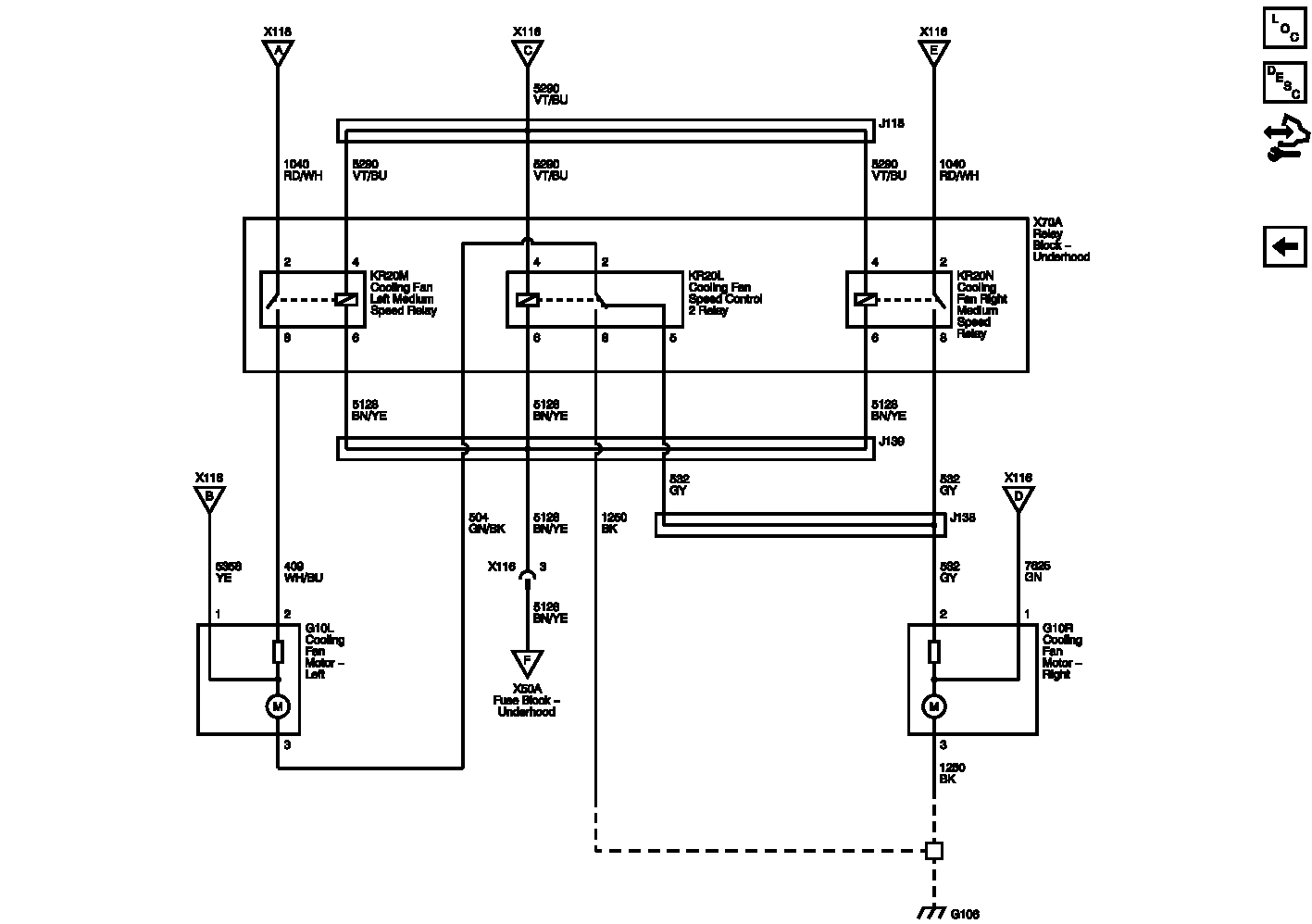

Fig 1: Cooling Fans (LAF) Wiring Schematic
Courtesy of GENERAL MOTORS CORP.

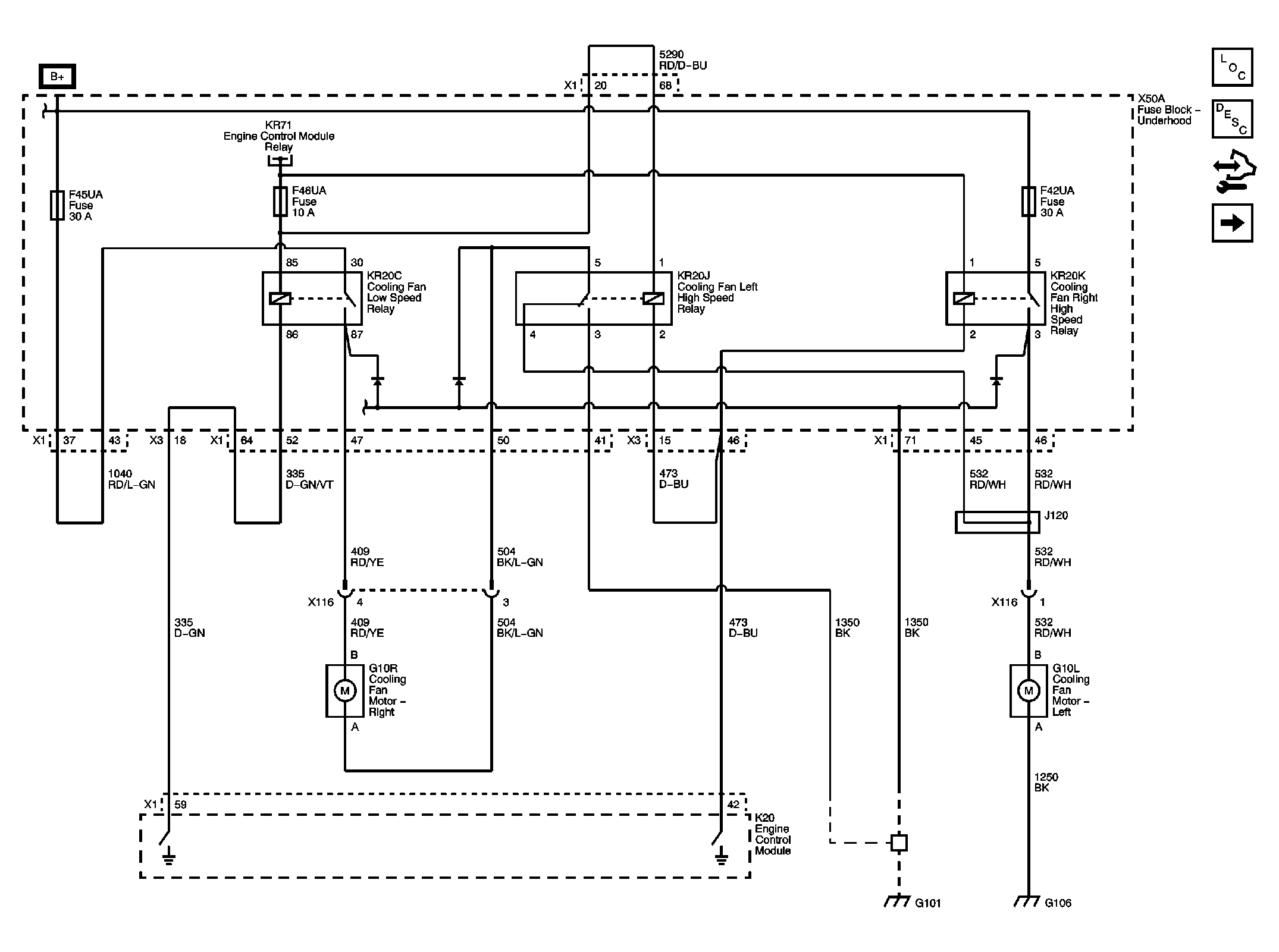

Fig 2: Cooling Fan Controls (LHU) Wiring Schematic
