Radiator Inlet Hose Replacement (LAF)

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

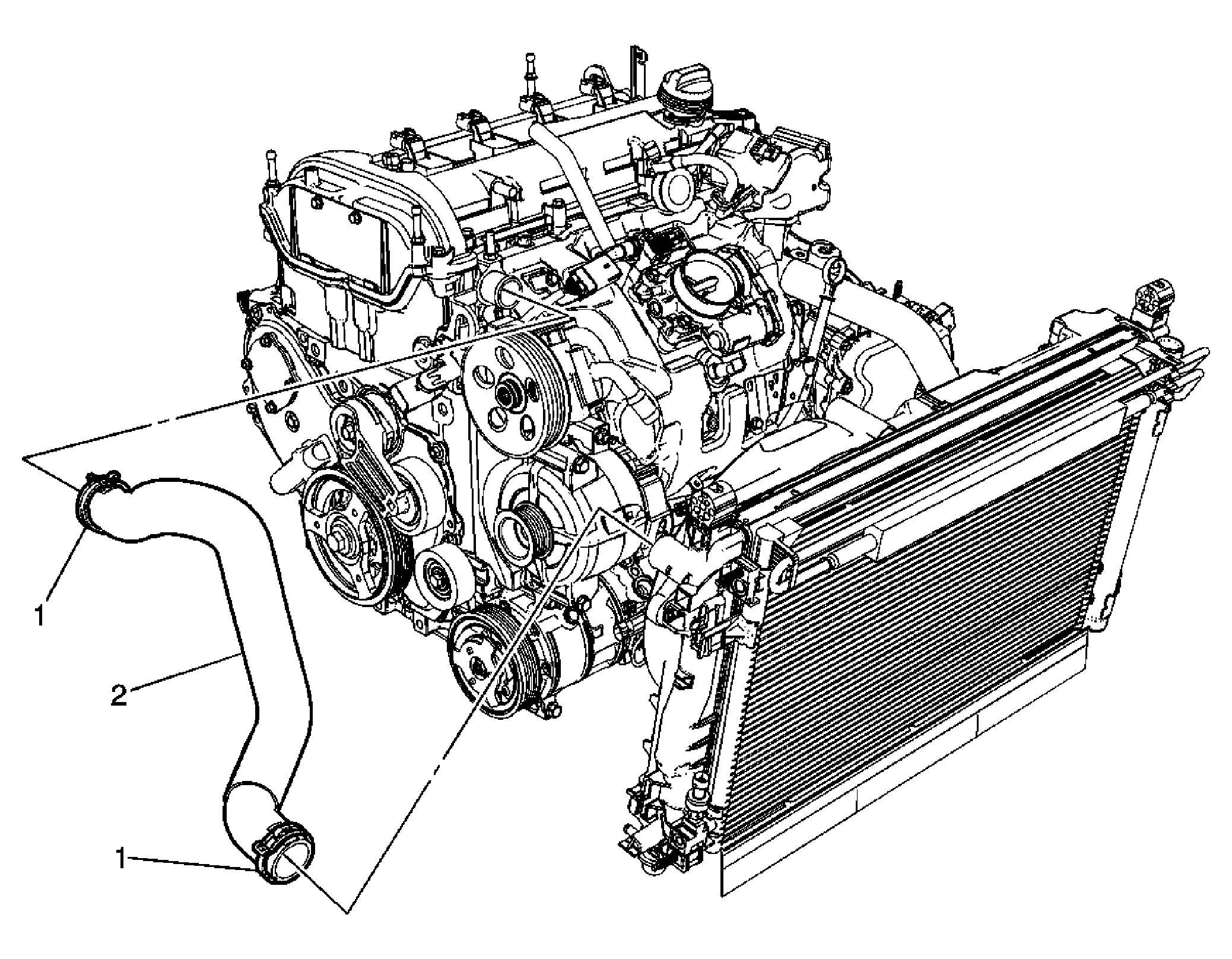

Fig 1: Radiator Inlet Hose (LAF)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) or Cooling System Draining and Filling (Static Fill) . Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement
1	Radiator Inlet Hose Clamp Procedure: Reposition the radiator inlet hose clamp using BO-38185: Hose Clamp Pliers Special Tools: BO-38185: Hose Clamp Pliers For equivalent regional tools, Refer to Special Tools
2	Radiator Inlet Hose

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) or Cooling System Draining and Filling (Static Fill) .
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement

Radiator Inlet Hose Clamp
Procedure:
Reposition the radiator inlet hose clamp using BO-38185: Hose Clamp Pliers
Special Tools:
BO-38185: Hose Clamp Pliers
For equivalent regional tools, Refer to Special Tools

Radiator Inlet Hose
