Installation Procedure
WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
- Position the starter (1) to the engine.
- Install the starter mounting fasteners (2) and tighten to 58 N.m (43 lb ft).

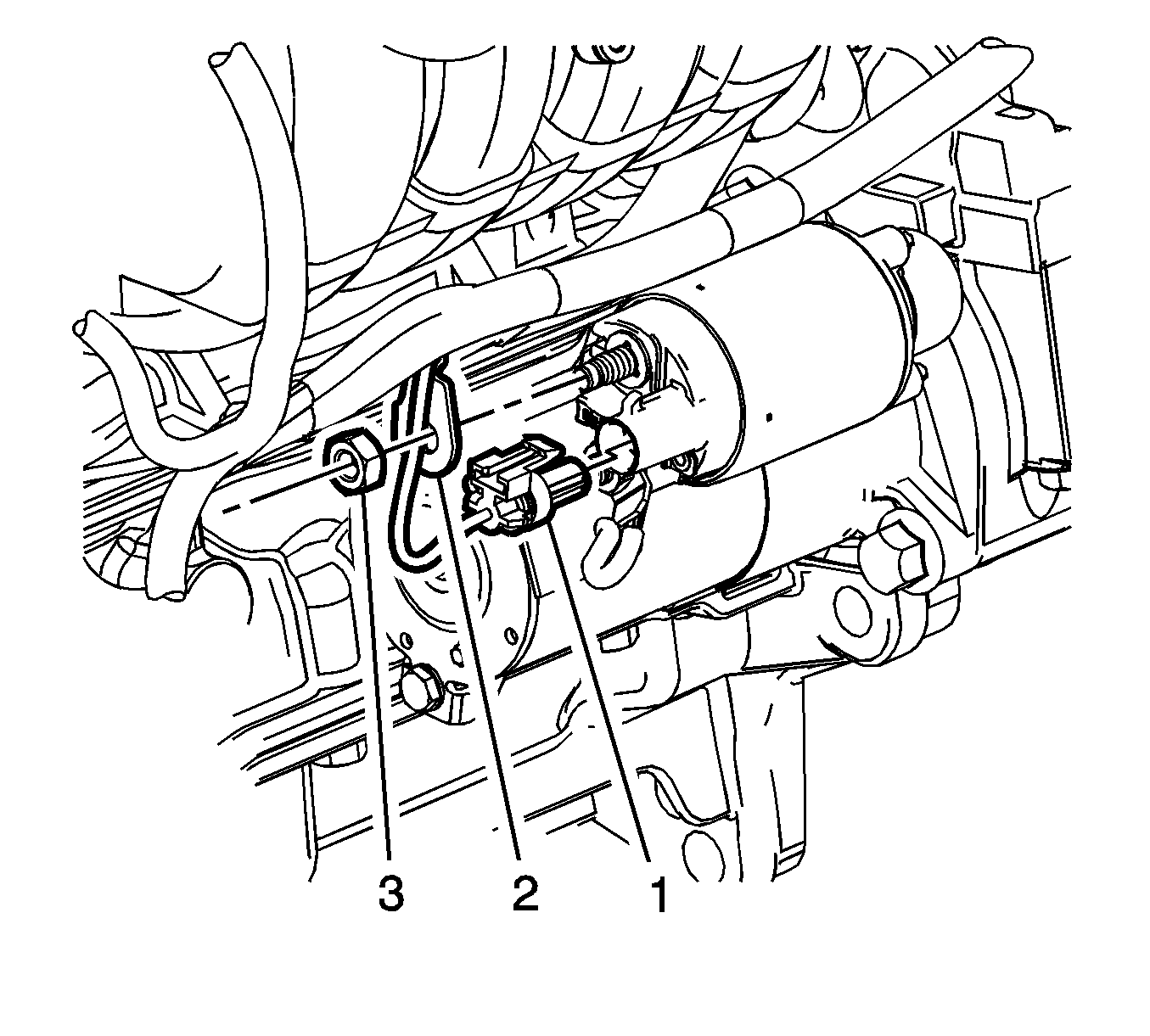

- Install the positive battery cable terminal (2) to the starter. Ensure that the anti-rotational tab is correctly located into the indexing slot.
- Install the starter solenoid terminal fastener (3) and tighten to 11 N.m (8 lb ft).
- Connect the engine harness connector (1) to the starter.
- Lower the vehicle.
- Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
CAUTION:
Refer to Fastener Caution .
