Rear Compartment Courtesy Lamp Replacement
WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

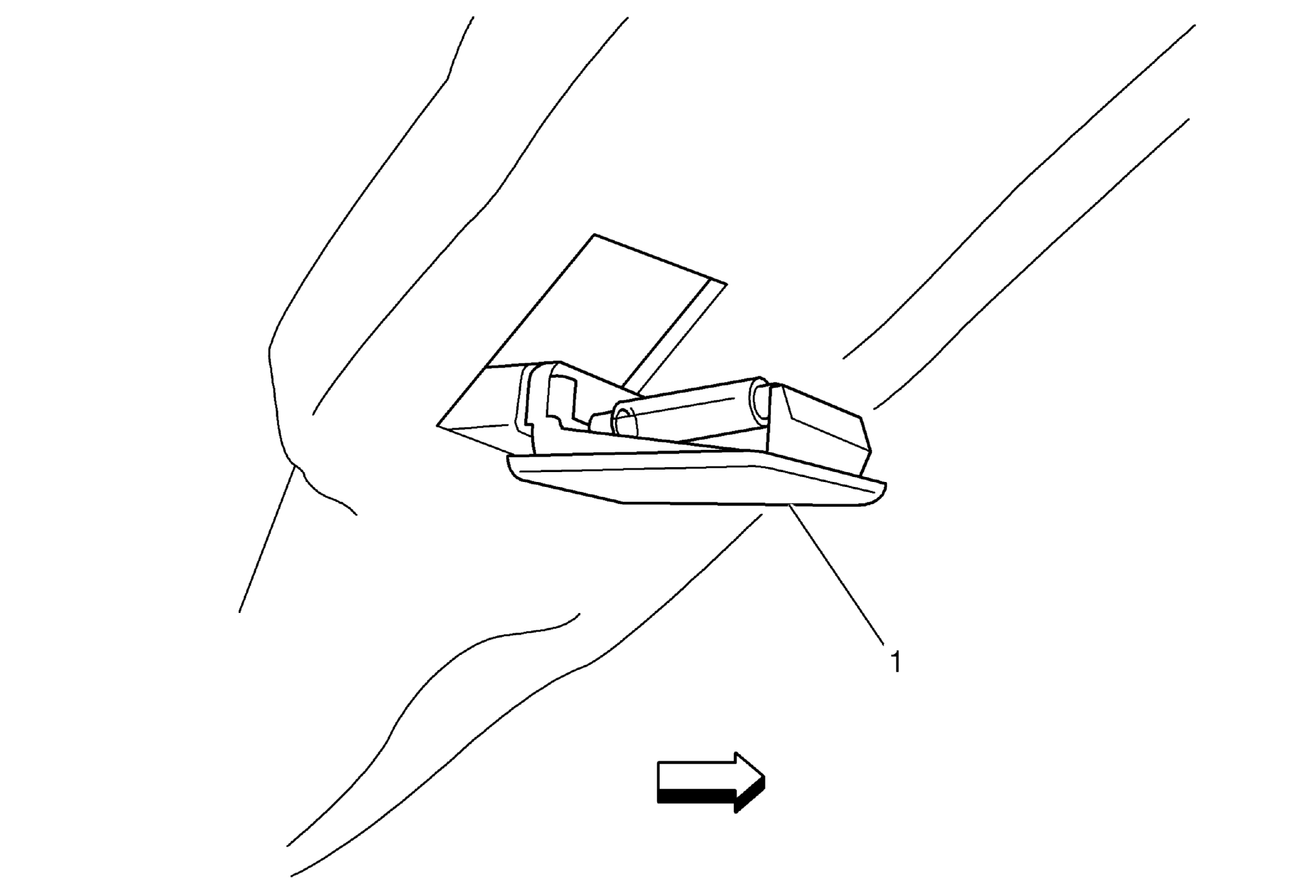

Courtesy of GENERAL MOTORS COMPANY Rear Compartment Courtesy Lamp Replacement
| Callout |
Component Name |
| 1 |
Rear Compartment Courtesy Lamp Procedure
- Release and pull off the rear compartment courtesy lamp.
- Disconnect the electrical connector.
TIP:
Carefully use a flat-bladed tool, and release the compartment lamp. |
