Powertrain Component Views
>>
Manual Transmission Components (MR6)
Manual Transmission Components (MR6)
Courtesy of

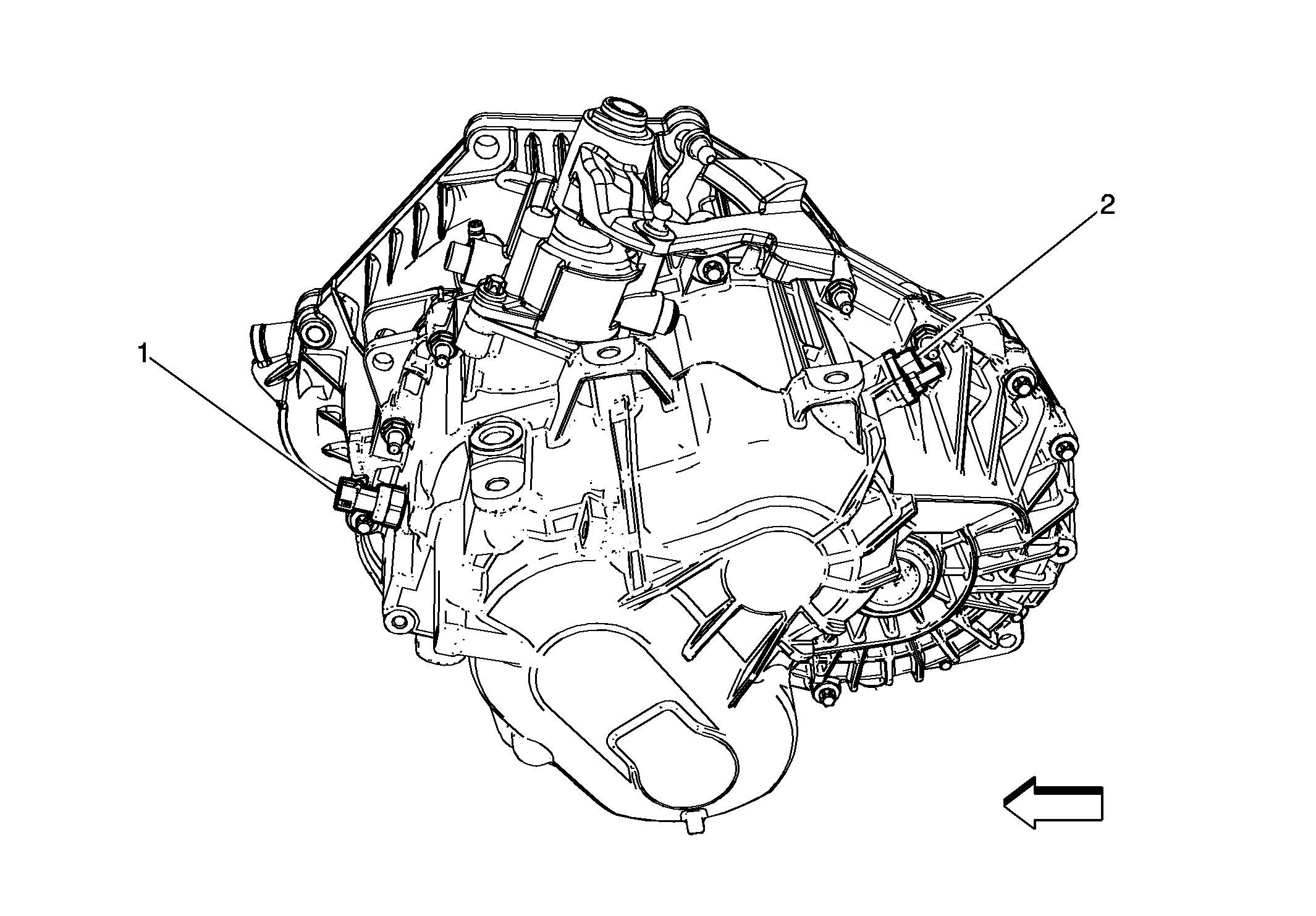

Manual Transmission Components (MR6)
Component Name
Callout
B16 Backup Lamp Switch
1
B115 Vehicle Speed Sensor
2
