Front of Engine Components (LEA 2 of 2)
 Courtesy of
|

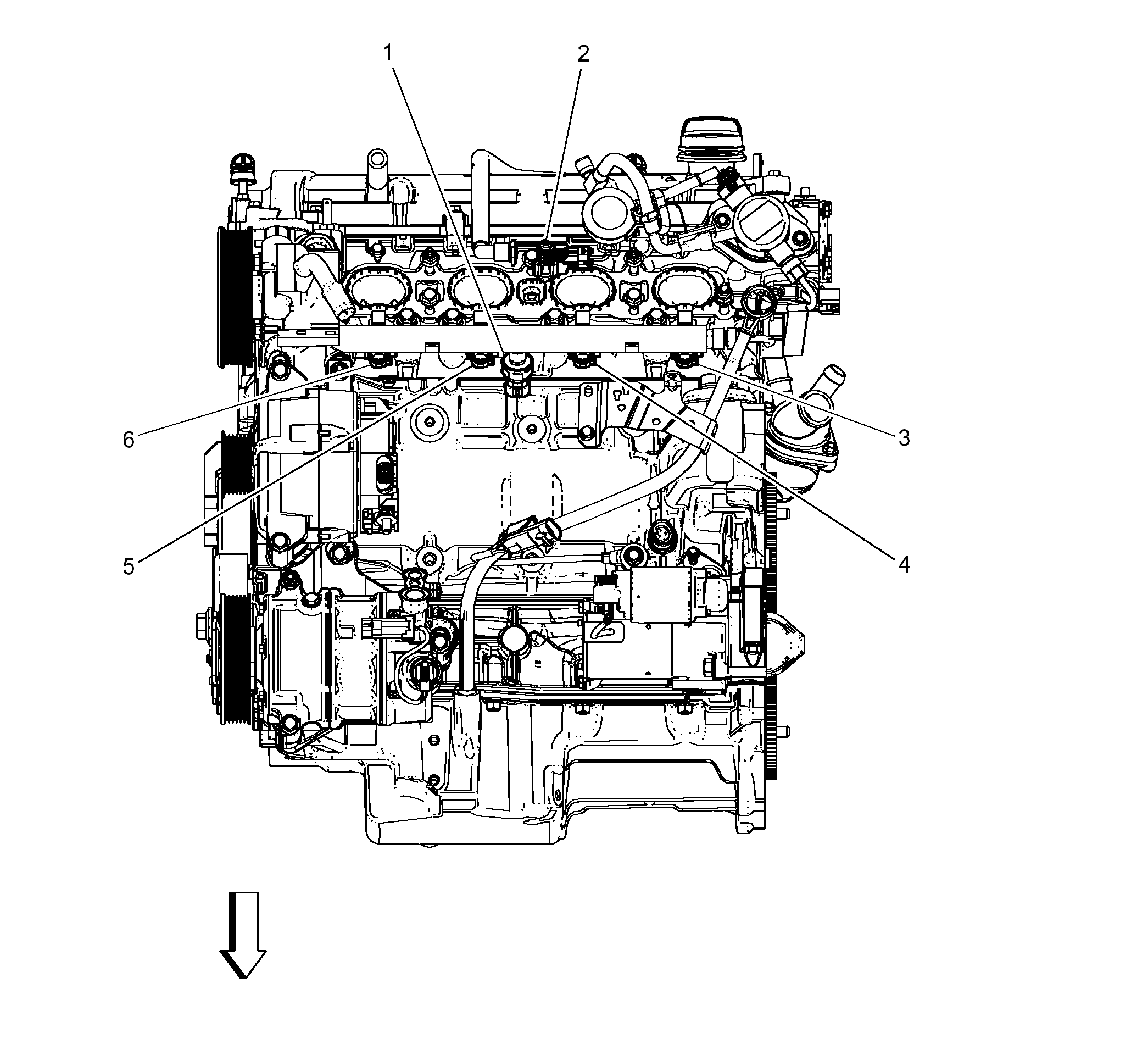

Front of Engine Components (LEA 2 of 2)
| Component Name |
Callout |
| B47B Fuel Rail Pressure Sensor |
1 |
| B74 Manifold Absolute Pressure Sensor |
2 |
| Q17D Fuel Injector 4 |
3 |
| Q17C Fuel Injector 3 |
4 |
| Q17B Fuel Injector 2 |
5 |
| Q17A Fuel Injector 1 |
6 |
