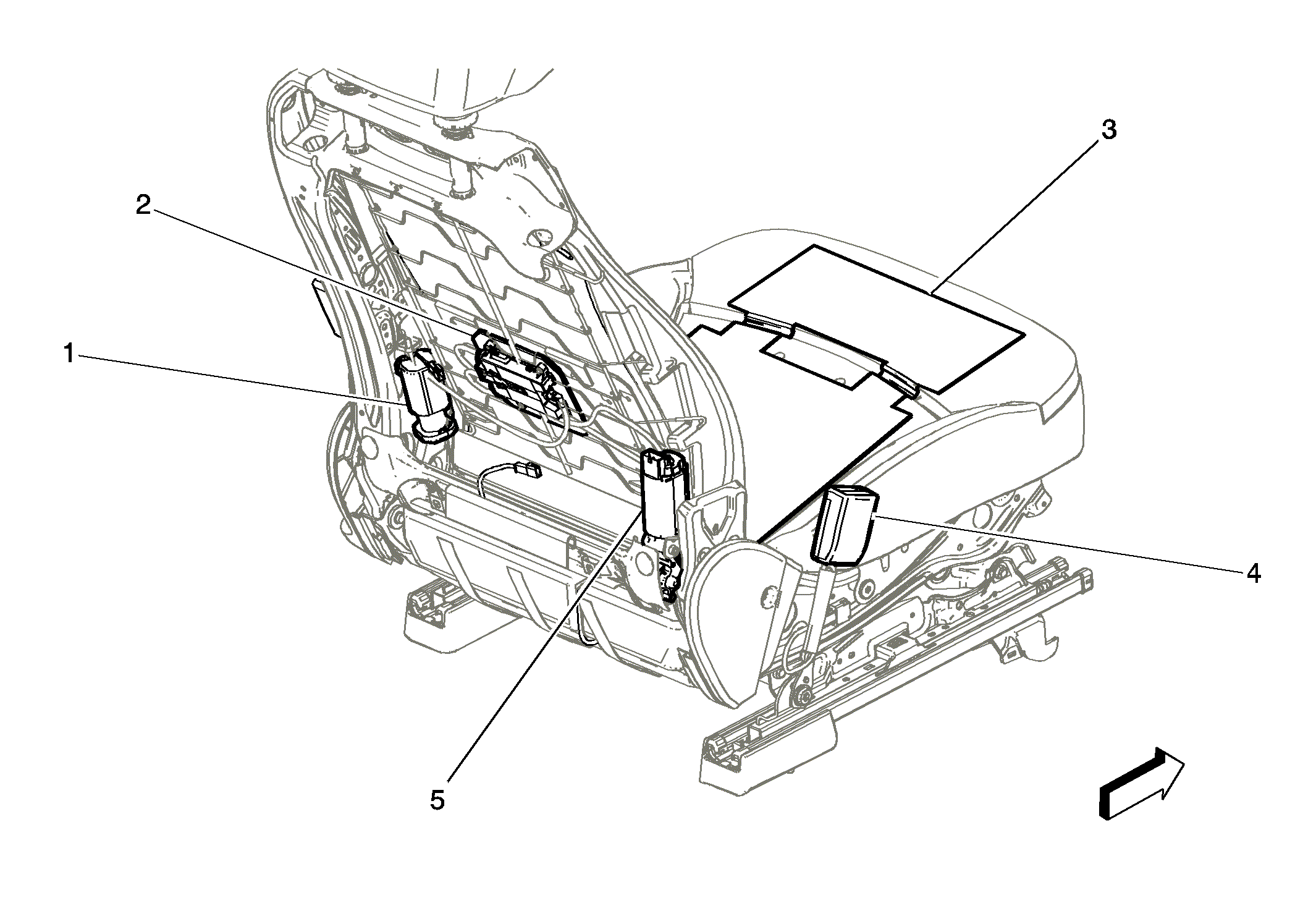

Rear of Driver Seat Components
 Courtesy of
|
Rear of Driver Seat Components
| Component Name |
Callout |
| A14D Seat Lumbar Support Pump - Driver |
1 |
| Q51D Seat Lumbar Support Valve Assembly - Driver |
2 |
| E14B Seat Heating Element - Driver Cushion (KA1) |
3 |
| B88D Seat Belt Switch - Driver |
4 |
| M56D Seat Recline Motor - Driver |
5 |
