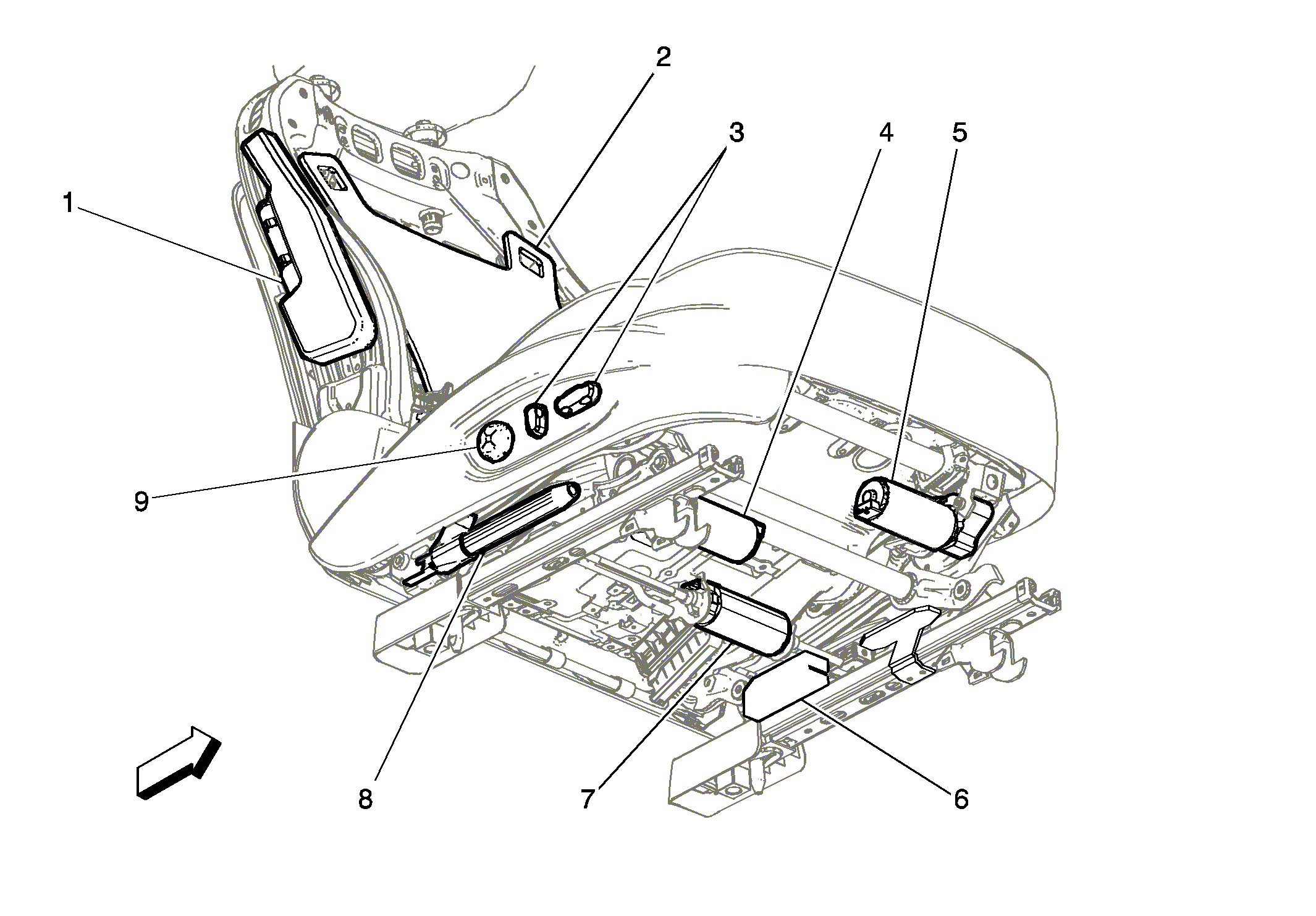

Bottom of Passenger Seat Components
Bottom of Passenger Seat Components
| Component Name | Callout |
|---|---|
| F106RF Seat Air Bag - Right Front | 1 |
| E14C Seat Heating Elemant - Pasenger Back (KA1) | 2 |
| S64P Seat Adjuster Switch - Pasenger (AG2) | 3 |
| M51P Seat Horizontal Motor - Passenger (AG2) | 4 |
| M50P Seat Front Vertical Motor - Passenger (AG2) | 5 |
| B62P Seat Position Sensor - Passenger | 6 |
| M55P Seat Rear Vertical Motor - Pasenger (AG2) | 7 |
| F113P Seat Belt Anchor Pretensioner - Passenger | 8 |
| S65P Seat Lumbar Support Switch - Pasenger (APH) | 9 |
