Front of Vehicle/Engine Compartment Component Views
>>
Right Side of Engine Compartment Components

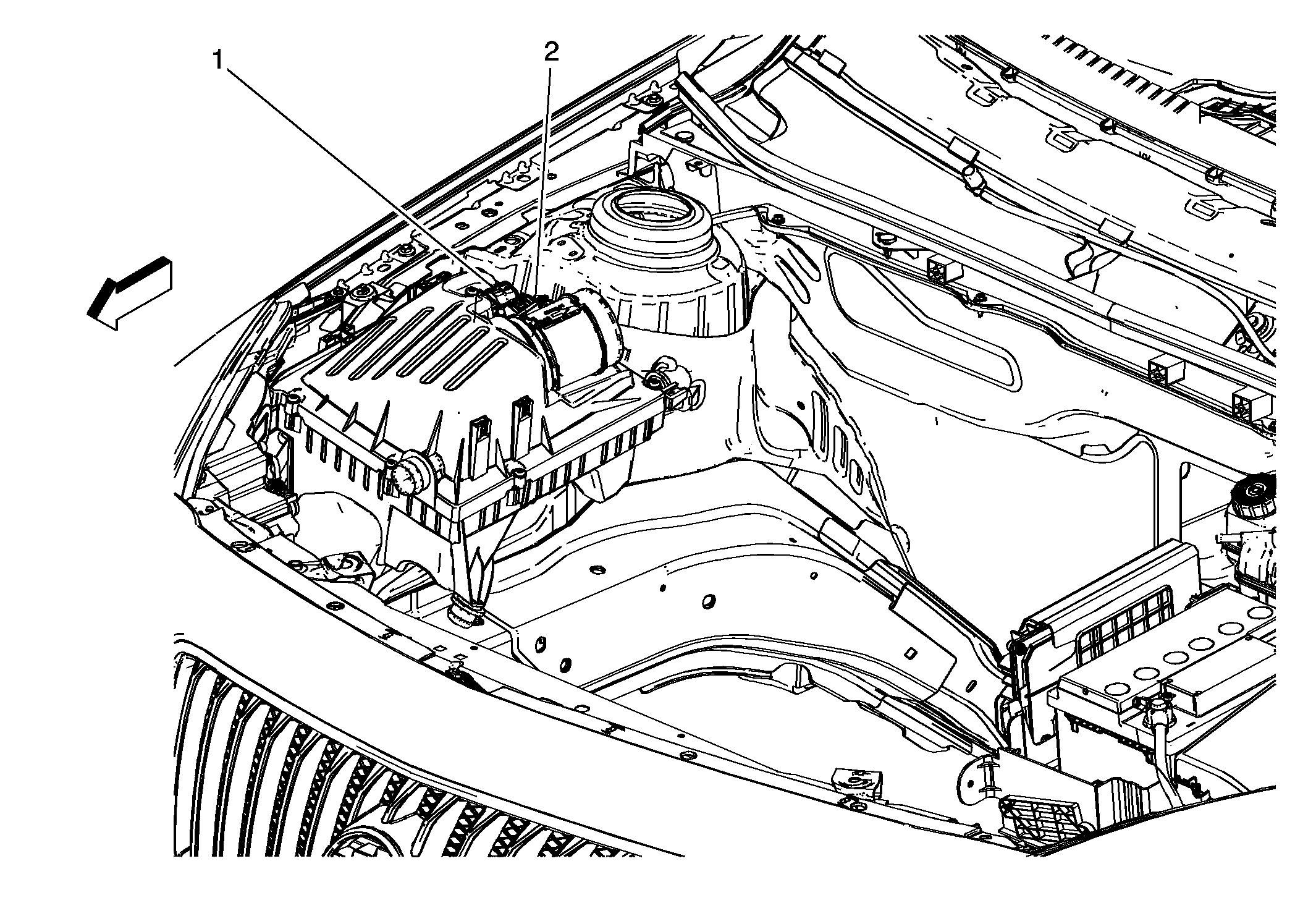

Right Side of Engine Compartment Components
Courtesy of
Right Side of Engine Compartment Components
Component Name
Callout
B17 Barometric Pressure Sensor
1
B75B Mass Air Flow/Intake Air Temperature Sensor
2
