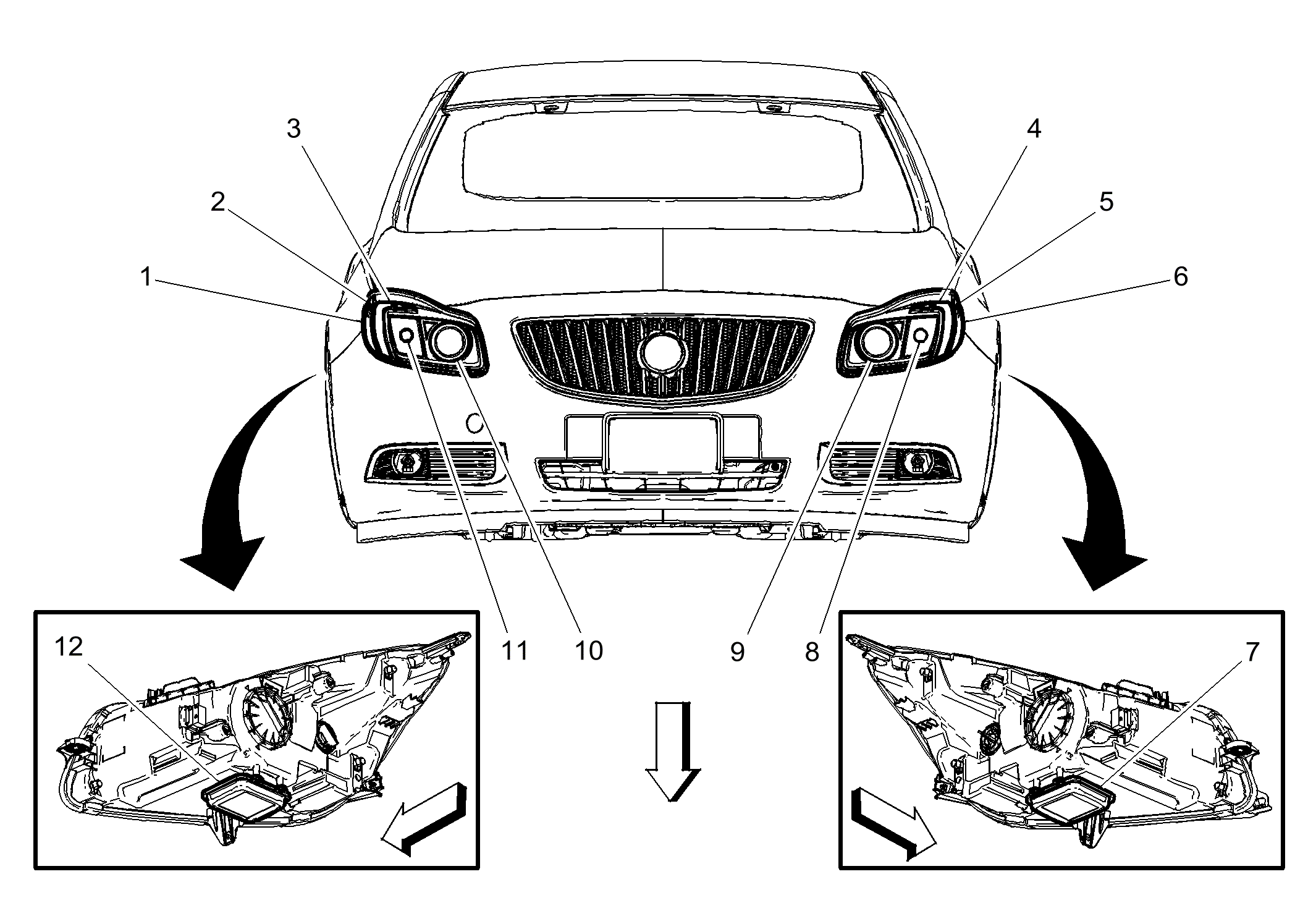

Headlamp Components (T4F)
Headlamp Components (T4F)
| Component Name | Callout |
|---|---|
| E13R Headlamp - Right | 1 |
| E2RF Side Marker Lamp - Right Front | 2 |
| E4K Park Lamp - Right Front | 3 |
| E4J Park Lamp - Left Front | 4 |
| E2LF Side Marker Lamp - Left Front | 5 |
| E13L Headlamp - Left | 6 |
| T7L Headlamp Ballast - Left | 7 |
| E4LF Turn Signal Lamp - Left Front | 8 |
| E4G Headlamp - Left Low Beam | 9 |
| E4H Headlamp - Right Low Beam | 10 |
| E4RF Turn Signal Lamp - Right Front | 11 |
| T7R Headlamp Ballast - Right | 12 |
