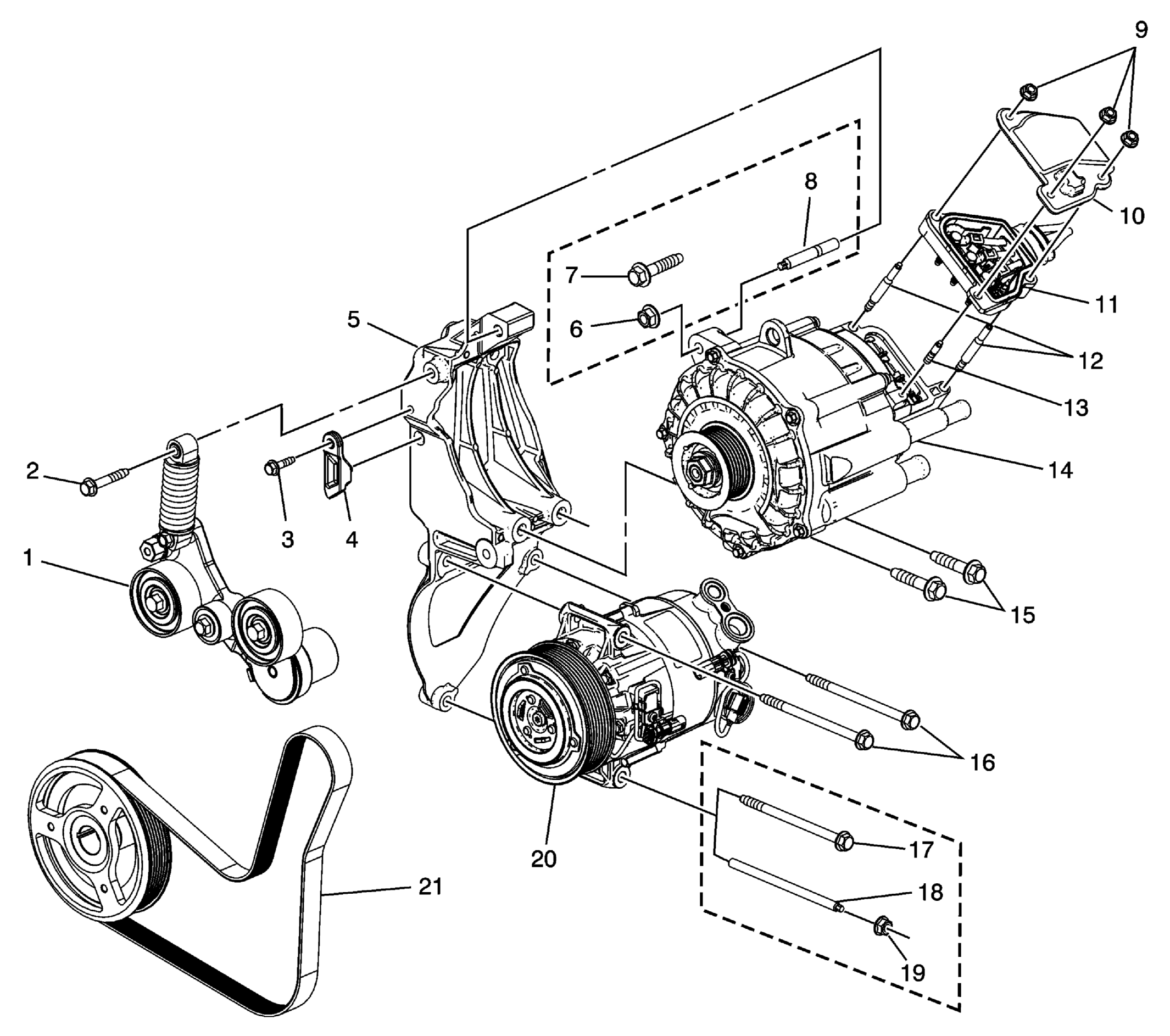

Starter Generator, Drive Motor Tensioner, Drive Motor Battery Cable, and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Drive Belt Tensioner Assembly |
| 2 | Drive Belt Tensioner Bolt |
| 3 | Drive Belt Tensioner Stop Bolt |
| 4 | Tensioner Stop |
| 5 | Generator and A/C Compressor Bracket |
| 6 | Starter Generator Nut - Production |
| 7 | Starter Generator Bolt - Service |
| 8 | Starter Generator Stud - Production |
| 9 | Drive Motor Generator Battery Cable Cover Nuts |
| 10 | Drive Motor Generator Battery Cable Cover |
| 11 | Drive Motor Generator Battery Cable |
| 12 | Starter Generator Stud - Long |
| 13 | Starter Generator Stud - Short |
| 14 | Starter Generator |
| 15 | Starter Generator Bolt |
| 16 | A/C Compressor Bolts |
| 17 | A/C Compressor Bolt - Service |
| 18 | A/C Compressor Stud - Production |
| 19 | A/C Compressor Nut - Production |
| 20 | A/C Compressor |
| 21 | Generator and A/C Compressor Belt |
