Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- Identify how to disable high voltage.
- Identify how to test for the presence of high voltage.
- Identify condition under which high voltage is always present and personal protection equipment (PPE) and proper procedures must be followed.
- Safety glasses with appropriate side shields when within 15 meters (50 feet) of the vehicle, either indoors or outdoors.
- Certified and up-to-date Class "0" Insulation gloves rated at 1000V with leather protectors.
- Visually and functionally inspect the gloves before use.
- Wear the Insulation gloves with leather protectors at all times when working with the high voltage battery assembly, whether the system is energized or not.
- Ignition OFF, disable the high voltage at the A4 hybrid battery pack. Refer to High Voltage Disabling .

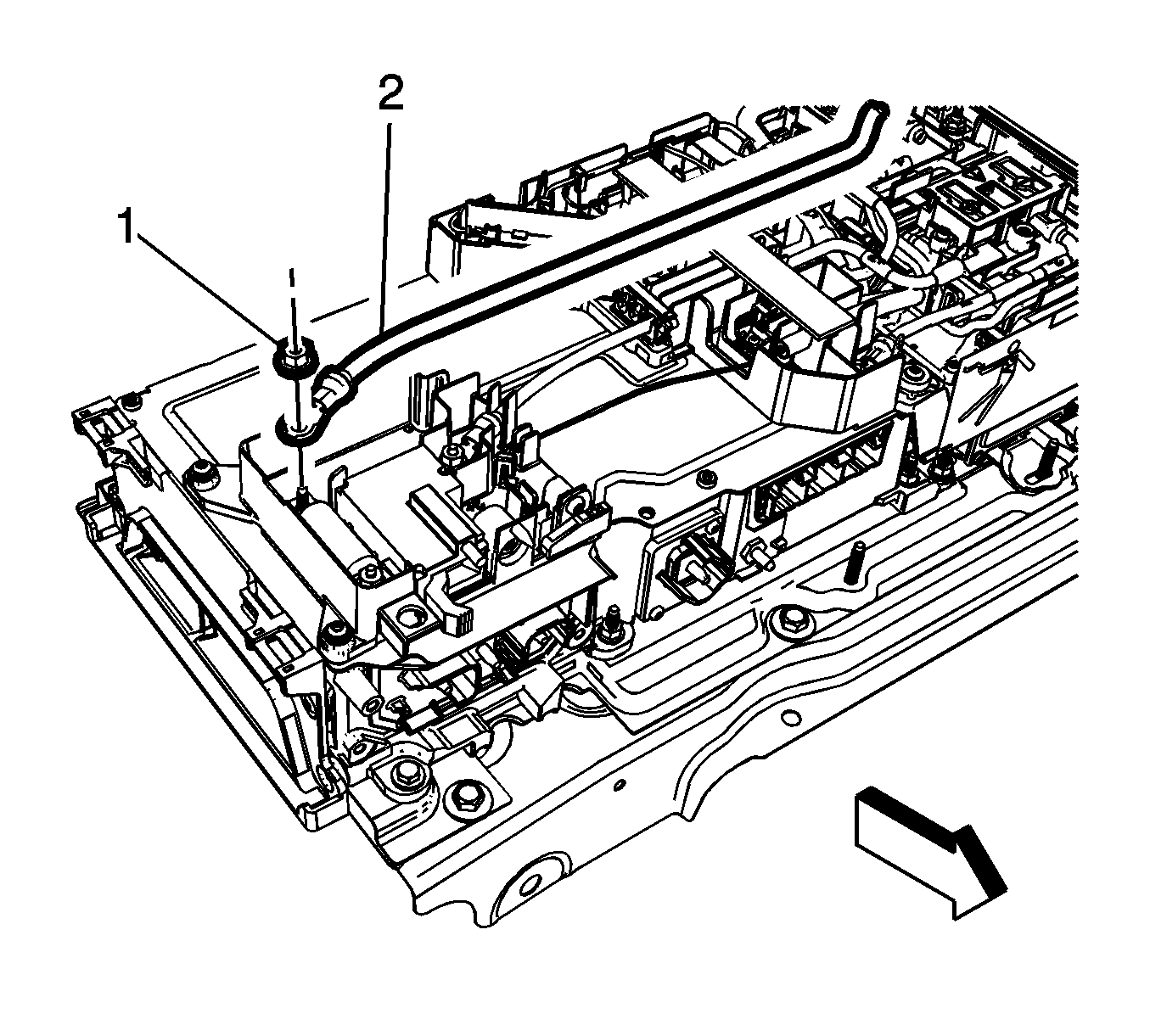

- Remove the high voltage fasteners (1) and the high voltage cables (2) from the generator battery fuse.

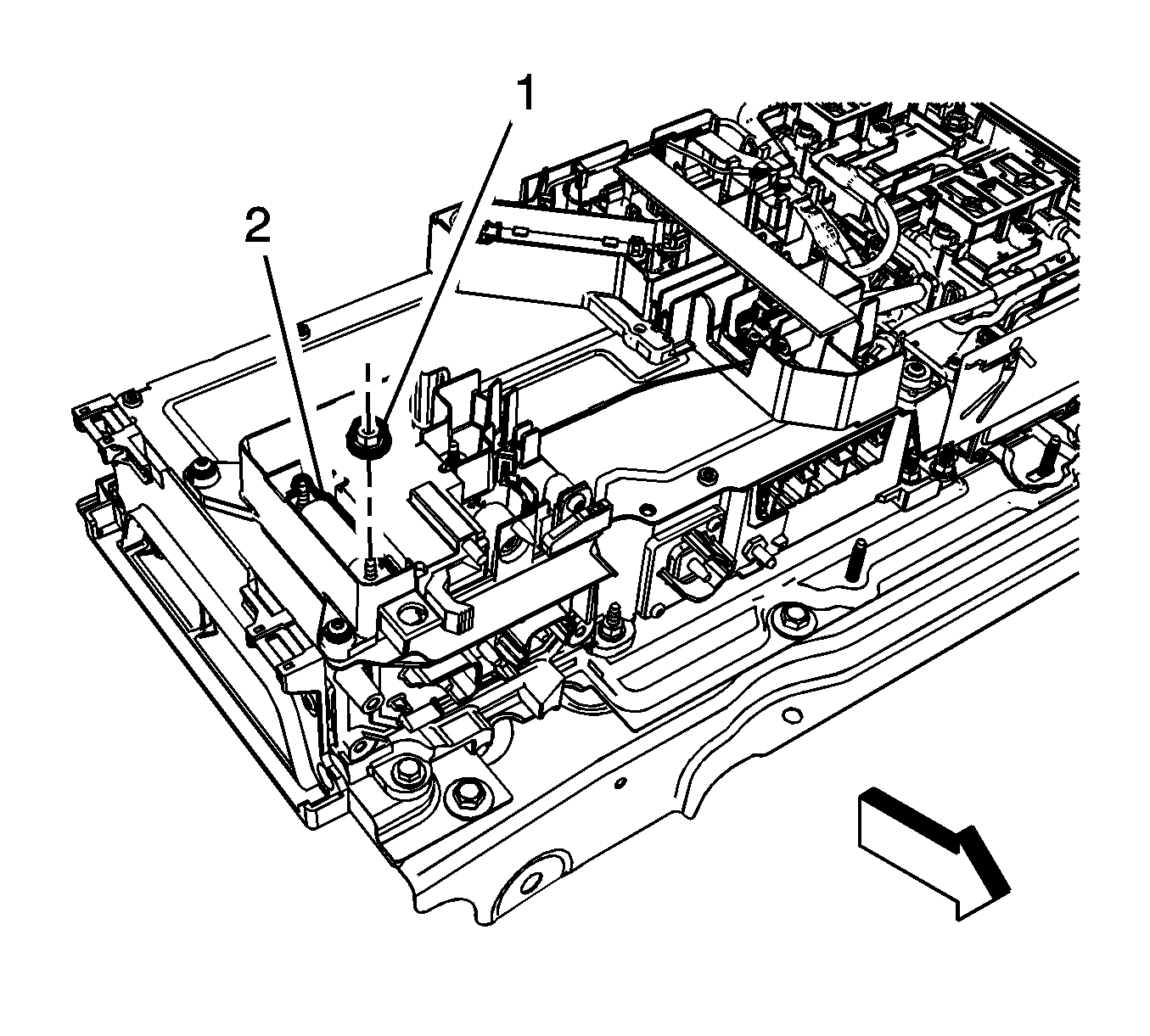

- Remove the generator fuse fastener (1) and remove the generator battery fuse (2).
WARNING:
Ensure all High Voltage safety procedures are followed. Failure to follow the procedure exactly as written may result in serious injury or death.
WARNING:
Always perform the High Voltage Disabling procedure prior to servicing any High Voltage component or connection. Personal Protection Equipment (PPE) and proper procedures must be followed.
The High Voltage Disabling procedure will perform the following tasks:
Before working on any high voltage system, be sure to wear the following Personal Protection Equipment:
Failure to follow the procedures exactly as written may result in serious injury or death.
