Headlamp Bulb Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

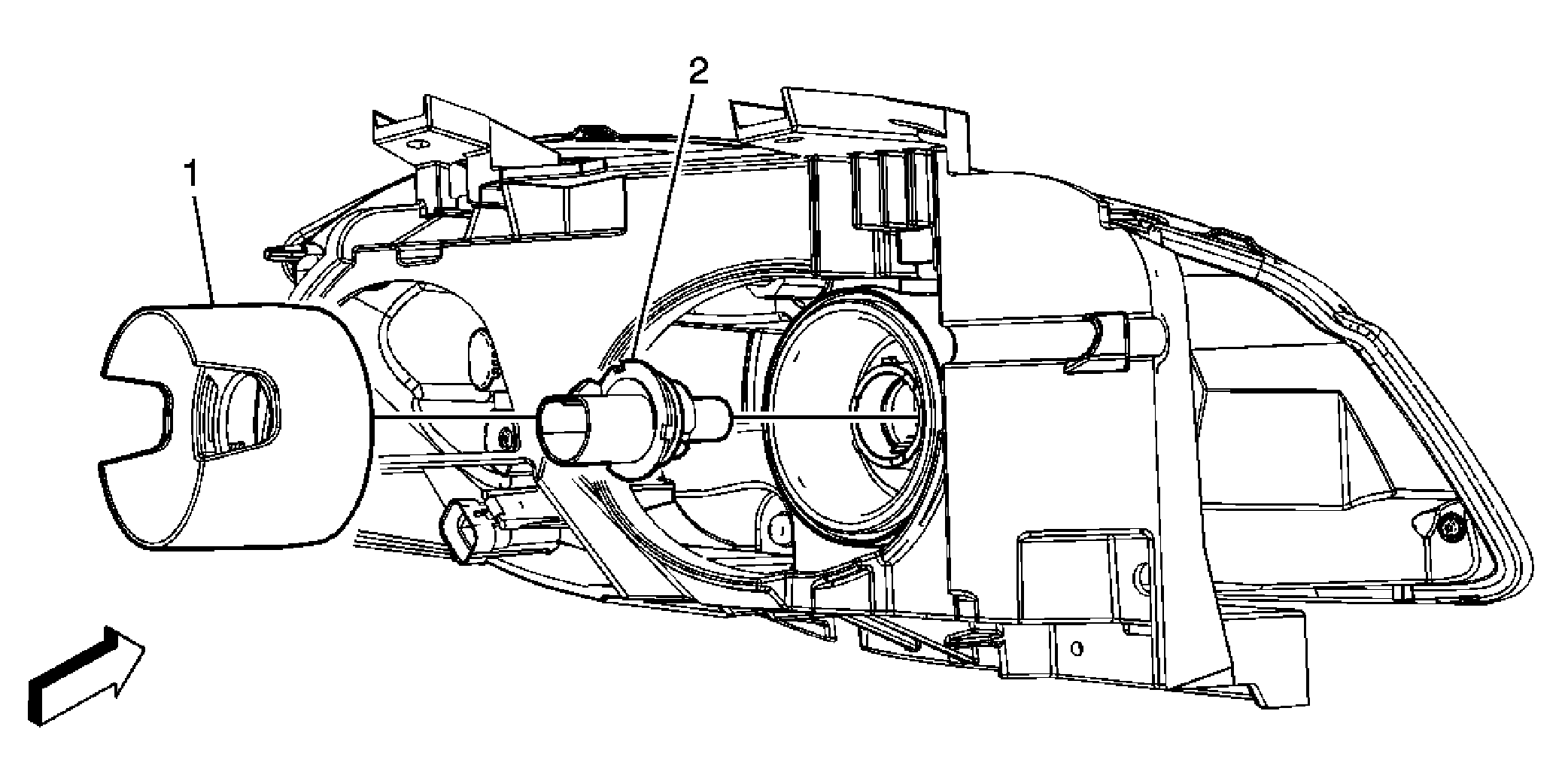

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove either the left front or right front headlamp assembly. Refer to Headlamp Replacement . |
|
| 1 | Headlamp Bulb Locking Ring Tip: Turn the ring counterclockwise and remove. |
| 2 | Headlamp Bulb
WARNING:
Refer to Halogen Bulb Warning
. Tip: Rotate the bulb socket counter-clockwise and remove. |
