Steering Column Inspection: Inspection

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column (see STEERING COLUMN REMOVAL AND INSTALLATION ).
Do these checks:
- Check the steering column ball bearing (A) and the steering joints (B) for play and proper movement. If any bearing is noisy or has excessive play, replace the steering column as an assembly.
- Check the absorbing plates (C) and sliding capsules (D) for distortion or breakage. If there is distortion or breakage, replace the steering column as an assembly.
- Check the tilt mechanism and telescopic mechanism for movement and damage.
- Check the lower slide shaft (E) for smooth movement in and out. If the lower slide shaft is removed, slip it into the upper shaft by aligning the paint or stamped marks (F). If it sticks or binds, replace the steering column as an assembly.
NOTE: Do not use silicone grease.

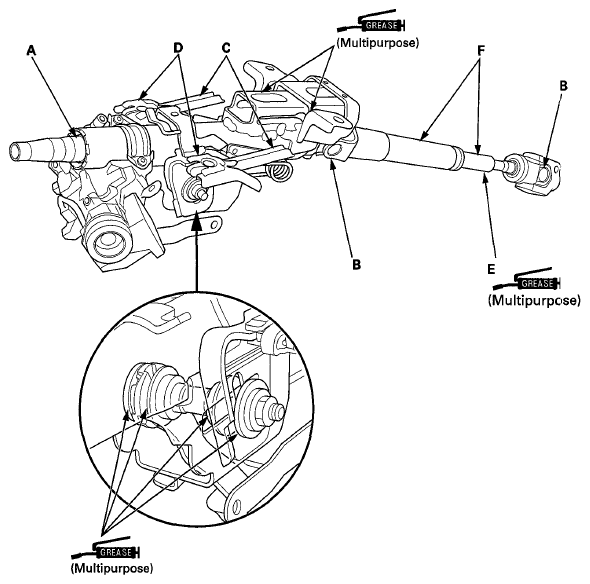

Fig 1: Identifying Steering Column Ball Bearing, Sliding Capsules, Absorbing Plates And Steering Joints Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the steering column (see INSTALLATION ).
