Section 7 (Steering)
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

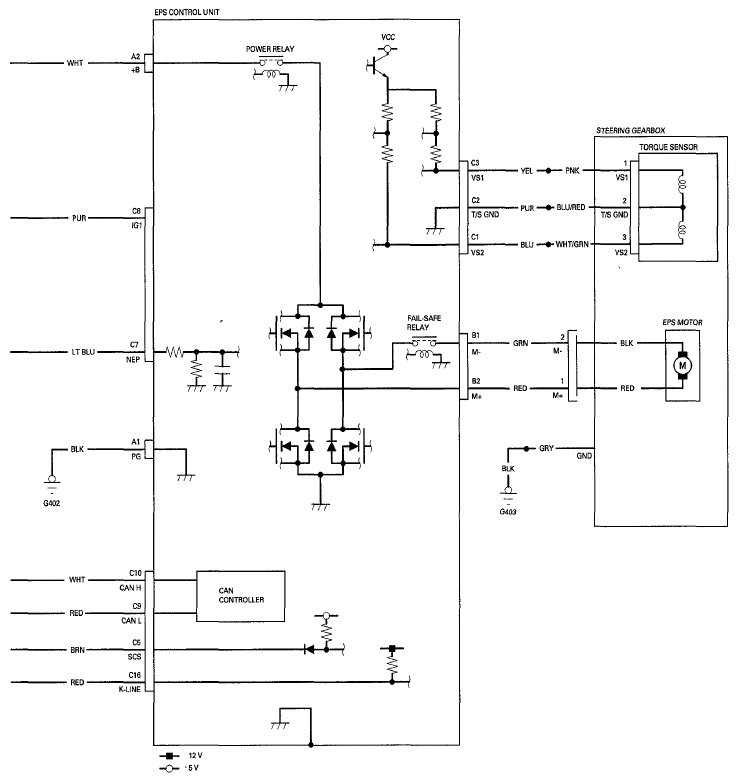

Fig 1: EPS Component Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

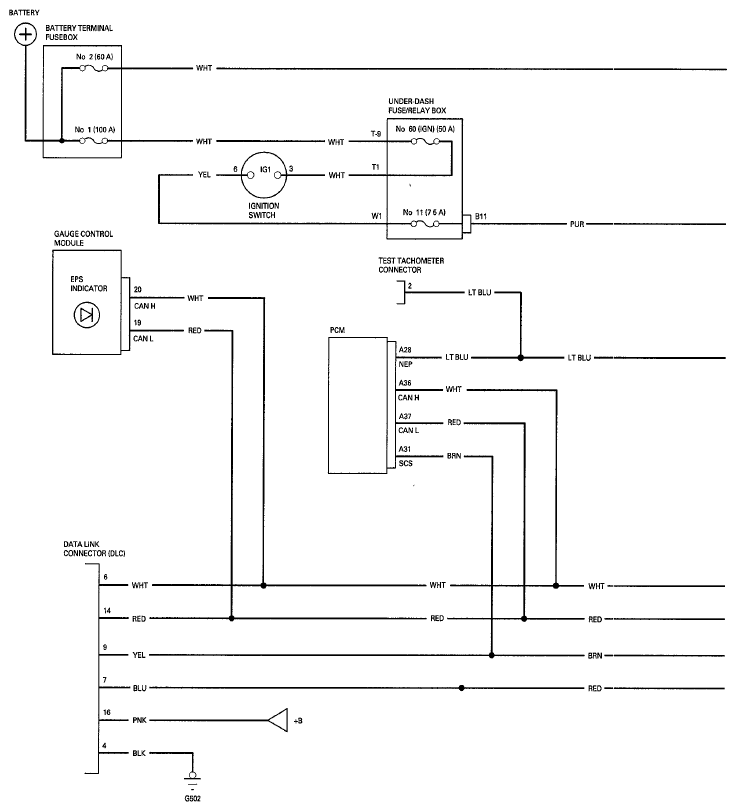

Fig 2: EPS Component Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

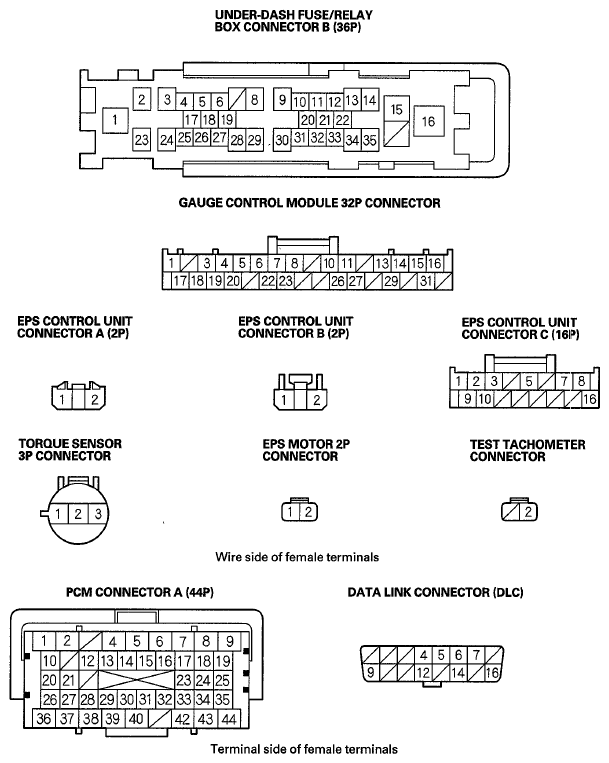

Fig 3: EPS Control Unit Connector Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
