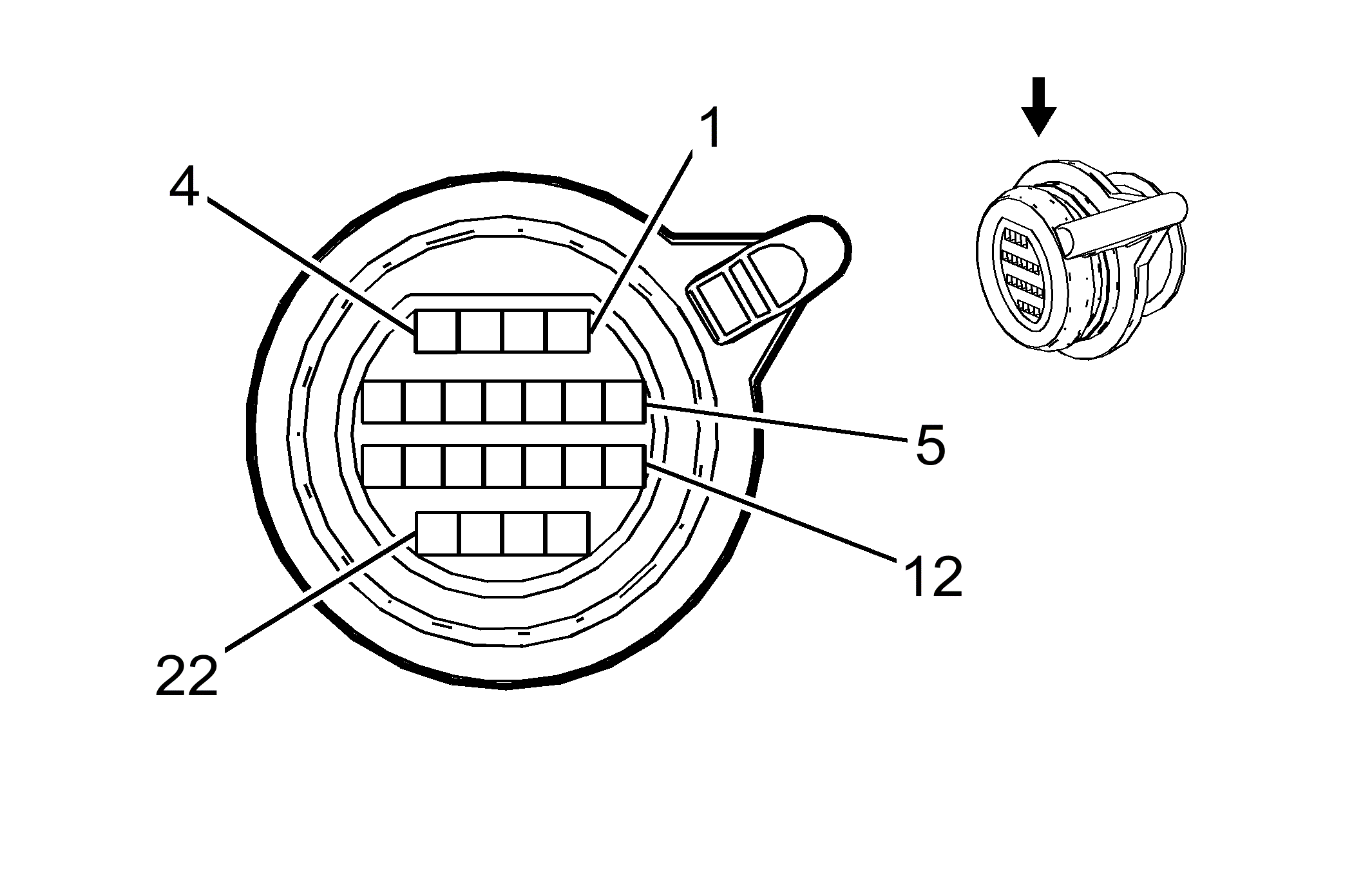

K71 Transmission Control Module X2 (MDK)
WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Service by Harness - See Part Catalog | Pending | Not Available | Not Available | Not Available | Not Available | Not Available |
K71 Transmission Control Module X2 (MDK)
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | - | - | - | Low Reference | I | - |
| 2 | - | - | - | Shift Solenoid 2 Control | I | - |
| 3 | - | - | - | Line Pressure Control Solenoid Valve Control | I | - |
| 4 | - | - | - | Low Reference | I | - |
| 5 | - | - | - | Shift Solenoid 1 Control | I | - |
| 6 | - | - | - | Not Occupied | - | - |
| 7 | - | - | - | Low Reference | I | - |
| 8 | - | - | - | Transmission Fluid Temperature Sensor Signal | I | - |
| 9 | - | - | - | Torque Converter Clutch Pressure Control Solenoid Valve Control | I | - |
| 10 | - | - | - | Low Reference | I | - |
| 11 | - | - | - | Pressure Control Solenoid Valve 1 Control | I | - |
| 12 | - | - | - | Transmission Input Shaft Speed Sensor High Signal | I | - |
| 13 | - | - | - | Transmission Input Shaft Speed Sensor Low Signal | I | - |
| 14 | - | - | - | Pressure Control Solenoid Valve 3 Control | I | - |
| 15 | - | - | - | Not Occupied | - | - |
| 16 | - | - | - | Low Reference | I | - |
| 17 | - | - | - | Pressure Control Solenoid Valve 2 Control | I | - |
| 18 | - | - | - | Low Reference | I | - |
| 19 | - | - | - | Transmission Output Shaft Speed Sensor High Signal | I | - |
| 20 | - | - | - | Transmission Output Shaft Speed Sensor Low Signal | I | - |
| 21 | - | - | - | Pressure Control Solenoid Valve 4 Control | I | - |
| 22 | - | - | - | Low Reference | I | - |
