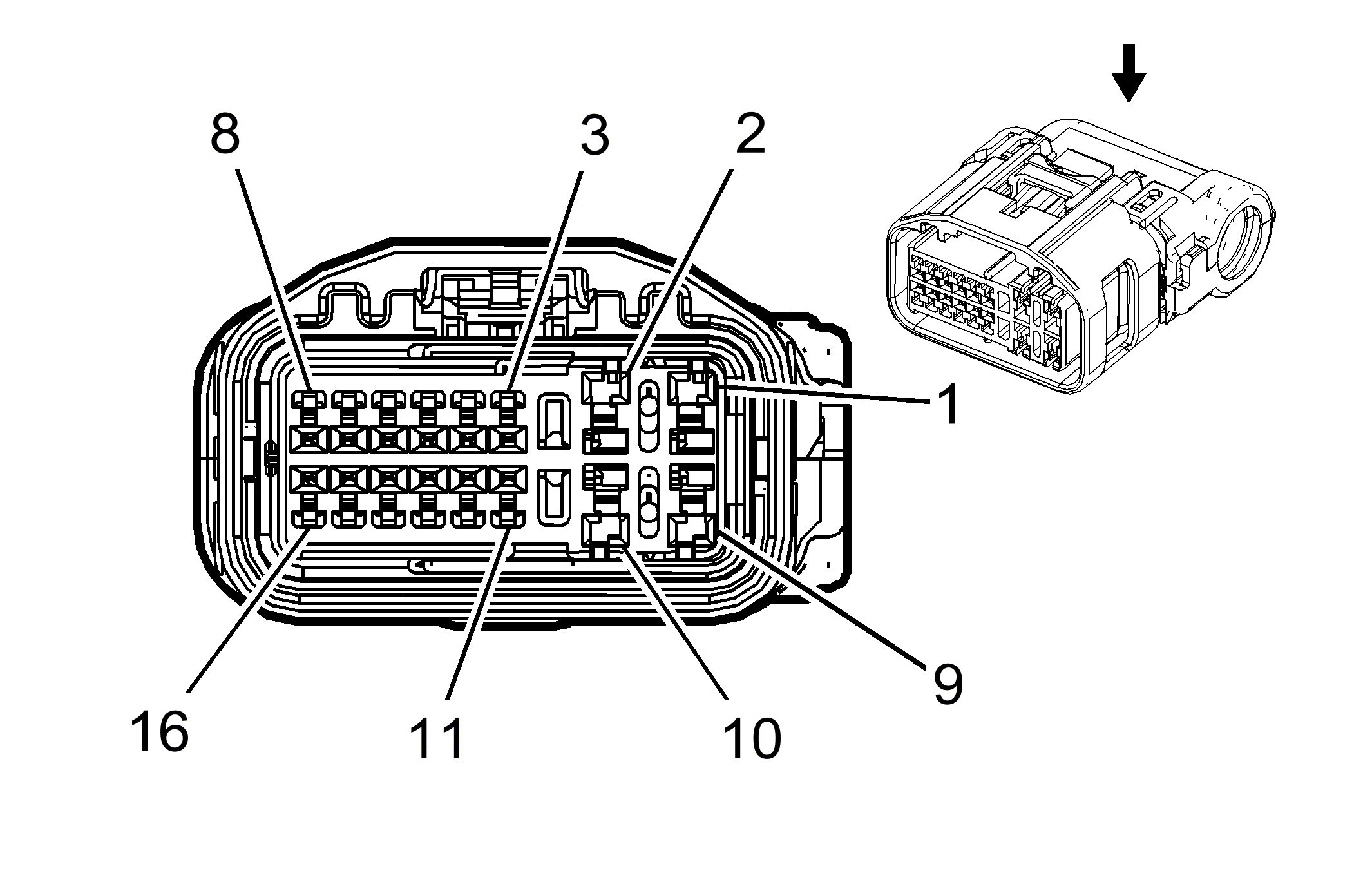

K71 Transmission Control Module X1 (MDK)
WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Pending | Pending | Pending | Not Available | Not Available | Not Available | Not Available |
| II | Pending | J-35616-64B (L-BU) | J-38125-553 | 7116-4720-02 | 14 | J | J |
K71 Transmission Control Module X1 (MDK)
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 1.5 1.5 |
RD/GN RD |
40 40 |
Battery Positive Voltage Battery Positive Voltage |
I | except CZ2 CZ2 |
| 2-4 | - | - | - | Not Occupied | - | - |
| 5 | 0.75 0.75 |
WH/GY OG/BK |
1786 1786 |
Park/Neutral Signal Park/Neutral Signal |
II | except CZ2 CZ2 |
| 6 | 0.5 | WH | 2501 | High Speed GMLAN Serial Data Bus - | II | - |
| 7 | 0.5 0.5 |
BU WH/BK |
2500 2500 |
High Speed GMLAN Serial Data Bus+ High Speed GMLAN Serial Data Bus+ |
II | except CZ2 CZ2 |
| 8 | 0.5 0.5 |
BU WH/BK |
2500 2500 |
High Speed GMLAN Serial Data Bus+ High Speed GMLAN Serial Data Bus+ |
II | except CZ2 CZ2 |
| 9 | 1.5 1.5 |
BK BK |
2650 150 |
Ground Ground |
I | except CZ2 CZ2 |
| 10 | - | - | - | Not Occupied | - | - |
| 11 | 0.5 0.5 |
VT/GY PK |
139 139 |
Ignition Voltage Run/Crank Ignition 1 Voltage |
II | except CZ2 CZ2 |
| 12 | 0.5 0.5 |
VT/YE YE |
5985 143 |
Accessory Wakeup Serial Data Accessory Voltage |
II | except CZ2 CZ2 |
| 13 | - | - | - | Not Occupied | - | - |
| 14 | 0.5 | WH | 2501 | High Speed GMLAN Serial Data Bus - | II | - |
| 15-16 | - | - | - | Not Occupied | - | - |
