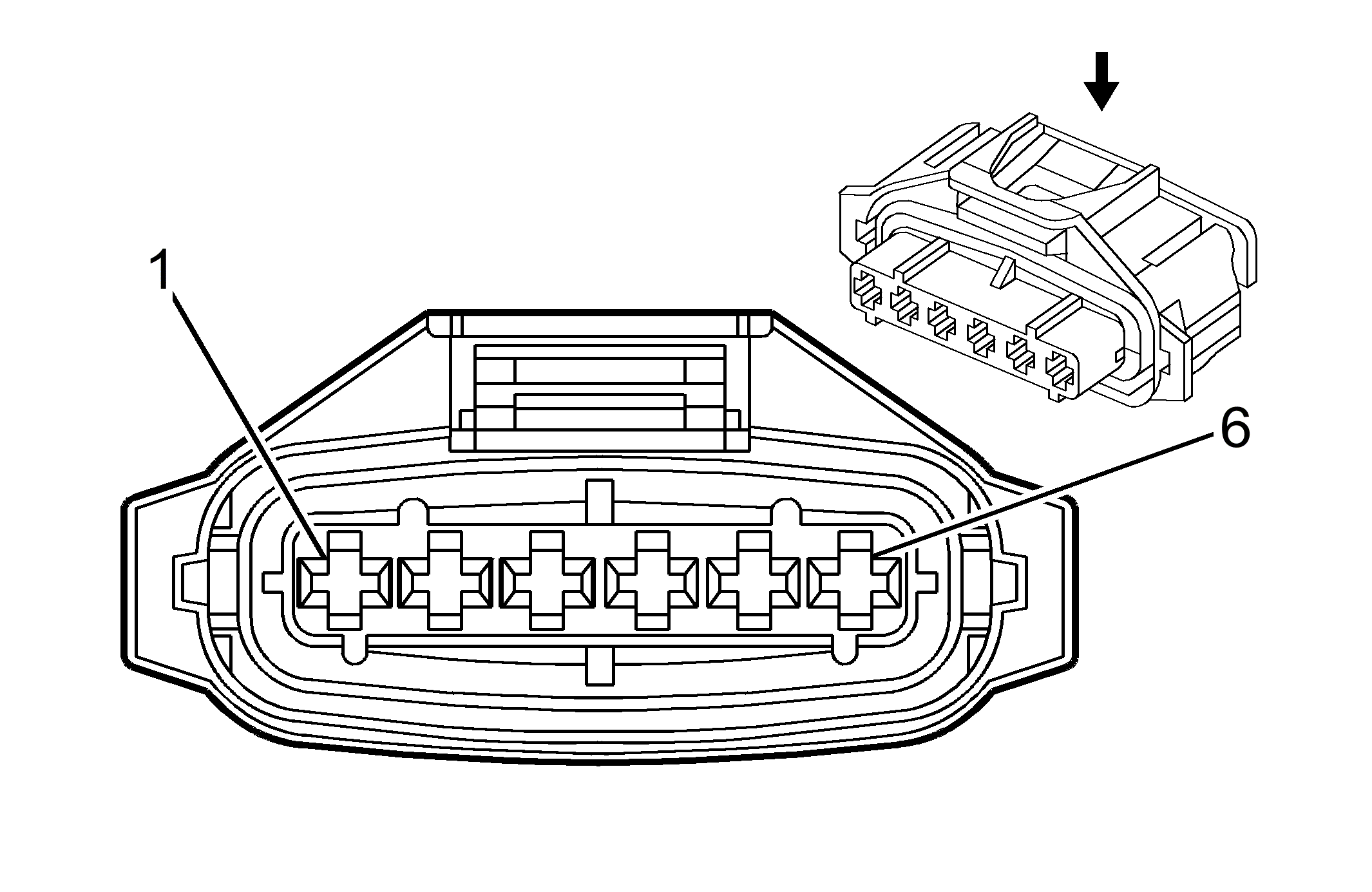

K35 Ignition Control Module (LLU)
WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 135676381 | J-35616-35 (VT) | J-38125-36 |
| II | 135676381 | J-35616-35 (VT) | J-38125-36 |
K35 Ignition Control Module (LLU)
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 1.5 | BK | 250 | Ground | I | - |
| 2 | 1 | RD/BU | 5290 | Powertrain Main Relay Fused Supply (1) | II | - |
| 3 | 0.75 | L-GN/BN | 2124 | Ignition Control (4) | II | - |
| 4 | 0.75 | BU/WH | 2123 | Ignition Control (3) | II | - |
| 5 | 0.75 | YE/BU | 2122 | Ignition Control (2) | II | - |
| 6 | 0.75 | BU/VT | 2121 | Ignition Control (1) | II | - |
