Release Systems (CZ2)

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

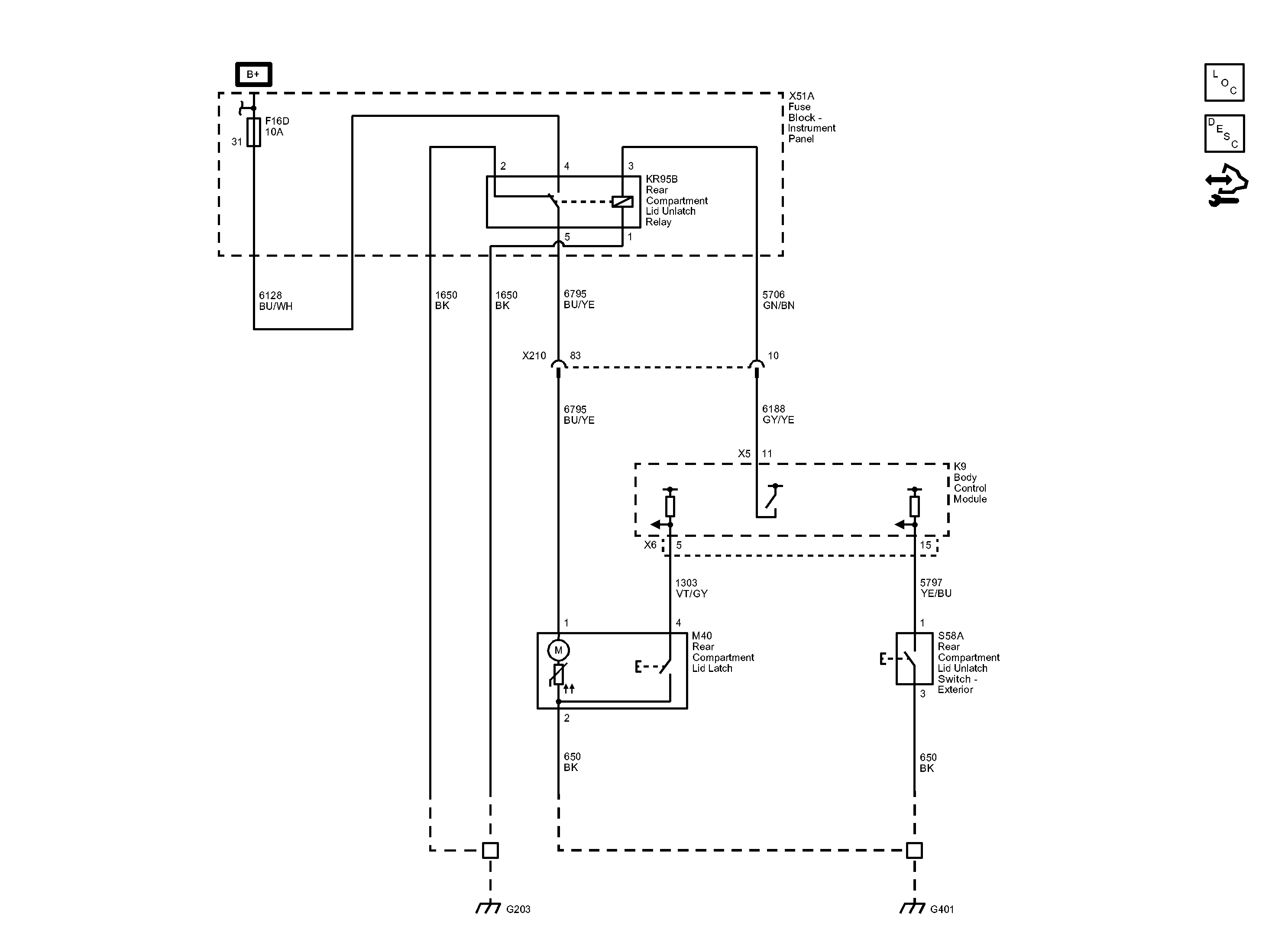

Fig 1: Release Systems Wiring Schematic (CZ2)
GM2898731Courtesy of GENERAL MOTORS COMPANY
