Section 324 (Cellular System, Entertainment System, And Navigation System)
>>
Schematic Wiring Diagrams
>>
OnStar Wiring Schematics
>>
Controls and Outputs - CZ2
Controls and Outputs - CZ2
WARNING:
This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

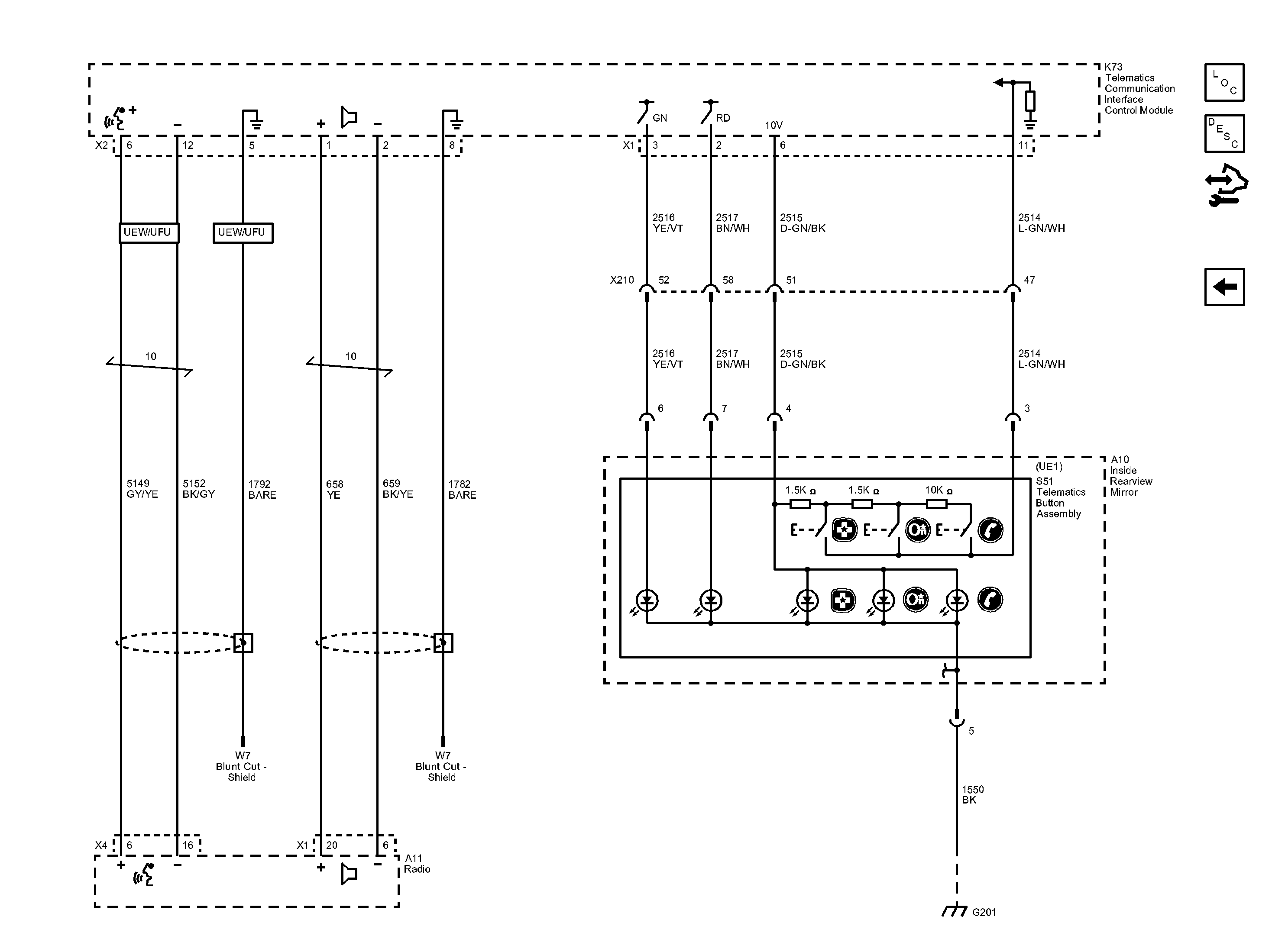

Fig 1: Controls and Outputs Wiring Schematic - CZ2
Courtesy of GENERAL MOTORS COMPANY
