Cellular Telephone Controls CZ2

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

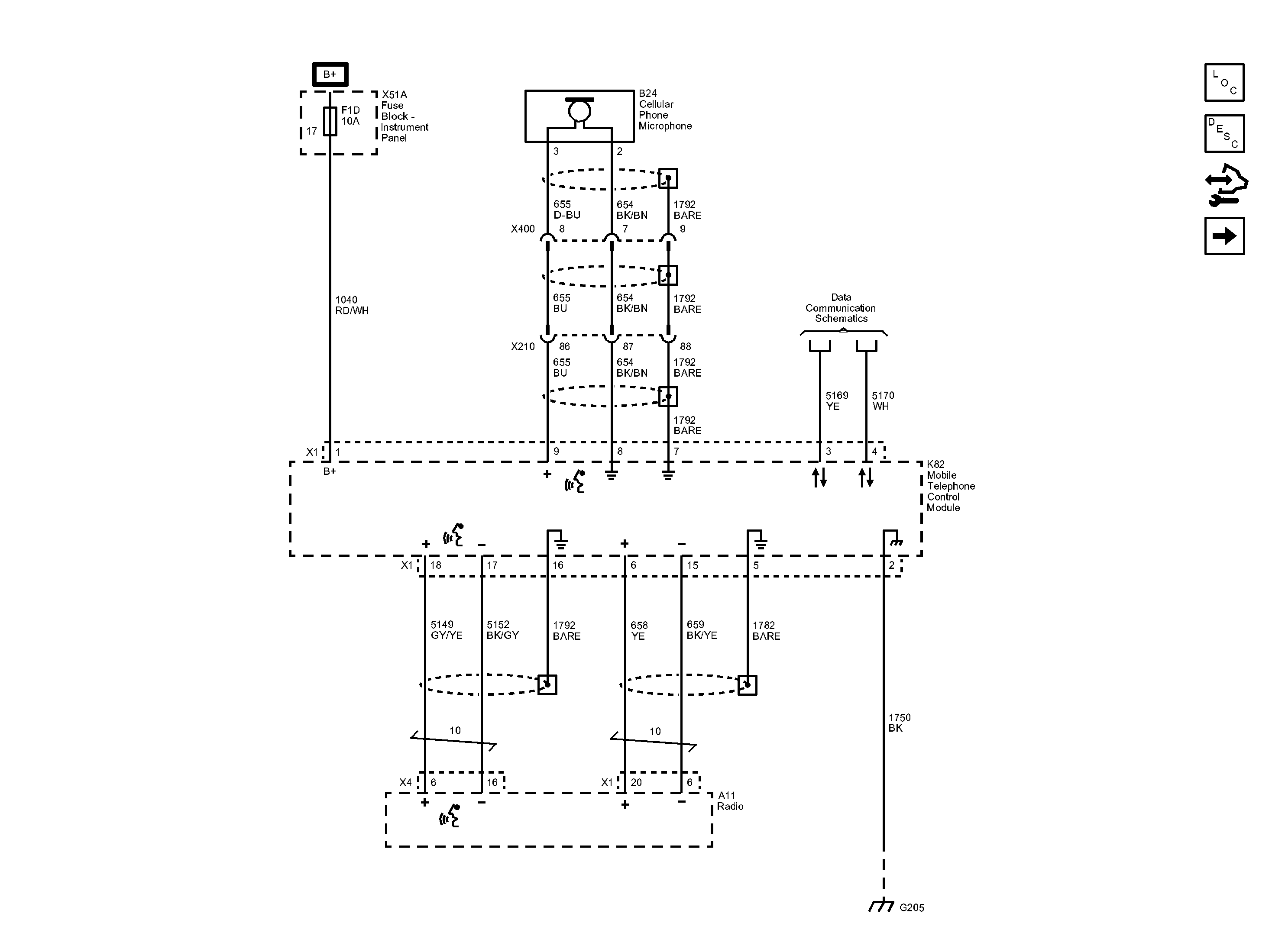

Fig 1: Cellular Telephone Controls Wiring Schematic CZ2
GM2813953Courtesy of GENERAL MOTORS COMPANY
