Wireless Communication Interface Antenna Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

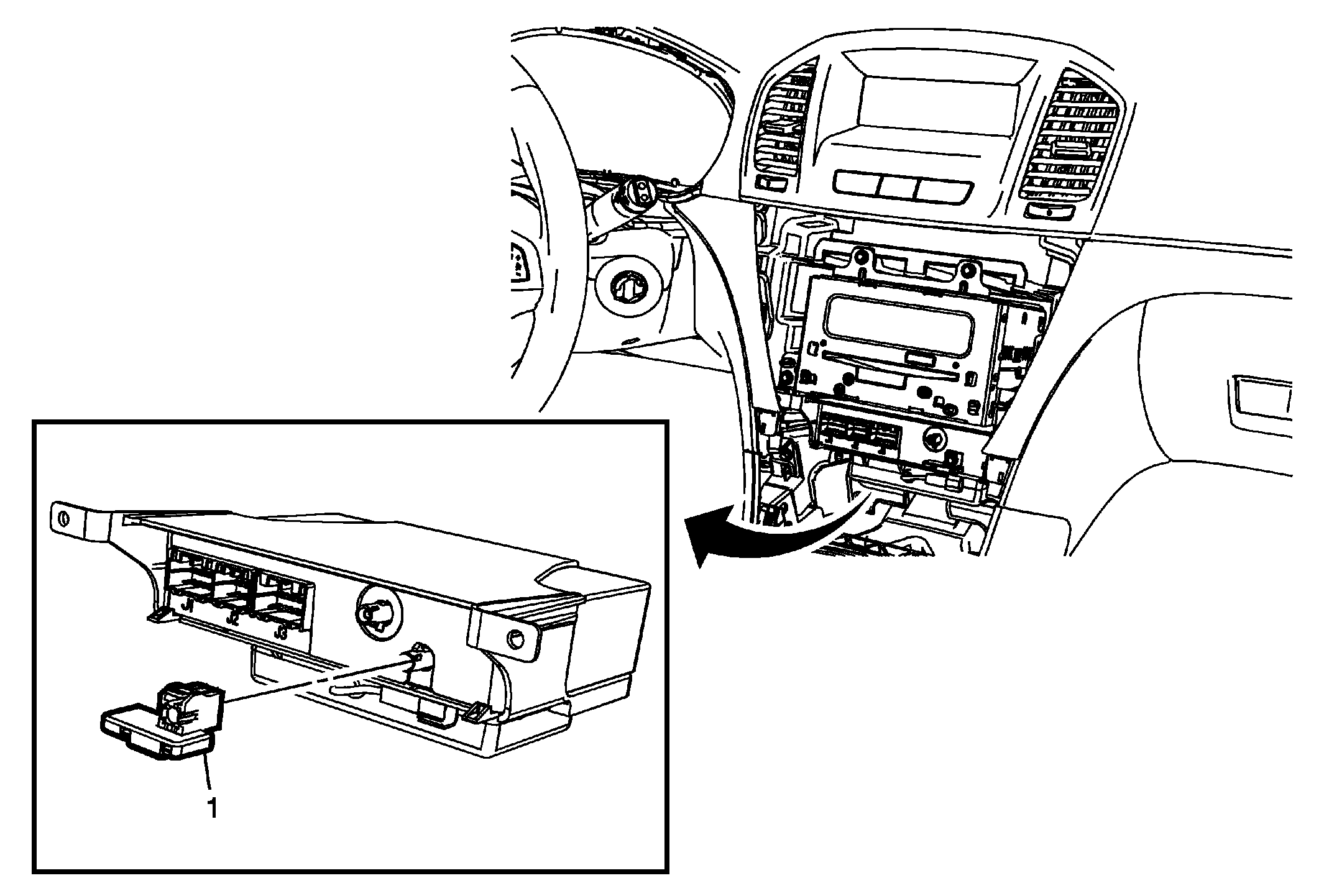

Fig 1: Wireless Communication Interface Antenna
GM2771824Courtesy of GENERAL MOTORS COMPANY
Wireless Communication Interface Antenna Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel ashtray housing. Refer to Instrument Panel Ashtray Housing Replacement .
1 Wireless Communication Interface Antenna
Procedure
Unsnap the antenna from the communication interface module.
