Sunshade Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

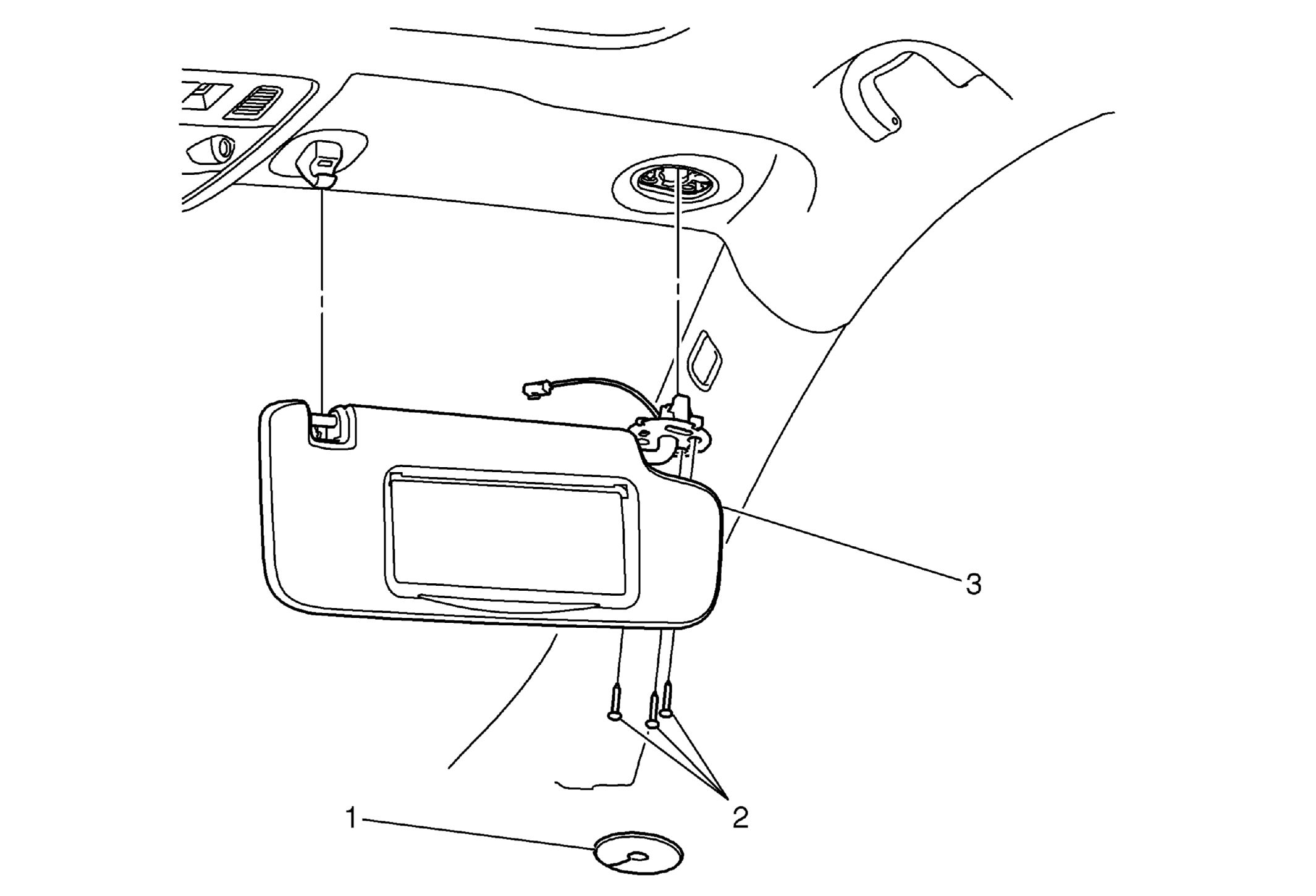

Fig 1: Sunshade & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the front of the headlining trim panel to access the sunshade electrical connector, if necessary. Refer to Headlining Trim Panel Replacement (With Sunroof) , Headlining Trim Panel Replacement (Without Sunroof) .
1	Sunshade Support Fastener Cover
2	Sunshade Fastener (Qty: 3) CAUTION: Refer to Fastener Caution .
3	Sunshade Assembly Procedure Disconnect the electrical connector. Remove the sunshade anchor from the roof by unsnapping, if needed.
