X83 Auxiliary Audio Input Connector End View

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

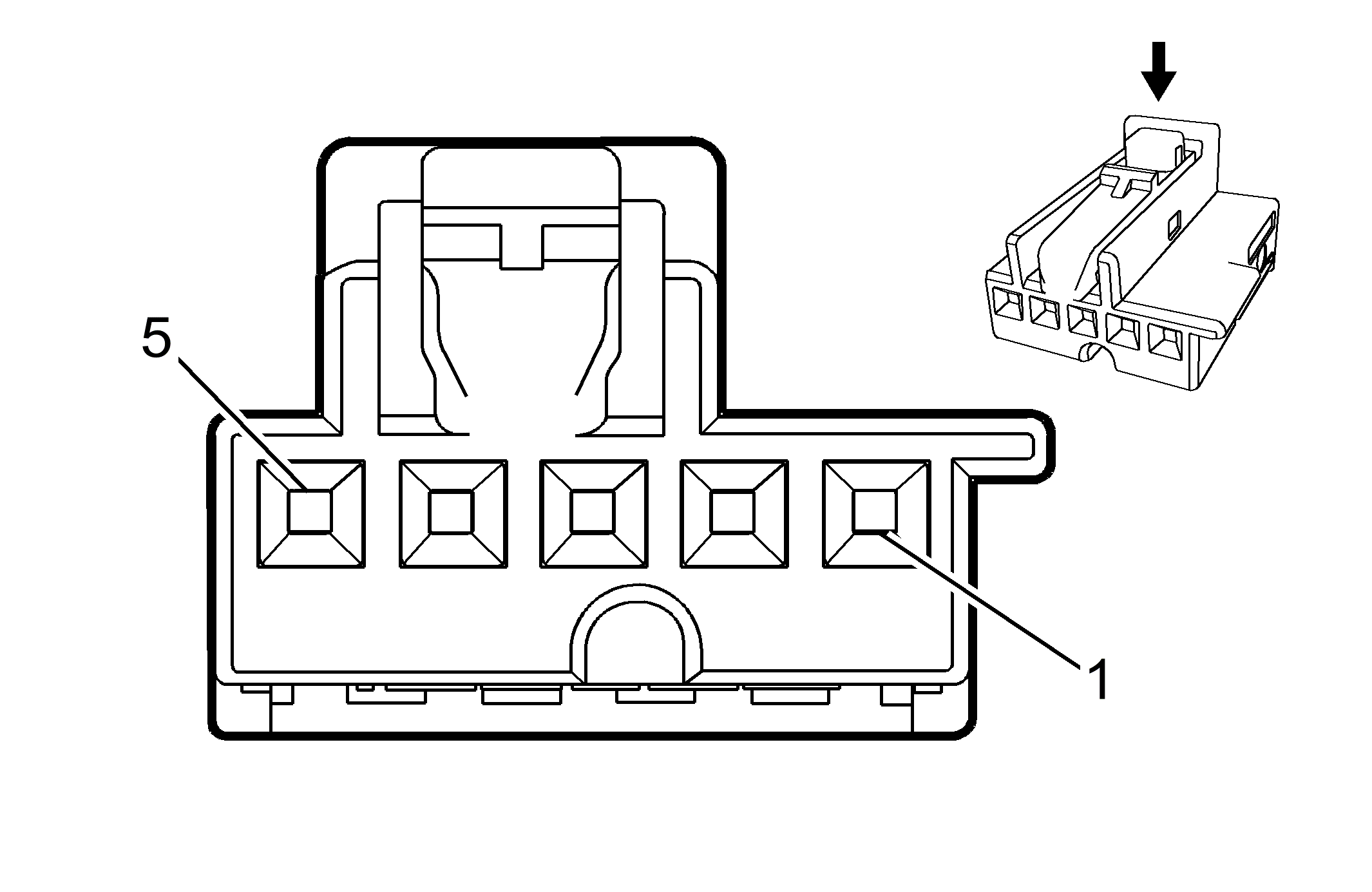

Fig 1: X83 Auxiliary Audio Input Connector End View
GM2173580Courtesy of GENERAL MOTORS CORP.
X83 Auxiliary Audio Input

Pin Color Circuit Function
1 0.35 D-BU 2060 Auxiliary Detection Signal
2 0.35 VT/WH 5839 Left Auxiliary Audio Signal (2)
3 - - Not Used
4 0.35 L-GN/WH 5841 Right Auxiliary Audio Signal (2)
5 0.35 BK/D-BU 5843 Auxiliary Audio Common Signal
Connector Part Information
  • Harness Type: Floor Console
  • OEM Connector: 13285253
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 5-Way F 64 MQS Series (BK)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: 12094429
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: 928999-5/15
  • Core/Insulation Crimp: H/H
