P13 Horn Assembly Connector End View

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

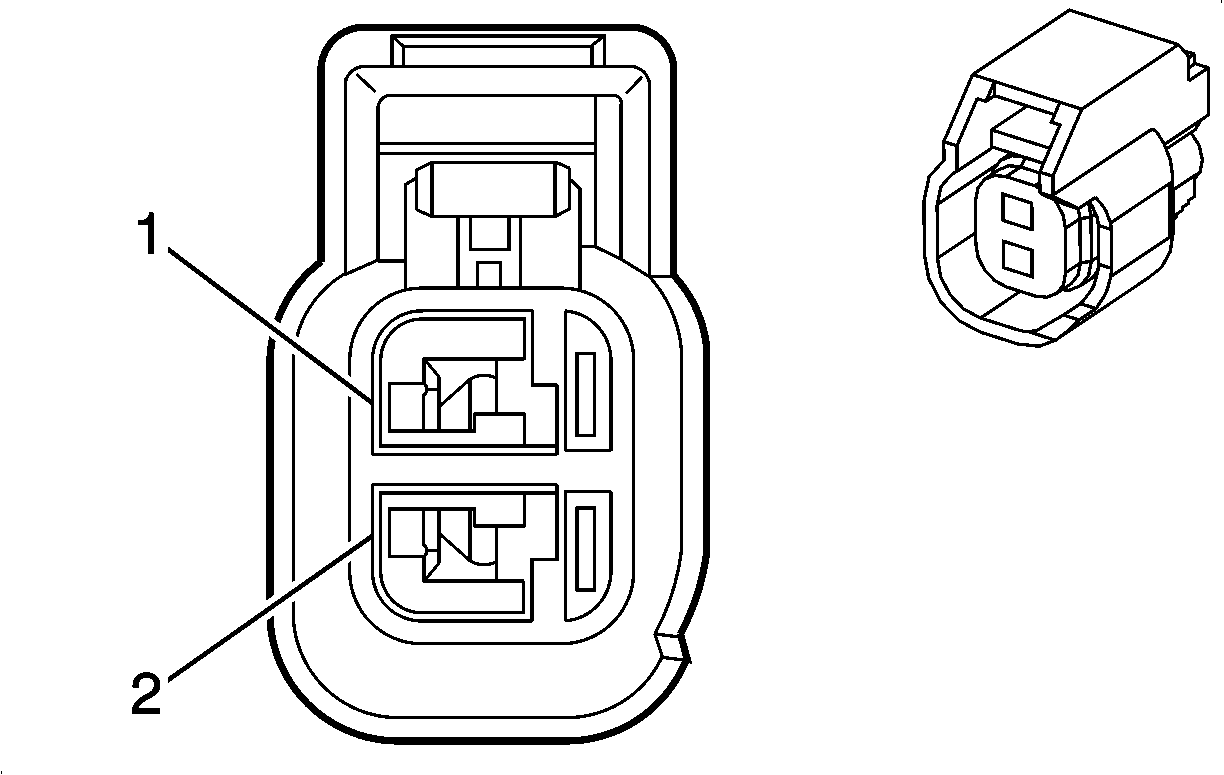

Fig 1: P13 Horn Assembly Connector End View
GM2179765Courtesy of GENERAL MOTORS CORP.
P13 Horn Assembly

Pin Color Circuit Function
1 1 BN 1350 Ground
2 1 BN/GY 29 Horn Control
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 88988857
  • Service Connector: 13314096
  • Description: 2-Way F GT 150 Series, Sealed (BK)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: 15315247
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: 2/1
