K77 Remote Control Door Lock Receiver Connector End View

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

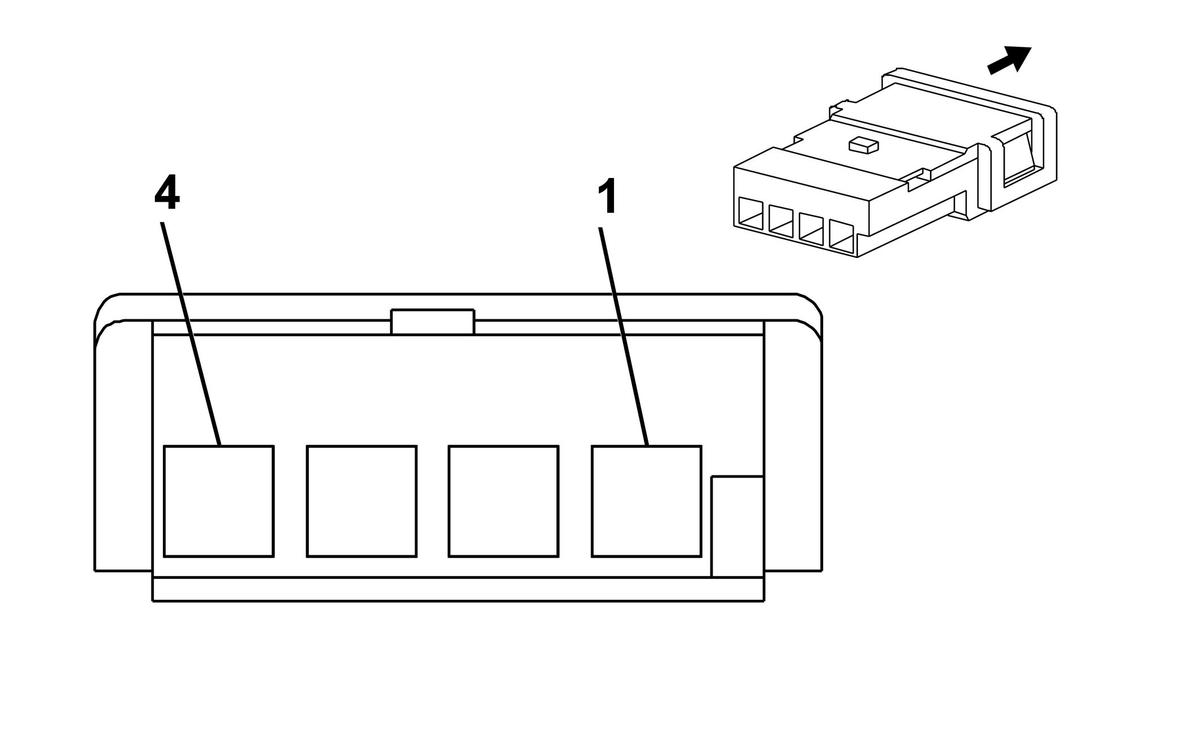

Fig 1: K77 Remote Control Door Lock Receiver Connector End View
GM872587Courtesy of GENERAL MOTORS CORP.
K77 Remote Control Door Lock Receiver

Pin Color Circuit Function
1 0.5 GY 3273 Remote Function Actuator Return
2 0.5 YE/D-GN 3274 Remote Function Actuator Transmit Signal
3 0.5 D-BU/WH 3275 Remote Function Actuator Receive Signal
4 0.5 GY/WH 3272 Remote Function Actuator Supply Voltage
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 9130527
  • Service Connector: 13576534
  • Description: 4-Way F 64 MQS Series (BK)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: 12094429
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: 928999-5/15
  • Core/Insulation Crimp: J/J
