Installation Procedure

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

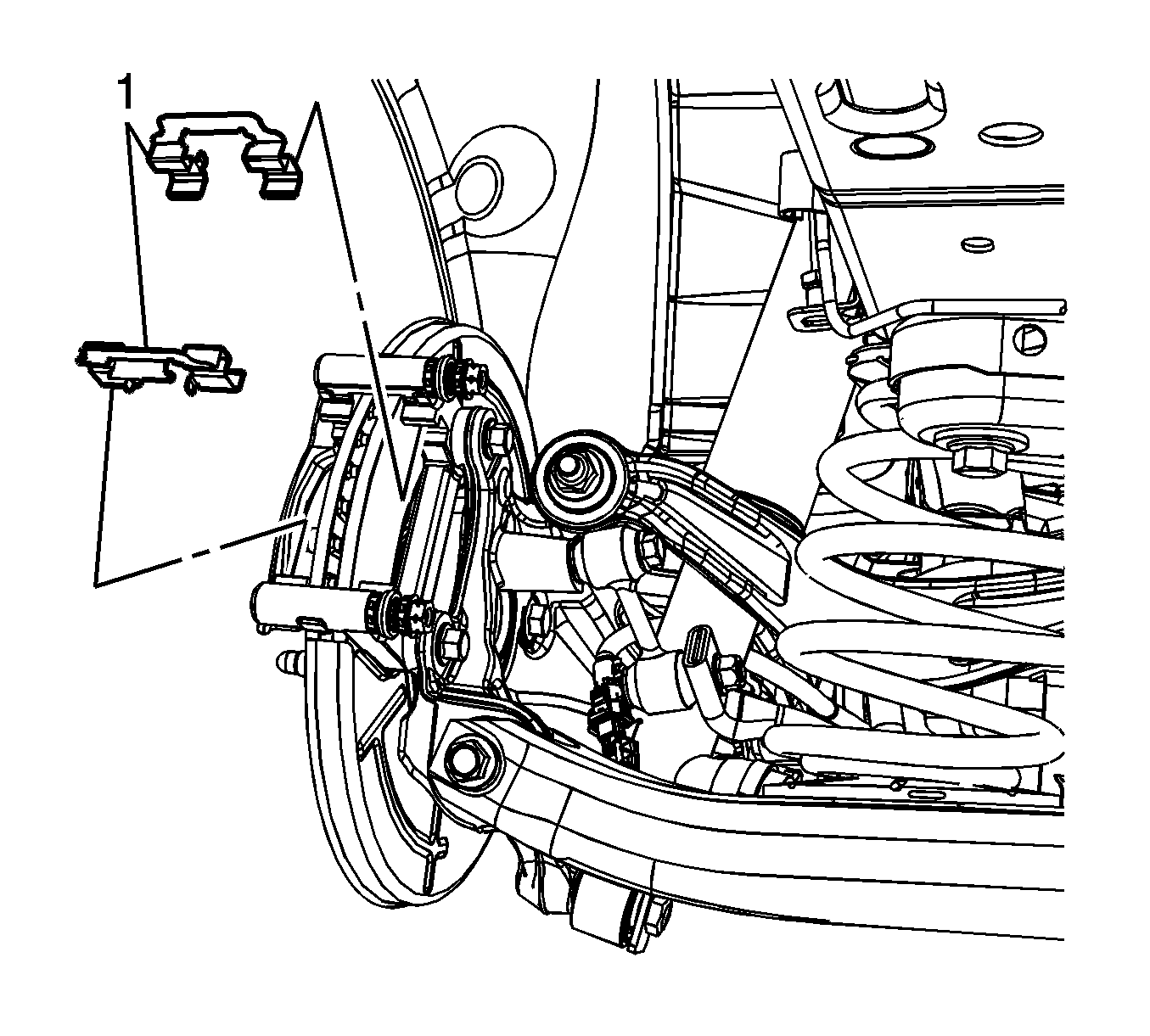

    Fig 1: Brake Pad Springs
    GM2332718Courtesy of GENERAL MOTORS CORP.
    NOTE: If installing new brake pads, install new springs.
  1. Install new brake pad springs (1).

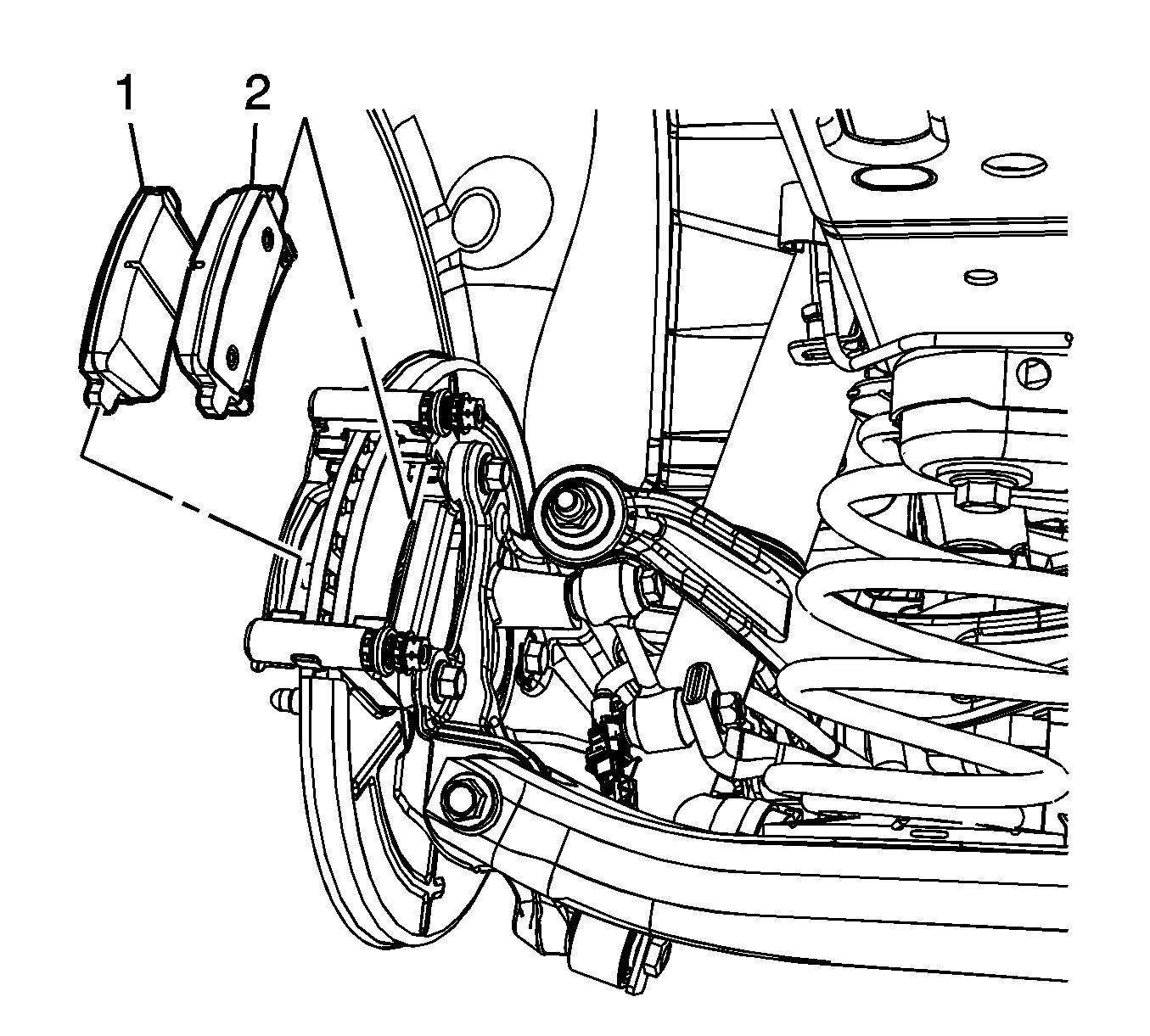

    2. Fig 2: Outer & Inner Brake Pads
    GM2332717Courtesy of GENERAL MOTORS CORP.
  2. Install the outer brake pad (1).
    3. NOTE: The inner brake pad is equipped with the wear sensor.
  3. Install the inner brake pad (2).

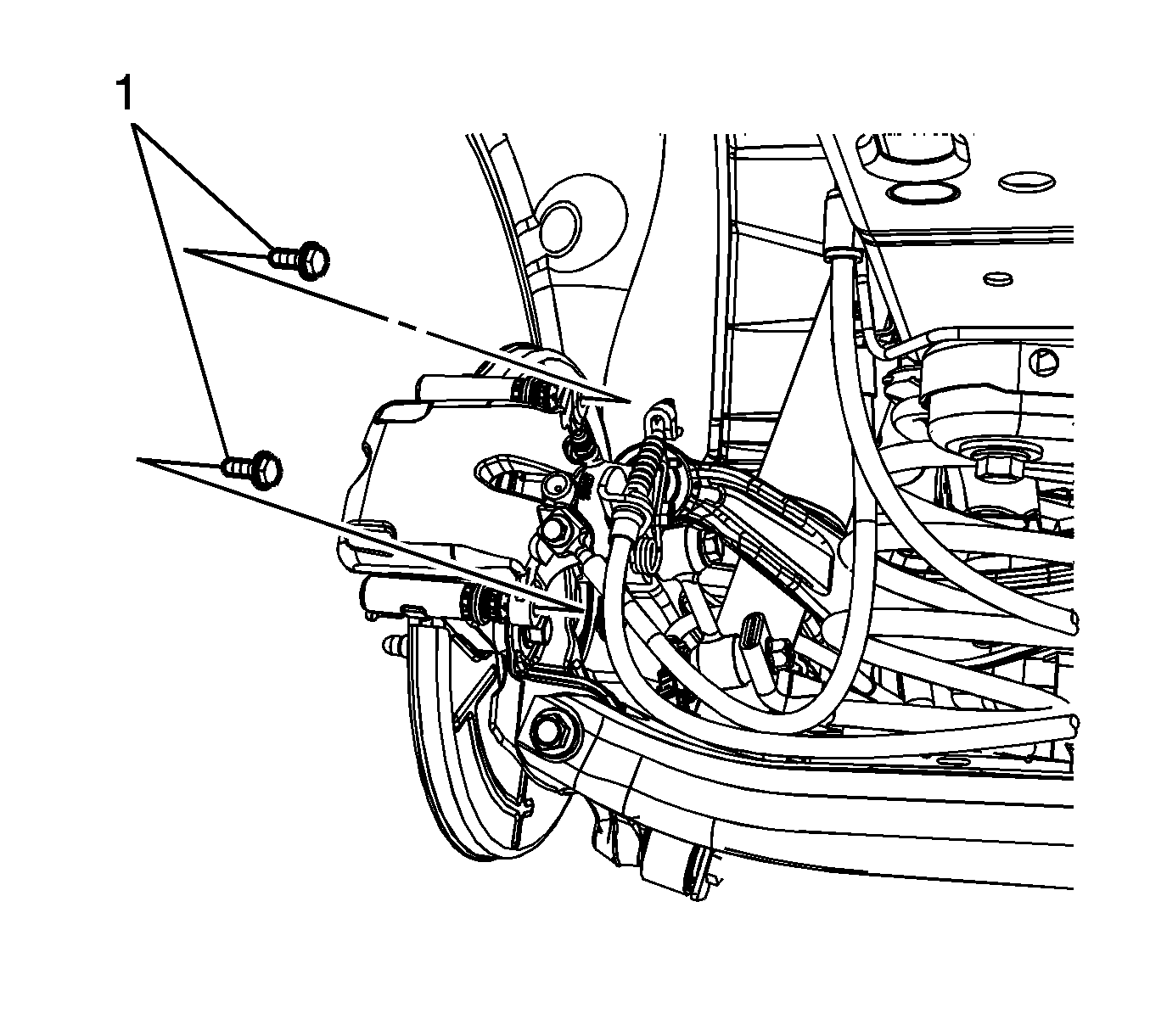

    4. Fig 3: Brake Caliper Guide Pin Bolts
    GM2332715Courtesy of GENERAL MOTORS CORP.
  4. Install the brake caliper to the brake caliper bracket.
    5. CAUTION: Refer to Fastener Caution .
  5. Using a backup wrench to hold the brake caliper guide pin stationary, install the brake caliper guide pin bolts (1) and tighten to 27 N.m (20 lb ft).
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  7. With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
  8. Slowly release the brake pedal.
  9. Wait 15 seconds, then repeat steps 7-8 until a firm brake pedal is obtained. This will properly seat the brake caliper piston and brake pads.
  10. Fill the master cylinder reservoir. Refer to Master Cylinder Reservoir Filling .
  11. Burnish the brake pads and rotors. Refer to Brake Pad and Rotor Burnishing .
