Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

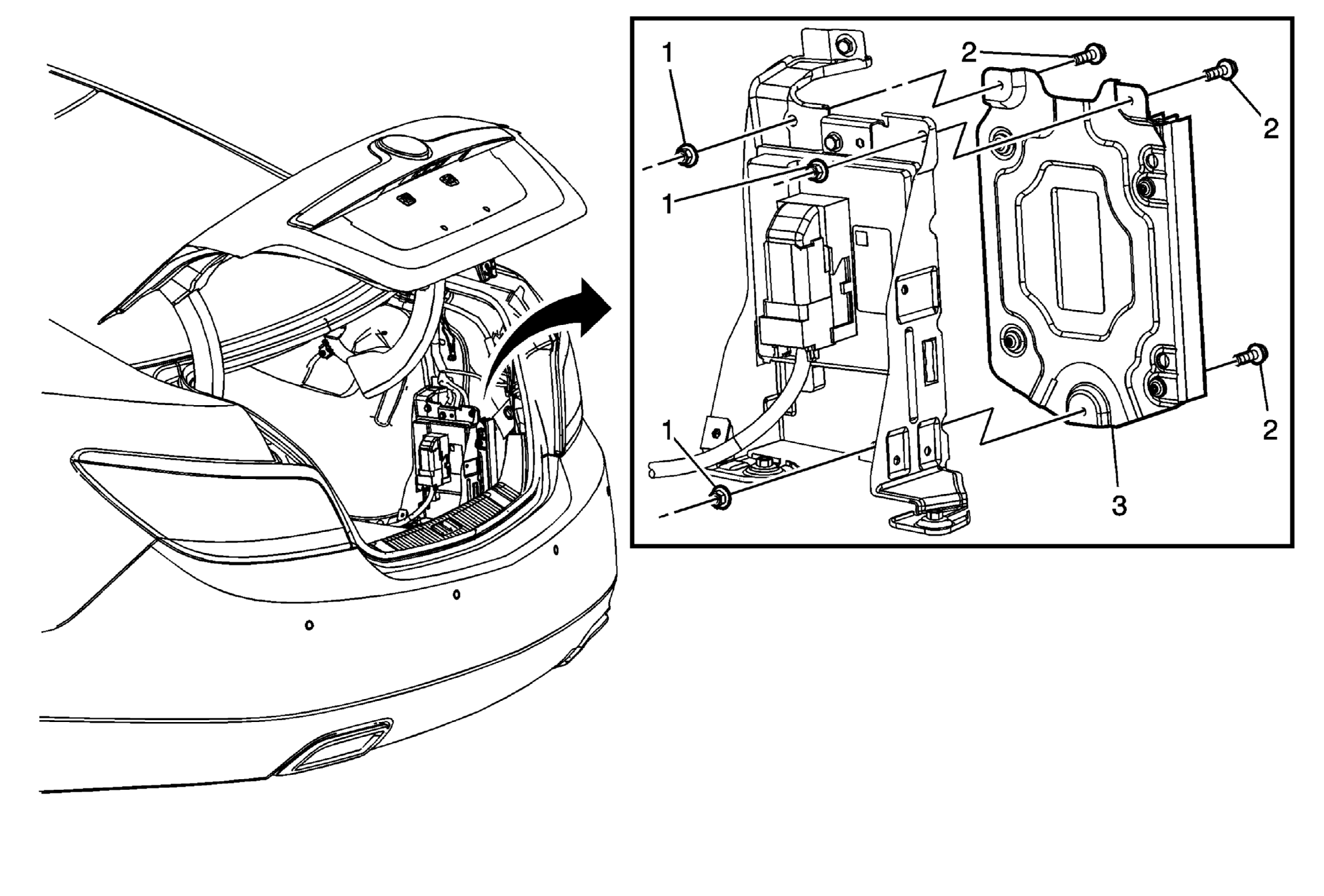

Fig 1: Radio Speaker Amplifier

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement .
1	Radio Speaker Amplifier Nut (Qty: 3)
2	Radio Speaker Amplifier Assembly Procedure Disconnect the electrical connectors. For programming and set up information, refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement .

Radio Speaker Amplifier Nut (Qty: 3)

Radio Speaker Amplifier Assembly

Procedure

Disconnect the electrical connectors.
For programming and set up information, refer to Control Module References .
