Radio Rear Compartment Speaker Replacement
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

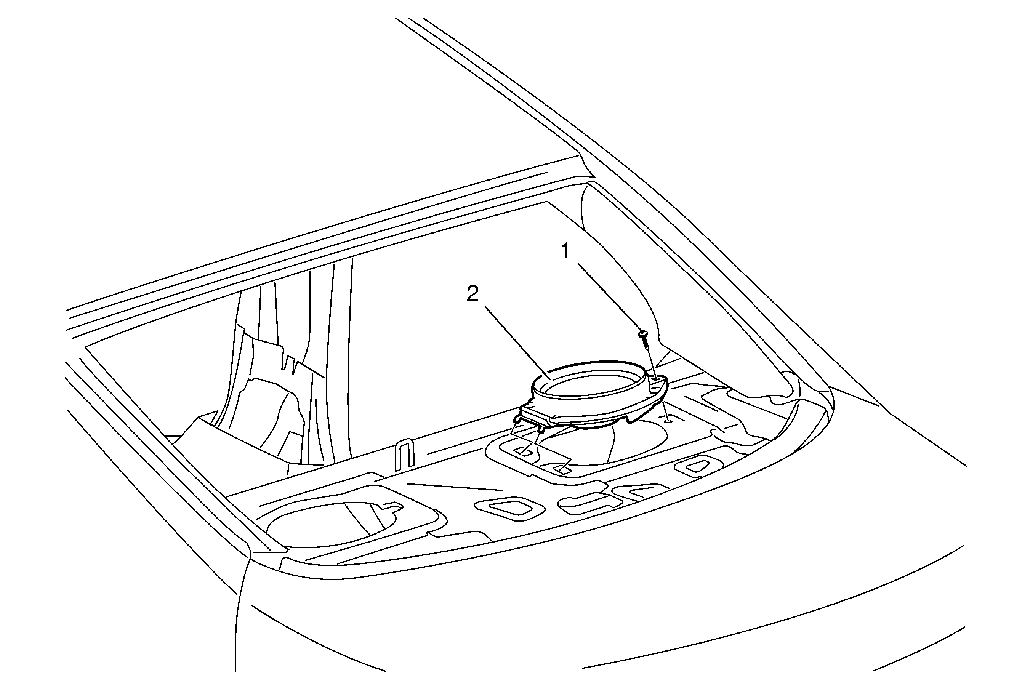

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear window trim finish panel. Refer to Rear Window Trim Finish Panel Replacement . |
|
| 1 | Radio Rear Compartment Speaker Fastener
CAUTION:
Refer to Fastener Caution
.
|
| 2 | Radio Rear Compartment Speaker Procedure: Disconnect the radio rear compartment speaker electrical connector. |
