Audio Disc Player and USB Receptacle Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

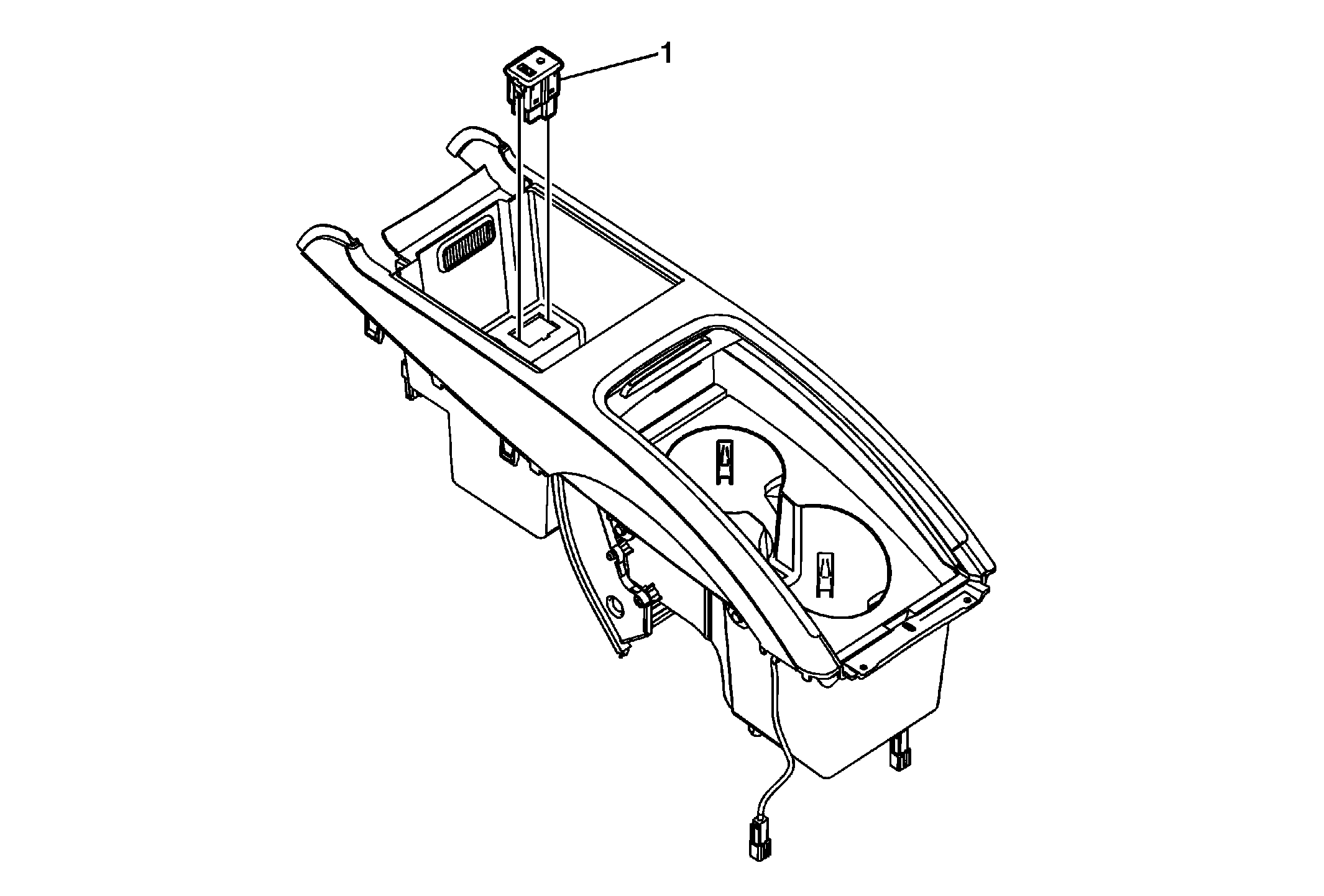

Fig 1: Audio Disc Player & USB Receptacle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .
1	Audio Disc Player and USB Receptacle Procedure: Depress the tabs and remove the receptacle from the rear compartment. Tip: The rear compartment does not need to be removed from the front floor console cup holder housing to remove the receptacle.
