Remote Enable Output
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
The remote enable circuit is a discrete 12 V signal supplied to infotainment system components when the radio is producing audio, needs the front display on, needs video entertainment system components on, or needs to produce chimes. This signal is used to control the power state of the components. There is no output on radio the remote enable circuit when the vehicle is in the CRANK powermode, this is to minimize current consumption from the attached modules and also to avoid audio pops during crank events.

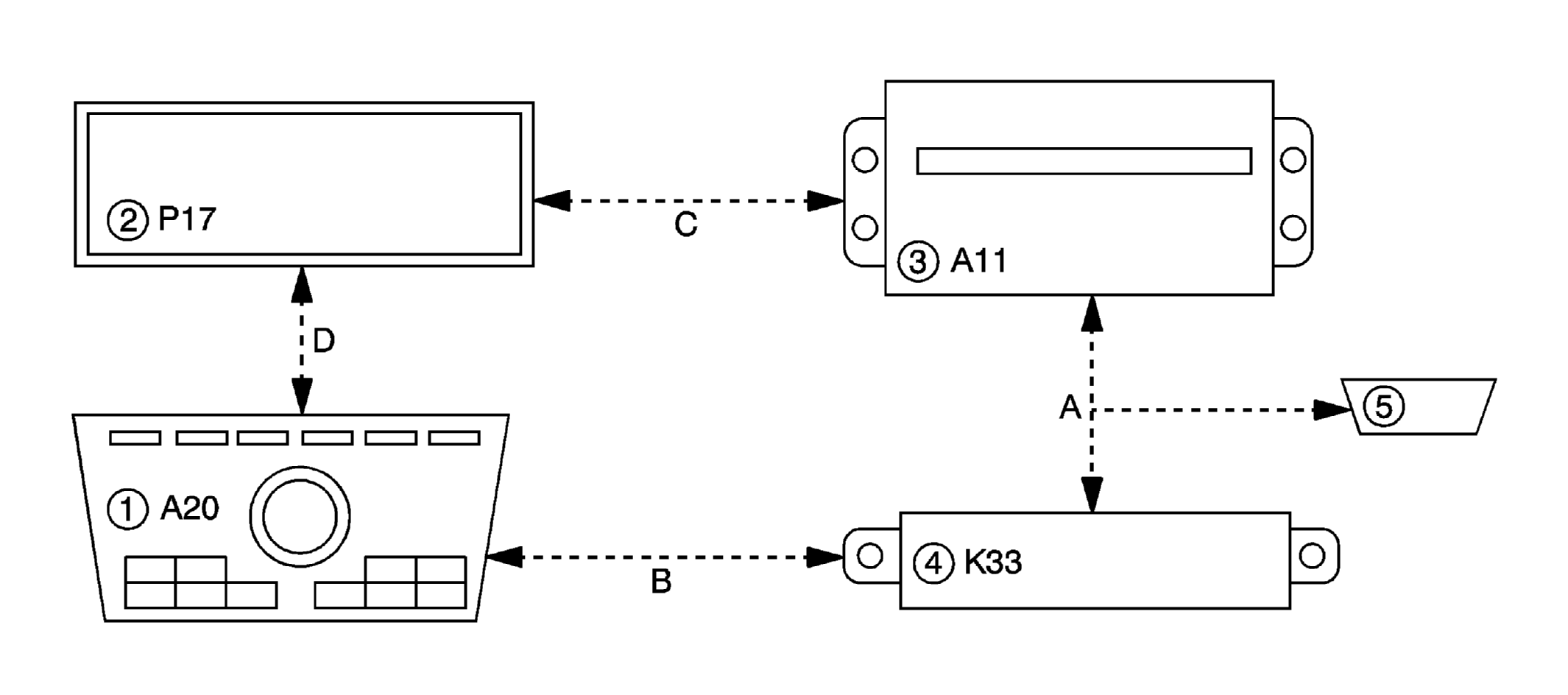

| Callout | Component Name |
|---|---|
| 1 | Radio/HVAC Controls |
| 2 | Info Display Module |
| 3 | Radio |
| 4 | HVAC Control Module |
| 5 | Data Link Connector |
| a | GMLAN |
| b | Local Interconnect Network-HVAC |
| c | CAN Graphical Interface |
| d | Local Interconnect Network-Radio |
