Navigation Radio
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
The navigation radio is located in the center of the instrument panel. The navigation radio provides the following:
- A hard disk drive that stores map data for navigation and map route guidance.
- Digital video signals to the info display module screen.
- Traffic and weather information for display on the navigation system map (with active subscription, where available).
- Provides verbal guidance to the operator.
- Connection to the global positioning system (GPS) antenna, which provides the vehicle position information.

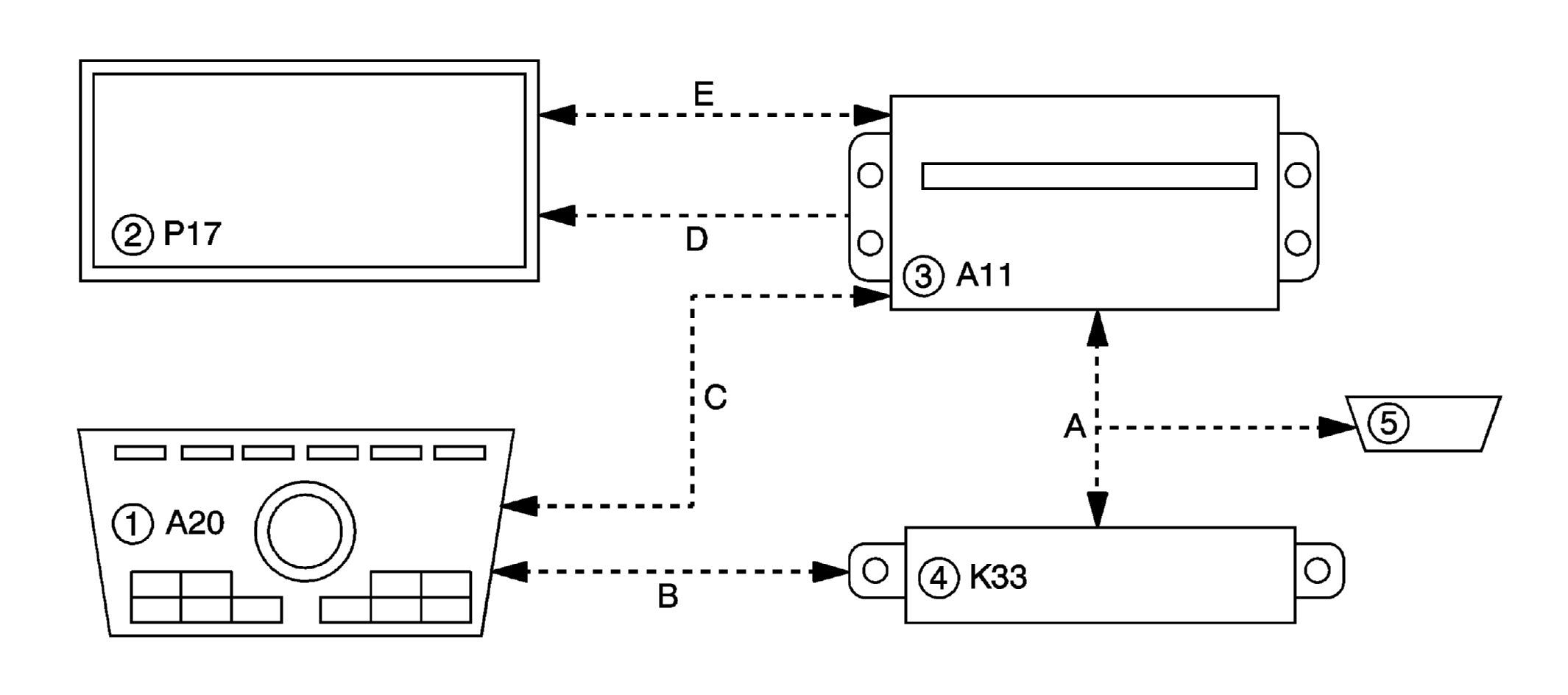

| Callout | Component Name |
|---|---|
| 1 | Radio/HVAC Controls |
| 2 | Info Display Module |
| 3 | Radio |
| 4 | HVAC Control Module |
| 5 | Data Link Connector |
| a | GMLAN |
| b | Local Interconnect Network |
| c | CAN Graphical Interface |
| d | Digital Video |
| e | Touch Screen Serial Data |
