Outside Rearview Mirror Inner Actuator Replacement
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

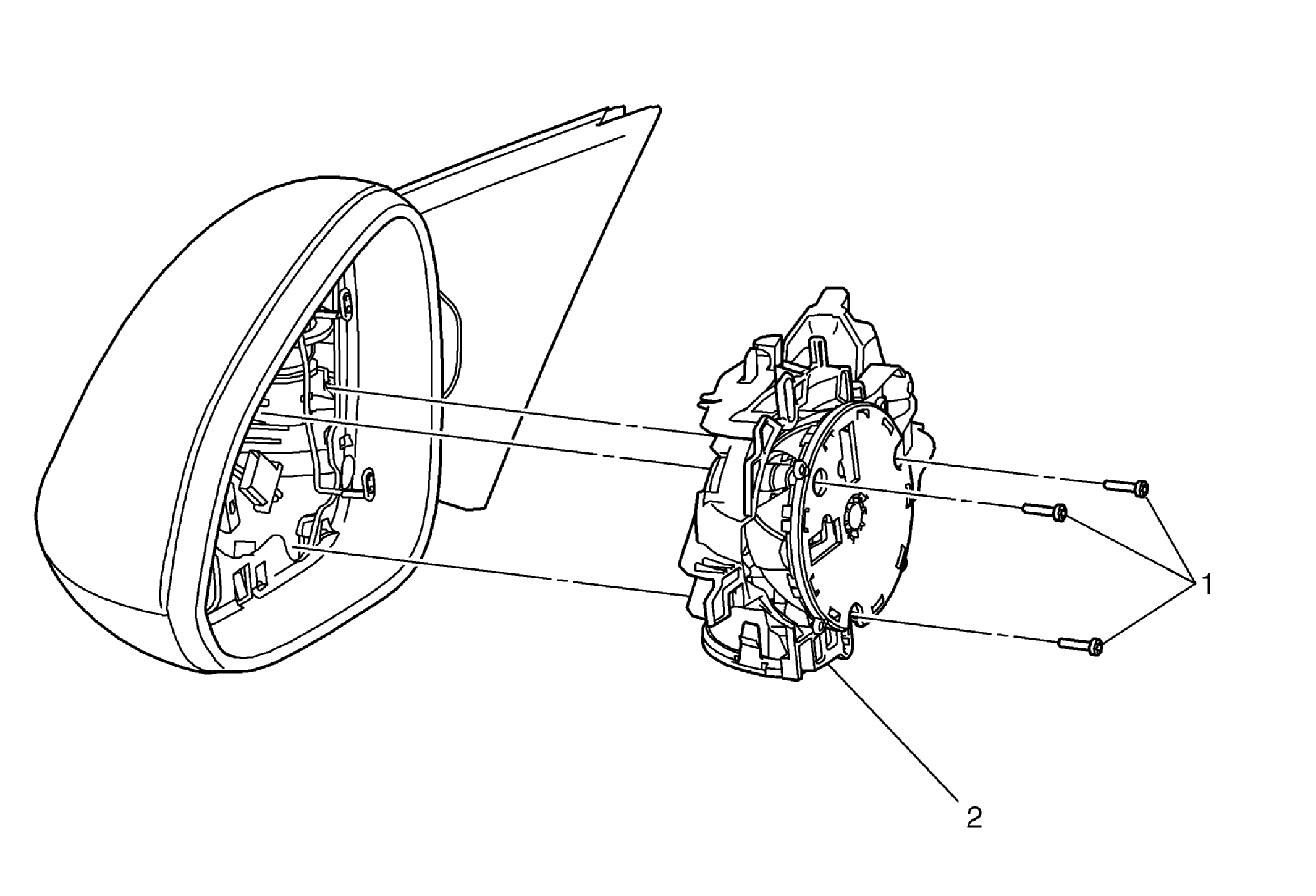

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement . |
|
| 1 | Outside Rearview Mirror Inner Actuator Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution
. Procedure: Disconnect the mirror electrical connector. |
| 2 | Outside Rearview Mirror Inner Actuator |
