Windshield Washer Nozzle Replacement
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the air inlet grille panel assembly. Refer to Air Inlet Grille Panel Replacement . |
|

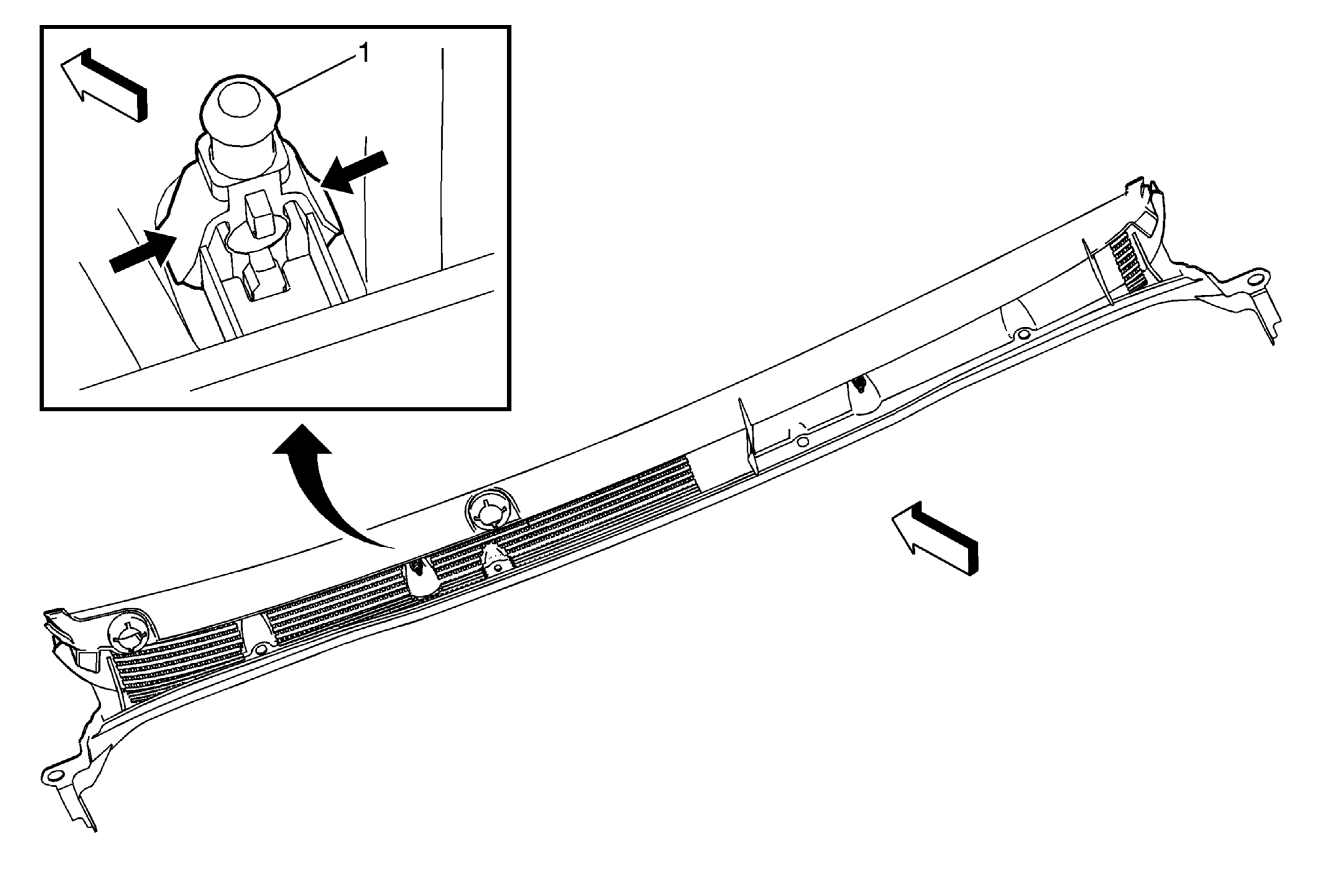

| 1 | Windshield Washer Nozzle (Qty: 2) Tip: Depress the two washer nozzle tabs and push outward in order to remove the nozzle from the air inlet grille panel assembly. |
