Installation Procedure
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
- Install the NEW wheel stud into the wheel bearing hub.

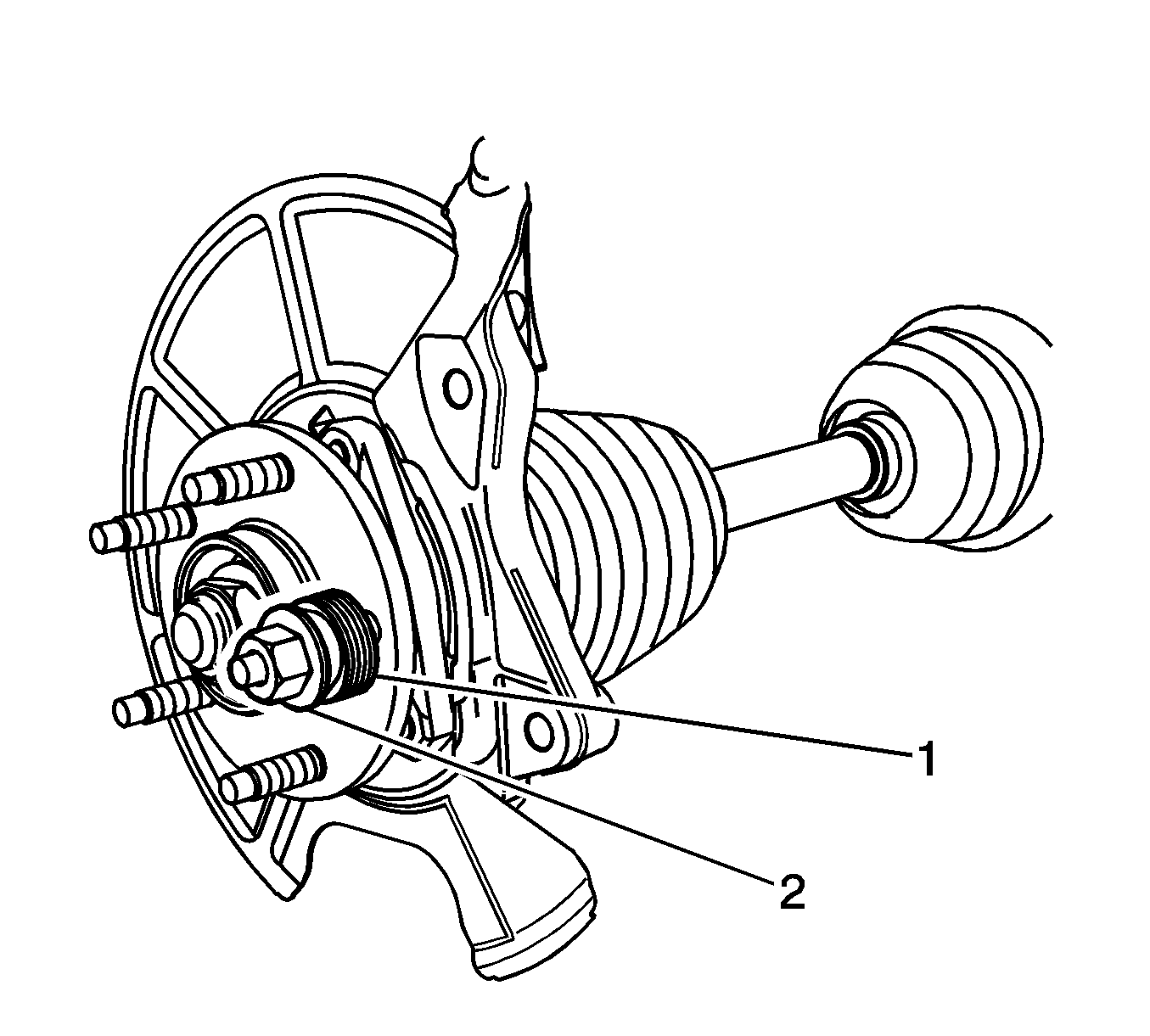

- Add enough washers (1) in order to draw the stud into the hub.
- Install the wheel nut (2) with the flat side against the washers.
- Tighten the wheel nut (2) until the head of the wheel stud is fully seated against the back of the bearing hub flange.
- Remove the wheel nut (2) and the washers (1).
- Install the bearing hub, refer to Front Wheel Bearing and Hub Replacement (GNA) .
- Install the brake rotor, and install the brake caliper and bracket as an assembly. Refer to Front Brake Rotor Replacement .
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Lower the vehicle.
