Front Lower Control Arm Rear Bushing Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

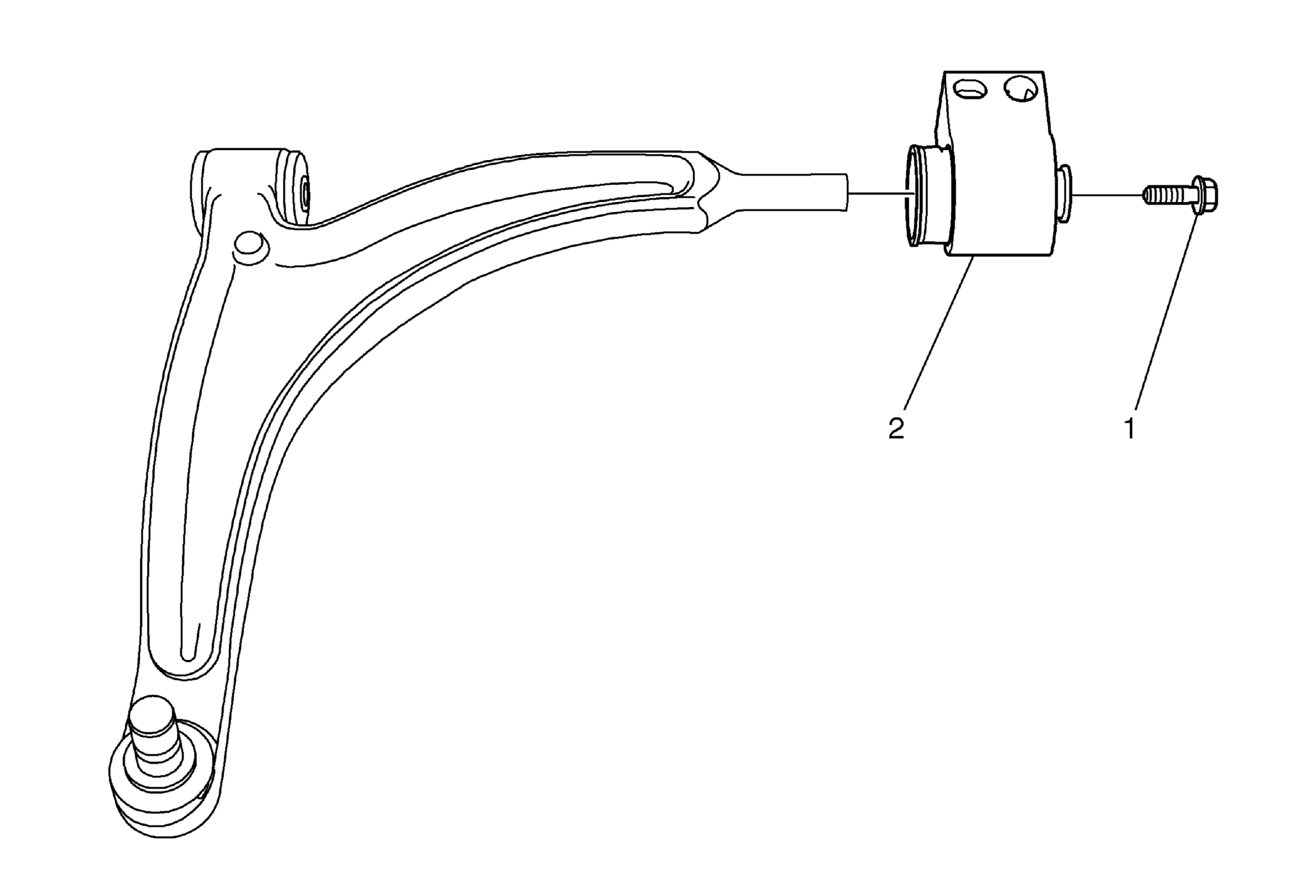

Fig 1: Front Lower Control Arm Rear Bushing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the lower control arm. Refer to Lower Control Arm Replacement (GNA) .
1	Front Lower Control Arm Bushing Bolt CAUTION: Refer to Fastener Caution . Procedure: Discard and replace the front lower control arm bushing bolt with NEW only. Tighten: 55 N.m (41 lb ft) + 90°
2	Front Lower Control Arm Bushing

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the lower control arm. Refer to Lower Control Arm Replacement (GNA) .

Front Lower Control Arm Bushing Bolt

CAUTION: Refer to Fastener Caution .

Procedure:
Discard and replace the front lower control arm bushing bolt with NEW only.

Tighten: 55 N.m (41 lb ft) + 90°

Front Lower Control Arm Bushing
