Headlamp Bracket Replacement
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

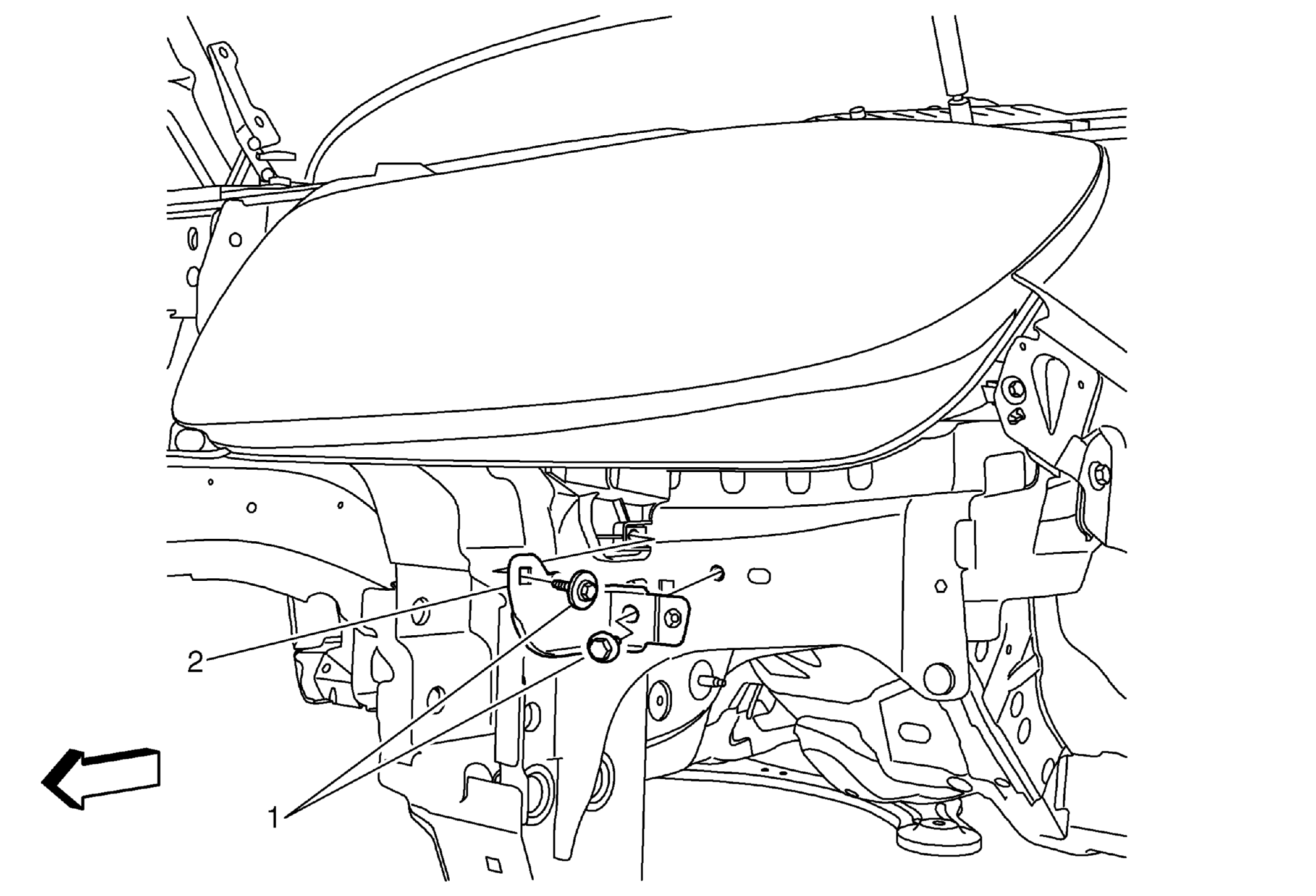

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Headlamp Bracket Fastener (Qty: 2) Procedure: Hand tighten the fasteners only. |
| 2 | Headlamp Bracket |
