Installation Procedure

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

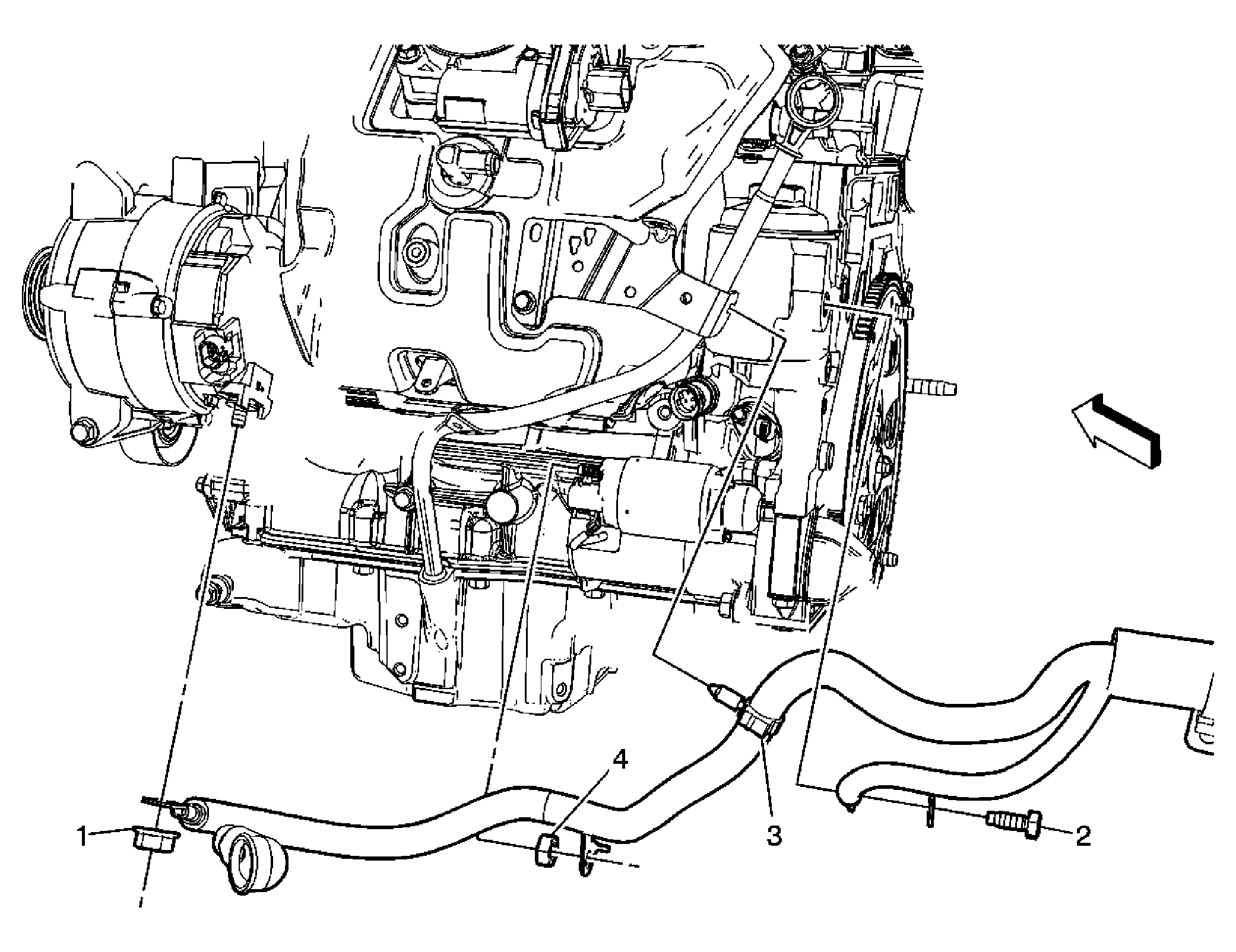

    Fig 1: Battery Cable Components
    GM2212087Courtesy of GENERAL MOTORS CORP.
  1. Install the retainers that hold the battery cable harness to the battery tray.
  2. Install the battery cable harness to the oil tube indicator bracket with retainer (3).
    3. CAUTION: Refer to Fastener Caution .
  3. Install the negative battery cable terminal and bolt (2) to the left rear cylinder head. Tighten to 25 N.m (18 lb ft).
  4. Install the battery positive cable terminal and nut (4) to the starter solenoid. Tighten to 10 N.m (88 lb in).
  5. Install the battery positive cable terminal and nut (1) to the back of the generator. Tighten to 15 N.m (11 lb ft).
    6. Fig 2: Battery Negative Cable/Terminal
    GM2202529Courtesy of GENERAL MOTORS CORP.
  6. Install the battery negative cable terminal (2) and nut (1) to the left front frame rail. Tighten to 25 N.m (18 lb ft).
    7. Fig 3: Battery Fuse Block Components
    GM2195932Courtesy of GENERAL MOTORS CORP.
  7. Install the positive battery cable terminal and nut (2) to the battery fuse block. Tighten to 12 N.m (106 lb in).
  8. Close battery fuse block cover (1) and install battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
