A23P Door Latch Assembly - Passenger Connector End View

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

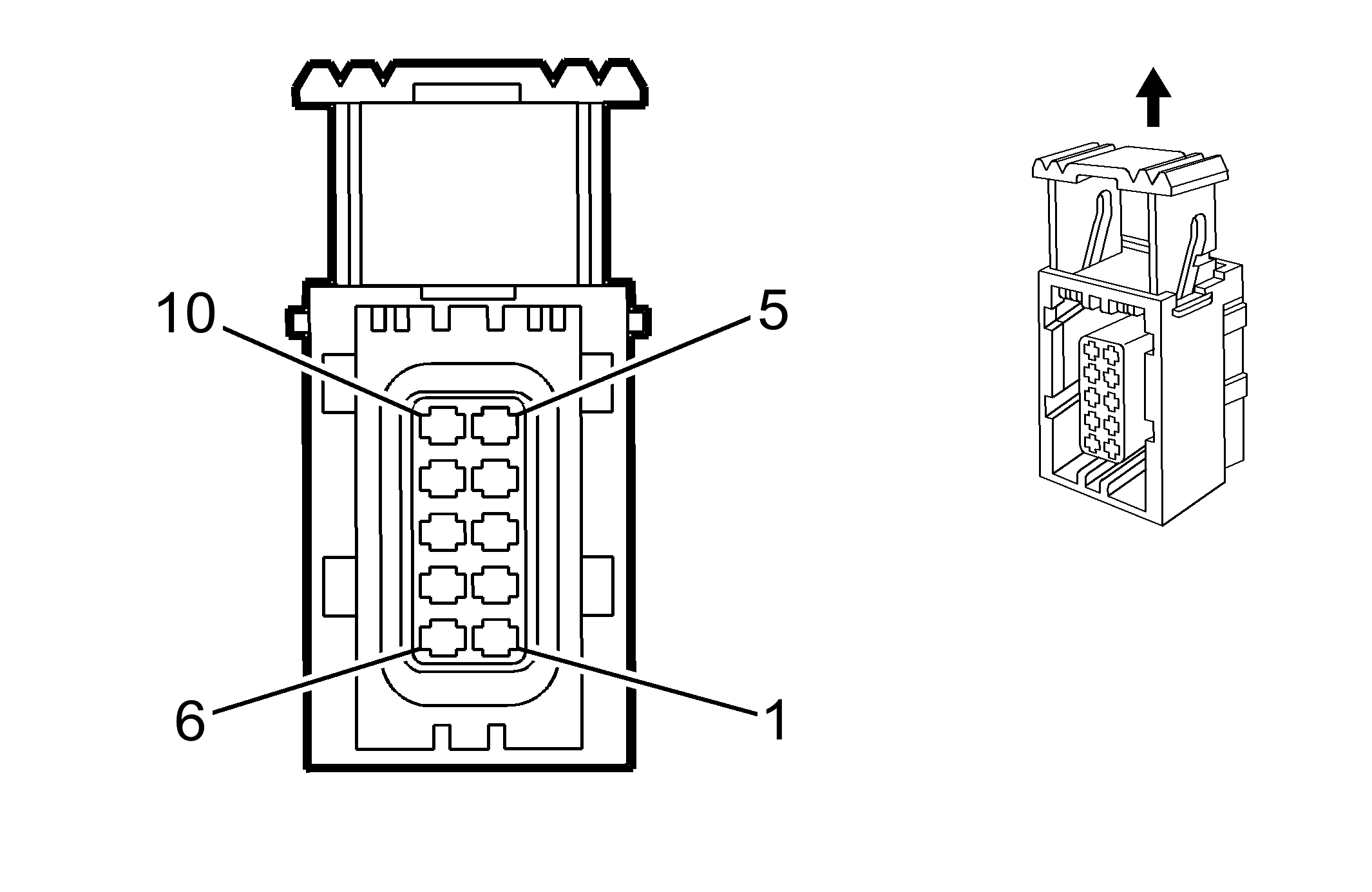

Fig 1: A23P Door Latch Assembly - Passenger Connector End View

Courtesy of GENERAL MOTORS CORP.

A23P Door Latch Assembly - Passenger

Pin	Color	Circuit	Function
1	0.5 GY	746	Right Front Door Ajar Switch Signal
2	-	-	Not Used
3	0.75 BK	2050	Ground
4-5	-	-	Not Used
6	0.75 BN	5910	Door Double Lock Actuator Lock Control
7	0.75 BN/YE	294	Door Lock Actuator Unlock Control
8	0.75 WH/RD	295	Door Lock Actuator Lock Control
9-10	-	-	Not Used

Connector Part Information

Harness Type: Passenger Door
OEM Connector: 24414904
Service Connector: 24414904
Description: 10-Way F 1.2 Timer Micro II Series, Sealed (BK)

Terminal Part Information

Terminated Lead: Pending
Release Tool: J-38125-560
Diagnostic Test Probe: J-35616-14 (GN)
Terminal/Tray: 964274-2/16
Core/Insulation Crimp: E/1
