Linear Interconnect Network Wiring Schematics

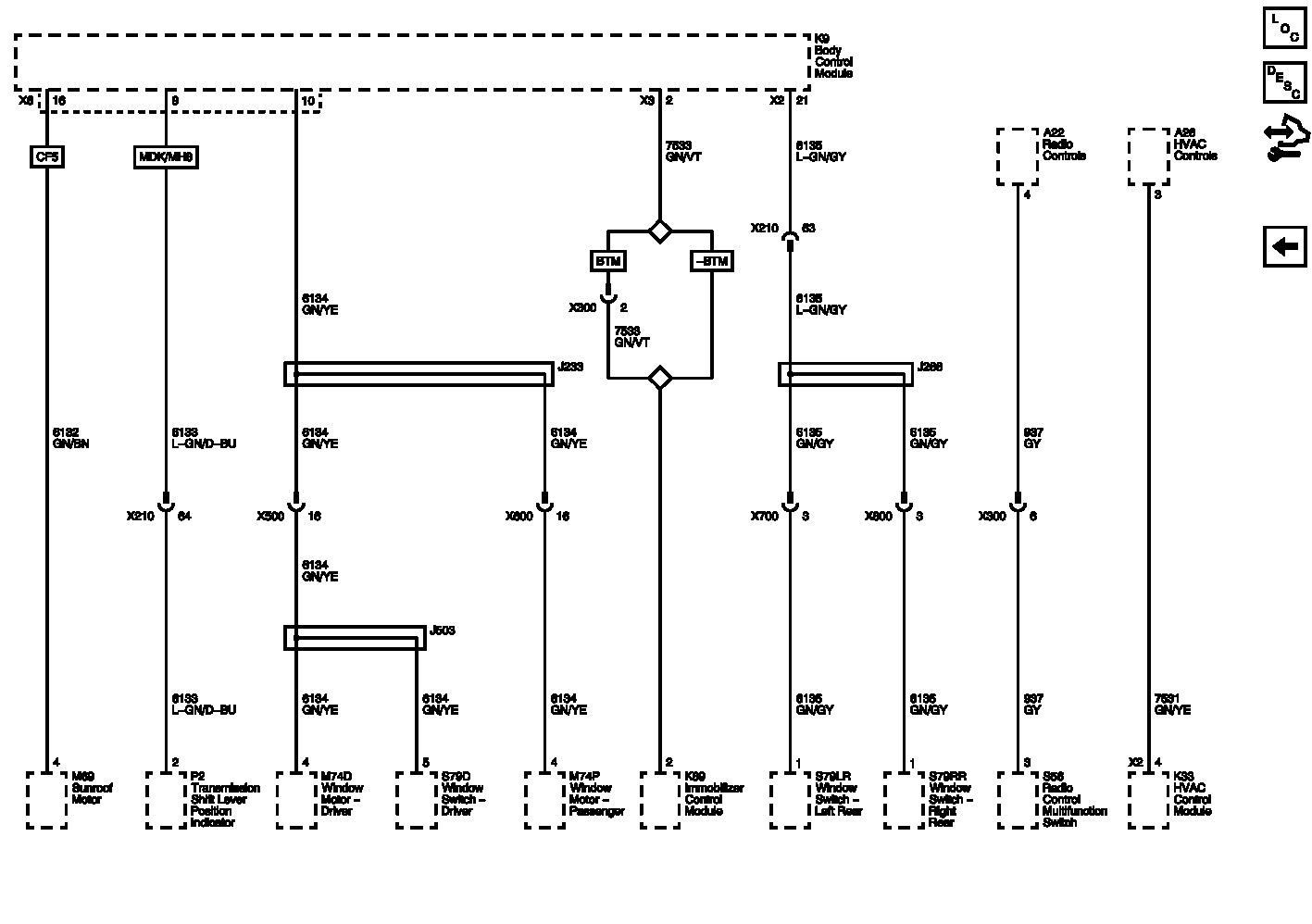

Fig 1: Linear Interconnect Network Wiring Schematics

GM2611725

Courtesy of GENERAL MOTORS COMPANY
