Power, Ground and Serial Data Wiring Schematics

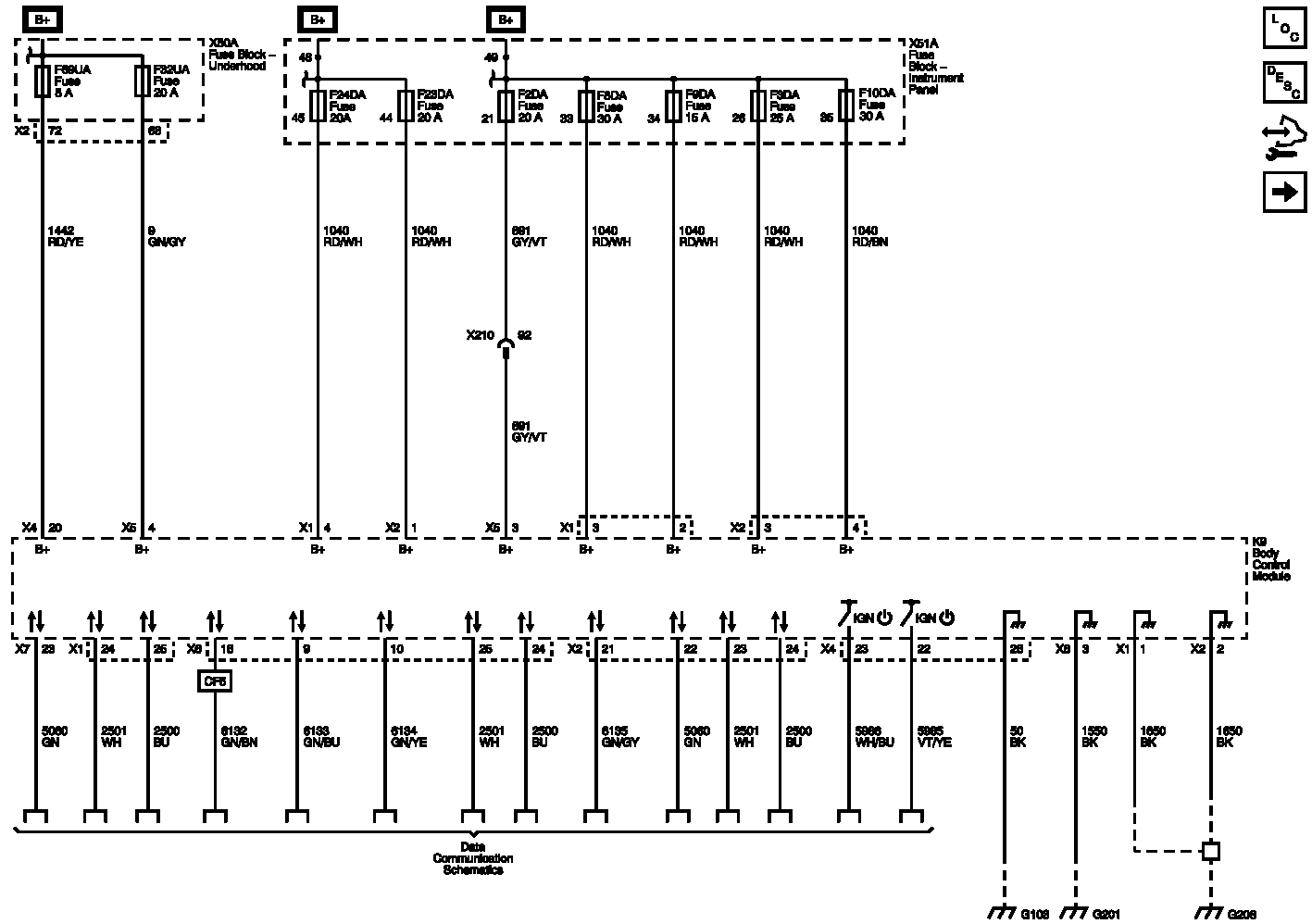

Fig 1: Power, Ground and Serial Data Wiring Schematics

GM2611726

Courtesy of GENERAL MOTORS COMPANY
