Fuel Tank Pressure Sensor Replacement (NU6)

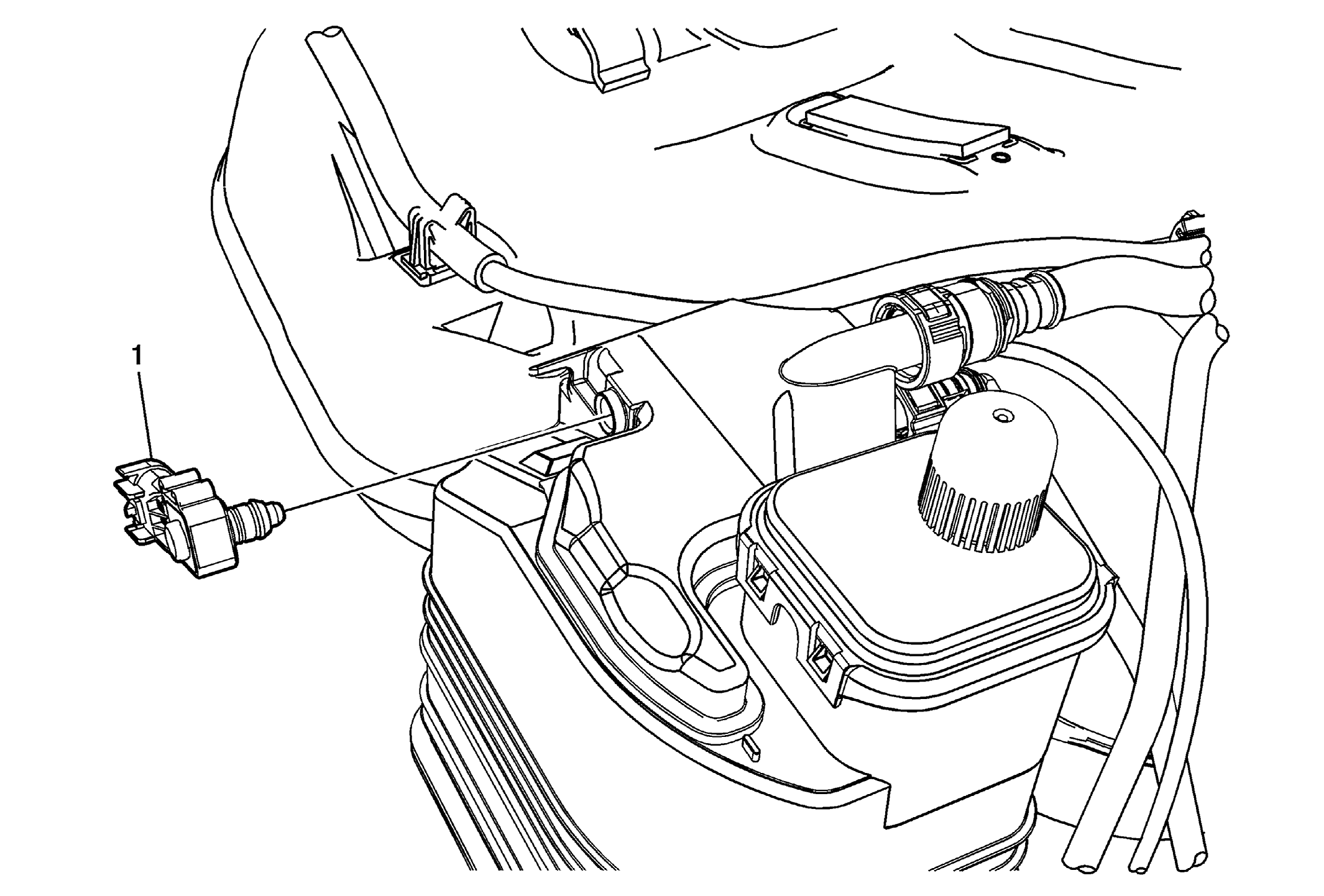

Fig 1: Fuel Tank Pressure Sensor (NT7)
GM2205647Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Pressure Sensor Replacement (NU6)

Callout Component Name
Preliminary Procedure
Remove the fuel tank. Refer to Fuel Tank Replacement .
1 Fuel Tank Pressure Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tab.
